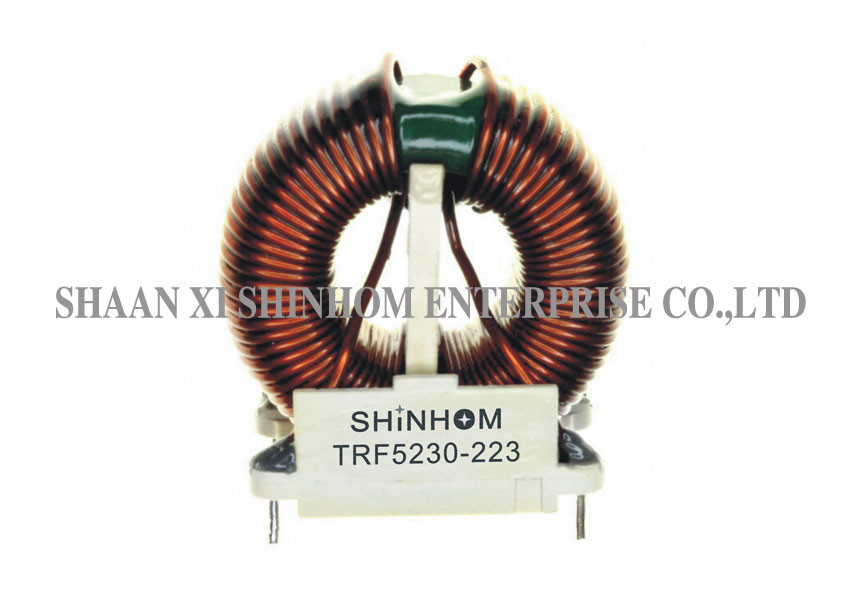

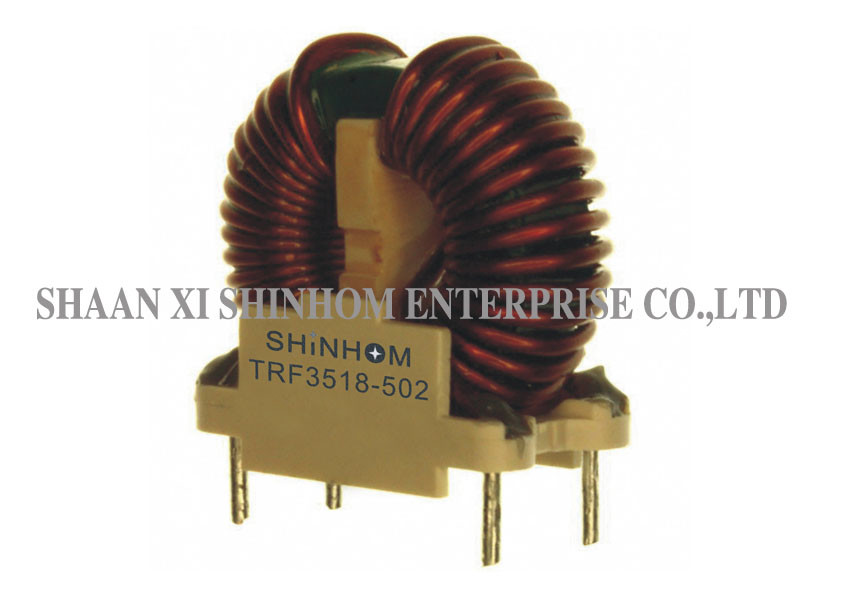

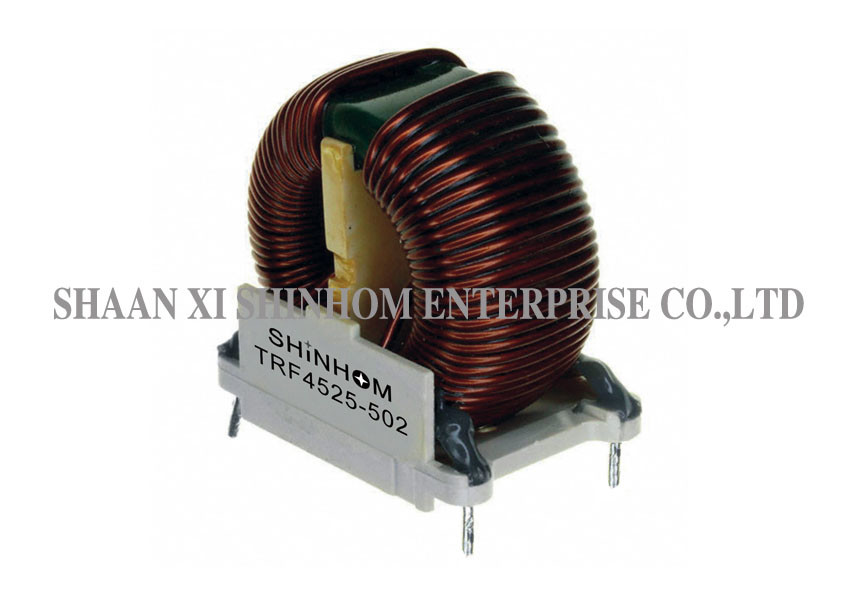

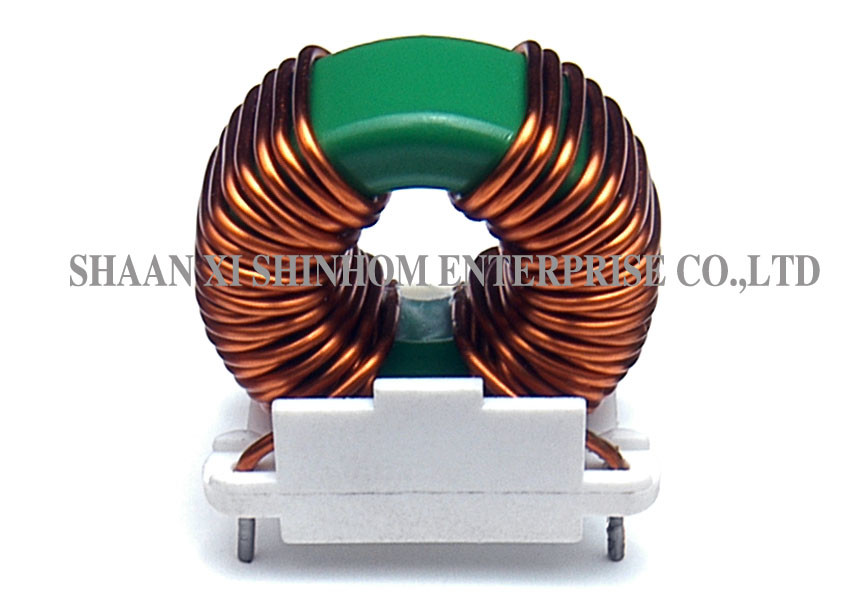

Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification

Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification
Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification

Large Image :  Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detailed Product Description
Winding: Common Mode Current: Up To 18A
Nature Of Operation: Choke Coil Transport Package: Carton/Tube
Specification: RoHS, ISO9001 Test Frequency: 10KHz
High Light:

common mode toroidal chokes

,

common mode power line choke

Low Loss Toroidal Common Mode Choke /Toroidal Core Power Inductor/Magnetic Inductors



Features:
1. Separated windings for minimum interwinding capacitance
2. Single layer windings for highest common mode impedance over the widest frequency range
3. Suitable for 50Hz to 500 KHz
4. Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
5. All materials used are UL94-VO recognized
6. Operating temperature: -55ºC to +105ºC
7. Available in either vertical or horizontal mount
8. Available in vertical header mount for ease in PCB assembly
9. Easy FR-4 board mounting Good vibration resistance

Application:
     Low Frequency AC Reactor, Solar Power System, Power Conditioning System,Wind Power System, Automatic Drive Machine, Induction Heater, Welding Machine, Paper Industries, RFI Suppression Choke, DC/DC converters, IP and OP devices.



Technical information:

1. Inductance tolerance in +50% -30%
2. Max operating voltage:250V at 40℃
3. IDC Max: rating AC/DC current A @40℃
4. Hi-Pot 2500Vac winding to winding 3S.
5. Inductance Testing: 10KHz 0.1V HP4284A
6. RDC:QuadTech 1880 Milliohmmeter
7. Surge current Max 10ms: 20X IDC
8. Operating temperature: -40℃ to +105℃
9. Storage Temperature: -40℃ to +105℃





Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification 0



Note: Product specifications can be customized.
