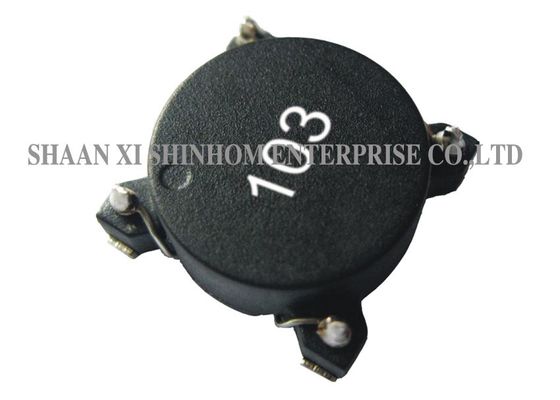

16.5*17.5mm Common Mode Toroidal Chokes Low Profile Epoxy Potting Compound

China 16.5*17.5mm Common Mode Toroidal Chokes Low Profile Epoxy Potting Compound supplier

Large Image :  16.5*17.5mm Common Mode Toroidal Chokes Low Profile Epoxy Potting Compound

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: STC07 Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Inductance: 1mH To 39mH Current Range: 0.3A To 2A
Specification: ISO/CQC/CE/ROHS Name: SMT Common Mode Inductor With Case
Working Voltage: 80V Potting Compound: Epoxy

STC07 Series surface mount toroidal coils and common mode toroidal choke,SMD Common mode inductor,pad size 16.5*17.5mm





FEATURES:

· Inductance:     1mH to 39mH

· Rated current:    0.3A to 2A

· Higher Frequency
· High Saturation Material
· Low EMI Radiation
· Pick and PLace
· Low DC Resistance

· Operating temperature:-40℃ to +125℃
· Storage Temperature: -55℃ to +125℃

· Inductance measure at 100KHz 0.1VRms.
· Insulation Resistance: 100Vdc 1KMΩmin.



COMMON APPLICATIONS:

· Electronic Appliances
· DC - DC Conversion (Paraller Mode)
· Isolation/Coupling(Transformer)
· Input Filter(Serial Mode)
· EMI/RFI Suppression



16.5*17.5mm Common Mode Toroidal Chokes Low Profile Epoxy Potting Compound

Max of 35% saturation on DC bias applied




Note: Product specifications can be customized.
