Surface Mount Common Mode Choke , Common Mode Toroidal Chokes 200uH - 20mH

China Surface Mount Common Mode Choke , Common Mode Toroidal Chokes 200uH - 20mH supplier

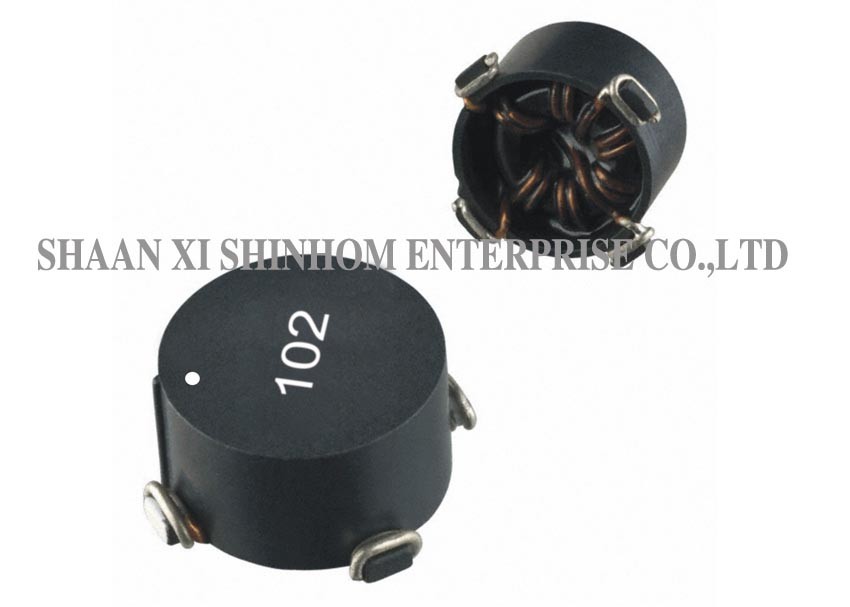

Large Image :  Surface Mount Common Mode Choke , Common Mode Toroidal Chokes 200uH - 20mH

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: STC08 Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Type: SMT Choke Inductor Working Frequency: High Frequency
Structure Of Winding: Multilayer Coil Turns Ratio: 1:1
Operating Temperature: -40℃ To +125℃ Storage Temperature: -55℃ To +125℃

STC08 Series surface mount toroidal coils and common mode toroidal choke,200uH to 20mH smd common mode inductor



FEATURES:

· Inductance range: 200uH to 20mH

· Current range:   1A to 7A

· DCR:  8mΩ to 250mΩ
· High Saturation Material
· Low EMI Radiation
· Pick and PLace
· Low DC Resistance



APPLICATIONS:

        Electronic Appliances,DC - DC Conversion (Paraller Mode),Isolation/Coupling(Transformer),Input Filter(Serial Mode) and EMI/RFI Suppression etc.



TECHNICAL INFORMATION:

Inductance measure at 100KHz 0.1VRms.
Insulation Resistance: 100Vdc 1KMΩmin.
RDC:QuadTech 1880 Milliohmmeter
Operating temperature:-40℃ to +125℃
Storage Temperature: -55℃ to +125℃
Different package available per special request
Max of 35% saturation on DC bias applied



Surface Mount Common Mode Choke , Common Mode Toroidal Chokes 200uH - 20mH



Note: Product specifications can be customized.
