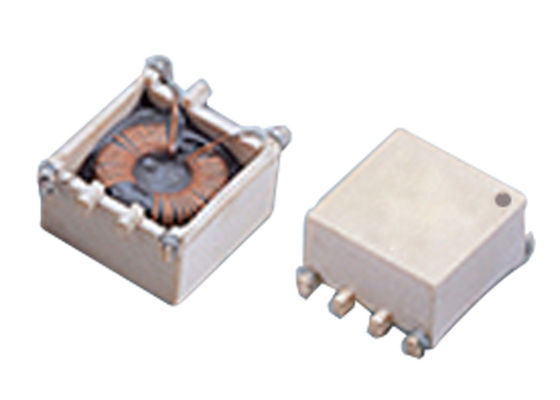

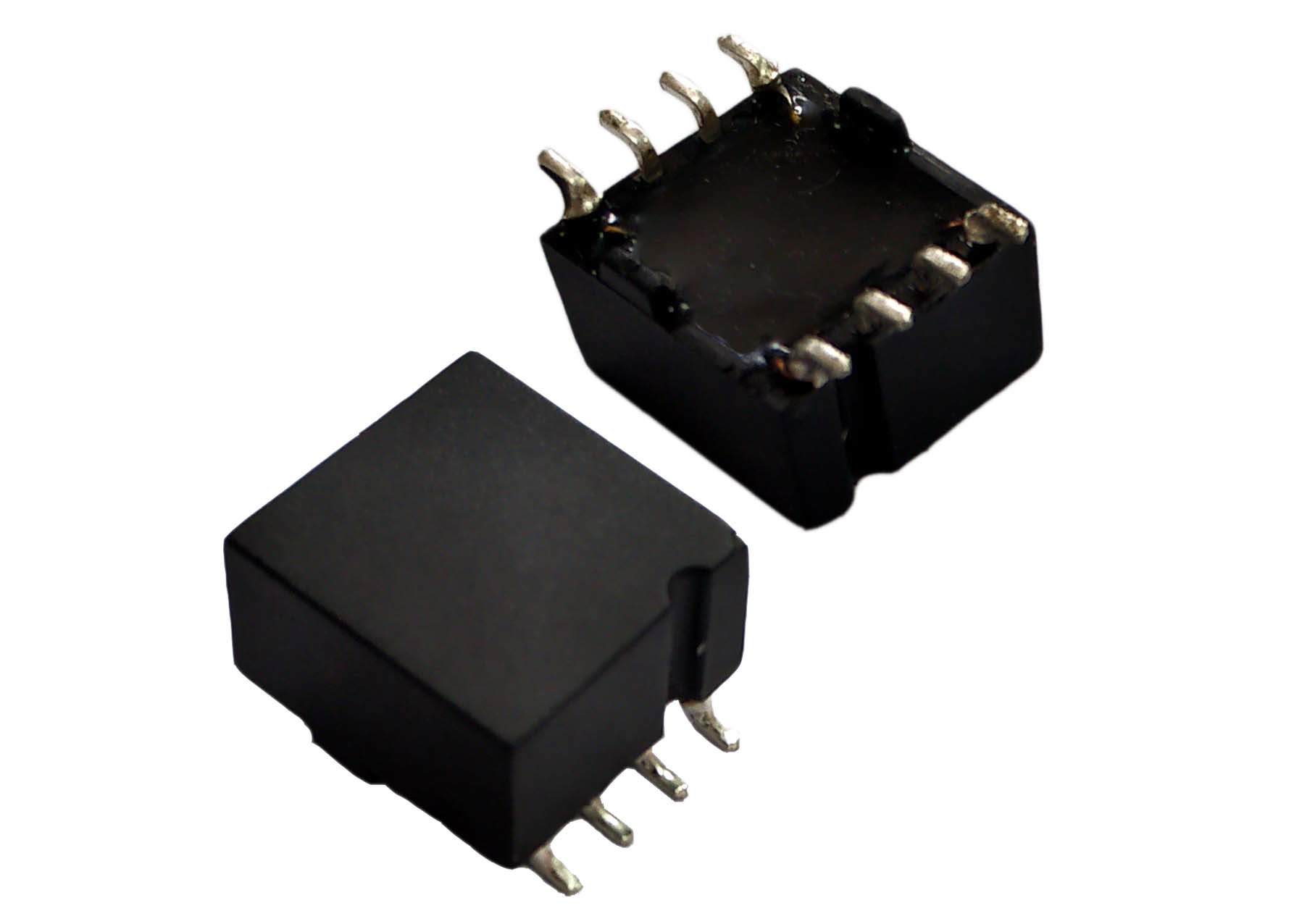

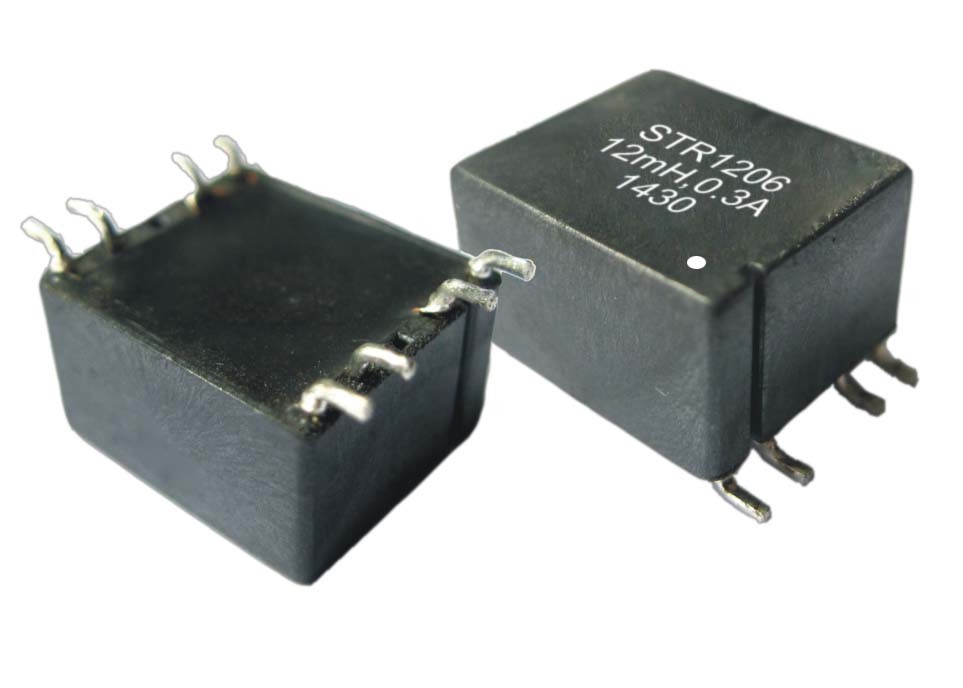

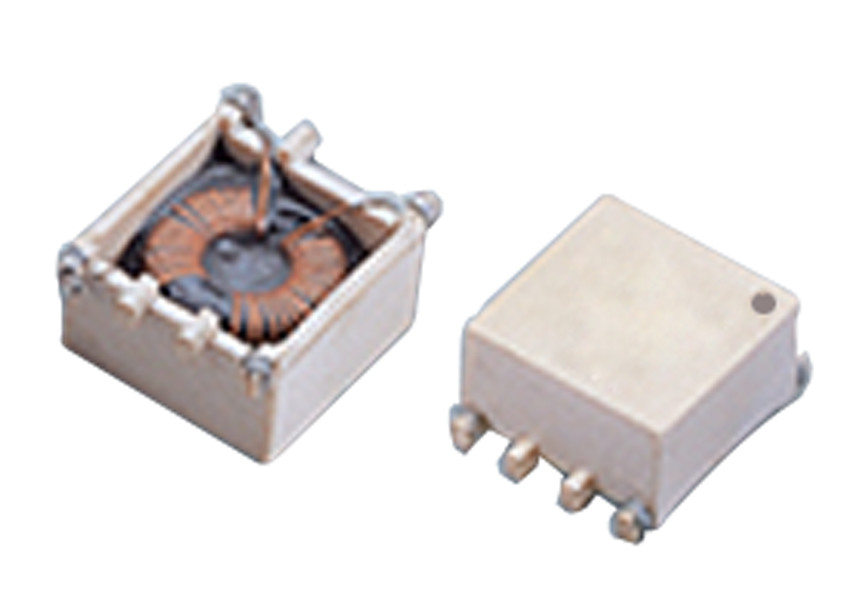

SMD Common Mode Choke Coil Low Profile With Silicone Potting Compound

China SMD Common Mode Choke Coil Low Profile With Silicone Potting Compound supplier
SMD Common Mode Choke Coil Low Profile With Silicone Potting Compound supplier SMD Common Mode Choke Coil Low Profile With Silicone Potting Compound supplier

Large Image :  SMD Common Mode Choke Coil Low Profile With Silicone Potting Compound

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: STR1206 Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Inductance: 1.1mH To 12mH Current Range: 0.3A To 2.0A
Potting Compound: Silicone Pad Size: 13.5*17.0mm
Tolerance: 25% Type: Choke Inductor

STR1206 Series common mode inductor,SMD Common mode choke coil with silicone Potting,Inductance 1.1mH to 12mH



FEATURES:

1. High frequency
2. Low magnetic leakage
3. Useful various power coversion and line filter application
4. Low radiation noise based on toroidal construction
5. Various material available to meet different frequency requirements.
6. Special specifications available upon request
7. Primary competitive advantage: Country of region; small order accepted ;Experienced technical staff ; Pass ISO ,RoHs,UL;Standard        Packing



APPLICATIONS:

1. Switching power output and smoothing circuits
2. Used as choke coil for high frequency SMPs
3. Countermeasure against spike ripples
4. EMI/RFI filters
5. DC/DC converters
6. IP and OP devices



TECHNICAL INFORMATION:

1. IDC Max:Determined when superimposed
2. Testing: (Equivalent acceptable) lnductance:HP4284A
3. RDC:QuadTech 1880 Milliohmmeter
4. Operating temperature: -40℃ to +105℃
5. Storage Temperature: -40℃ to +105℃



SMD Common Mode Choke Coil Low Profile With Silicone Potting Compound


Note: Product specifications can be customized.
