Magnetic Toroidal Power Inductor High Reliability Excellent Mechanical Strength

China Magnetic Toroidal Power Inductor High Reliability Excellent Mechanical Strength supplier
Magnetic Toroidal Power Inductor High Reliability Excellent Mechanical Strength supplier Magnetic Toroidal Power Inductor High Reliability Excellent Mechanical Strength supplier Magnetic Toroidal Power Inductor High Reliability Excellent Mechanical Strength supplier Magnetic Toroidal Power Inductor High Reliability Excellent Mechanical Strength supplier Magnetic Toroidal Power Inductor High Reliability Excellent Mechanical Strength supplier

Large Image :  Magnetic Toroidal Power Inductor High Reliability Excellent Mechanical Strength

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS

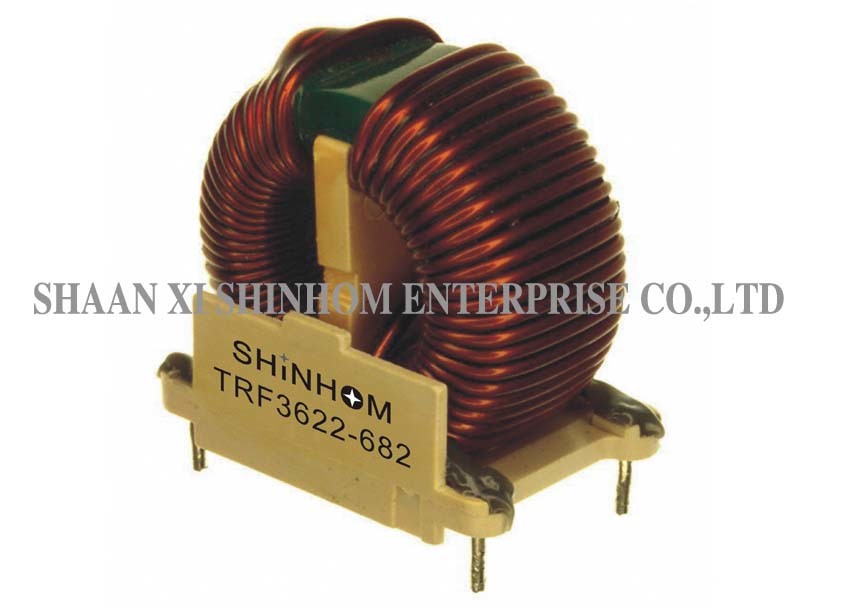

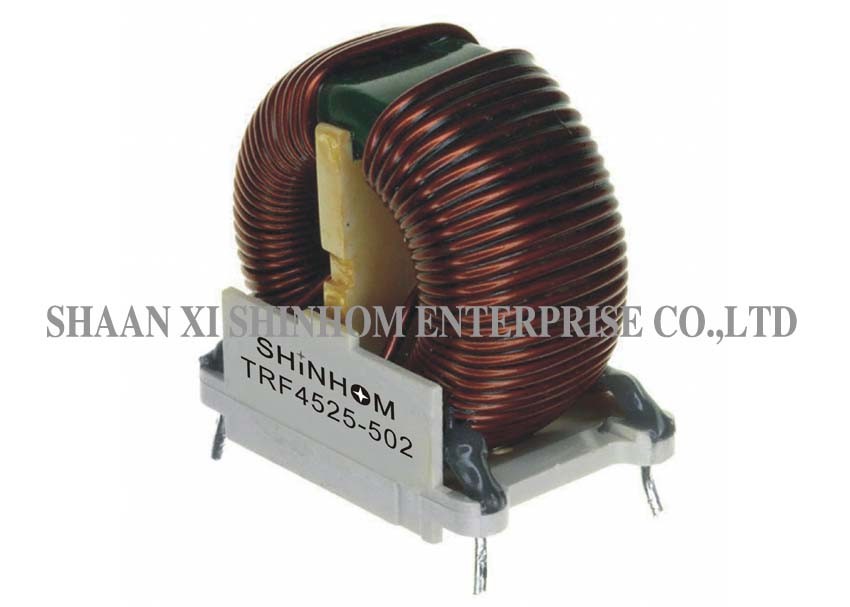

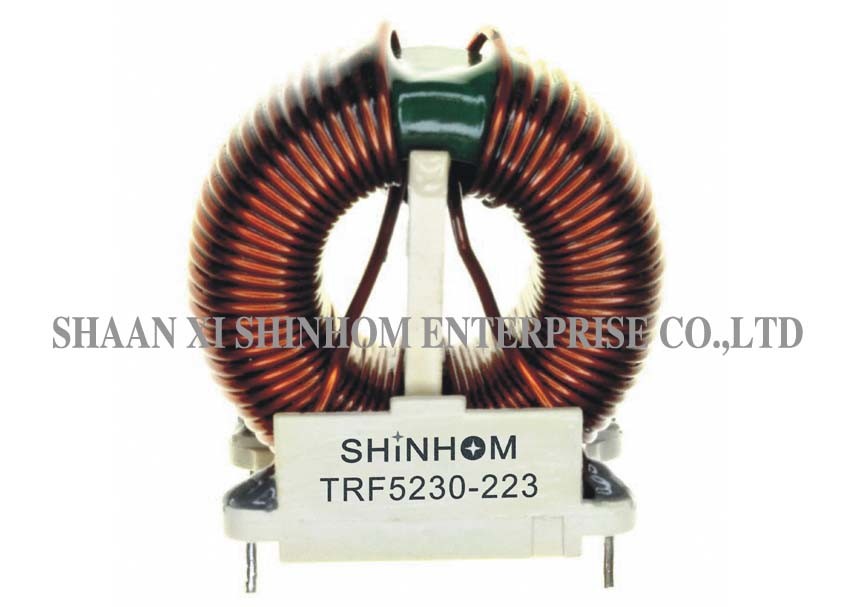

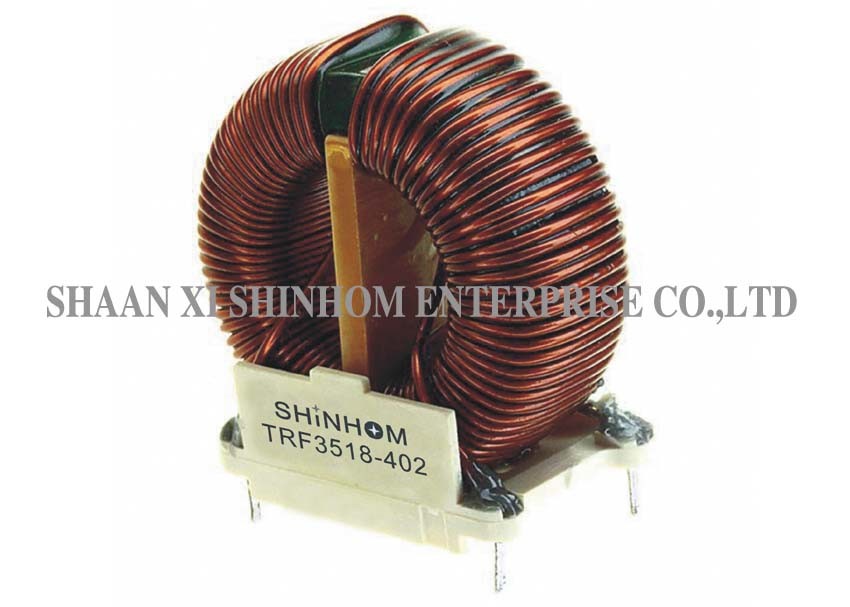

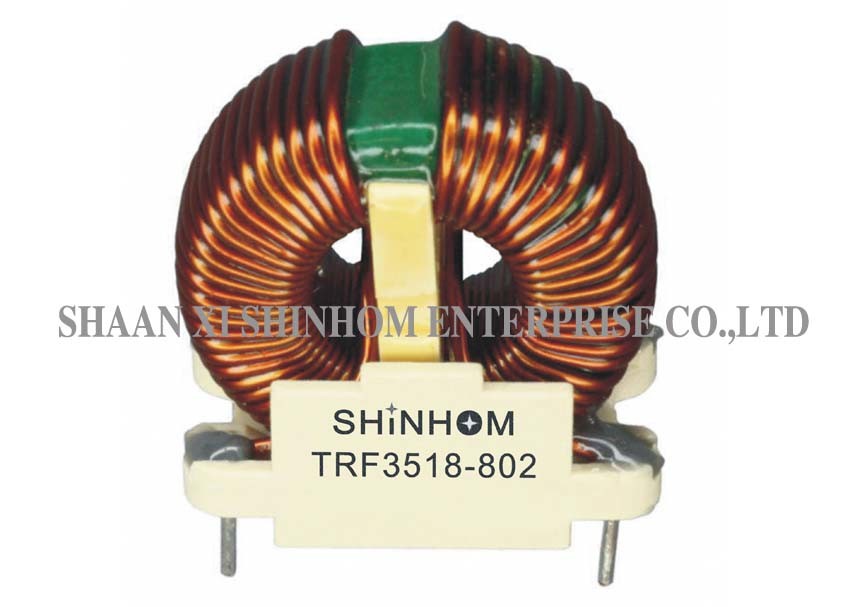

Model Number: TRF3518/3622/4525/5230 Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Inductance: 1mH To 120mH Current Range: 1A To 18A
Turns Ratio: 1:1 Structure Of Magnetizer: Ferrite Coil
Type: Choke Inductor Operating Voltage: 250V

TRF Series High Frequency Toroidal Common Mode Choke /Toroidal Core Power Inductor/Magnetic Inductors, UL, China Factory



FEATURES:

· 1.5A to 18A ratings
· 1mH to 120mH dual chokes
· Excellent Mechanical Strength
· 100KHz to 3MHz common mode resonance
· High Reliability and variant PCB-mount housing
· Low resistance and temperature rise



COMMON APPLICATIONS:

· DC/DC, AC/DC line noise suppression
· Communication System
· Automotive Systems
· LCD/PDPTelevisions
· Computer Peripheral Equipment It accord with the standards of FCC VCCI CISPR FTZ,etc,
  eliminating of electromagnetic noise of power and signal circuit.



TECHNICAL INFORMATION:

·Inductance tolerance in +50% -30%
·Max operating voltage:250V at 40℃
·IDC Max: rating AC/DC current A @40℃
·Hi-Pot 1500Vac winding to winding 3S.
·Inductance Testing: 10KHz 0.1V HP4284A
·RDC:QuadTech 1880 Milliohmmeter
·Surge current Max 10ms: 20X IDC
·Operating temperature: -40℃ to +105℃
·Storage Temperature: -40℃℃ to +105℃℃
·Resistance to soldering heat:260℃ for 10 seconds



Magnetic Toroidal Power Inductor High Reliability Excellent Mechanical Strength

Note: Product specifications can be customized.
