High Sensitivity Current Sense Transformer , Toroidal Current Transformer

China High Sensitivity Current Sense Transformer , Toroidal Current Transformer supplier
High Sensitivity Current Sense Transformer , Toroidal Current Transformer supplier High Sensitivity Current Sense Transformer , Toroidal Current Transformer supplier High Sensitivity Current Sense Transformer , Toroidal Current Transformer supplier High Sensitivity Current Sense Transformer , Toroidal Current Transformer supplier

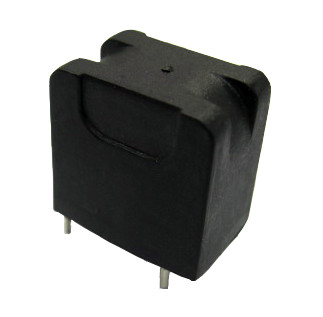

Large Image :  High Sensitivity Current Sense Transformer , Toroidal Current Transformer

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACST014-016 Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Contact Now
Detailed Product Description
Turns: 1:1000,1:2000,1:2500,1:3000 Input: 5-10A
Output: 1-5mA Installation: PCB Mounting
Frequency Range: 20Hz~500Hz Insulation Resistance: 4000V,1mA,60S

ACST014-016 Series High-frequency Current Transformers with Up to 10A Maximum Current input



FEATURES:

  1. Low profile,directly to PCB.
  2. PBT 94V0 Case burn-resistant epoxy resin,stable.
  3. Toroid high frequency current transformer
  4. Current range: up to 10A maximum
  5. Turns ratio: 1:1000,1:2000,1:2500,1:3000

APPLICATIONS:

  1. Switching power output and smoothing circuits
  2. Used as choke coil for high frequency SMPs
  3. Countermeasure against spike ripples
  4. EMI/RFI filters
  5. DC/DC converters
  6. IP and OP devices

TECHNICAL INFORMATION:

  1. Working Frequency range: 20Hz~500Hz
  2. Insulation resistance: 500V DC >100MΩ
  3. Hi-Pot : 4000V 1mA 60S
  4. Temperature range: -25℃ to +85℃
  5. Storage Temperature: -40℃℃ to +105℃℃
  6. Resistance to soldering heat:260℃ for 10 seconds
  7. Marking: Part number and date code

High Sensitivity Current Sense Transformer , Toroidal Current Transformer




Note: Product specifications can be customized.
