High Precision PCB Mount Current Transformer 15A Maximum 10kHz To 200kHz

China High Precision PCB Mount Current Transformer 15A Maximum 10kHz To 200kHz supplier
High Precision PCB Mount Current Transformer 15A Maximum 10kHz To 200kHz supplier High Precision PCB Mount Current Transformer 15A Maximum 10kHz To 200kHz supplier High Precision PCB Mount Current Transformer 15A Maximum 10kHz To 200kHz supplier High Precision PCB Mount Current Transformer 15A Maximum 10kHz To 200kHz supplier High Precision PCB Mount Current Transformer 15A Maximum 10kHz To 200kHz supplier

Large Image :  High Precision PCB Mount Current Transformer 15A Maximum 10kHz To 200kHz

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACST-2 Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Turns: 1:50,1:100,1:200,1:300 Frequency Range: 10kHz To 200kHz
Specification: ROHS, CE, SGS Isolation Voltage: 3750V
Encapsulation: Epoxy Application: Accurate Measurement Of Current And Power

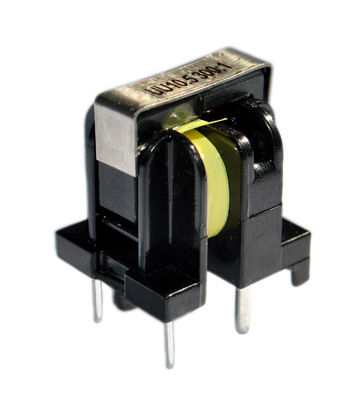

ACST-2 Series PCB Mount High Precision Current Transformers with Up to 15A Maximum Current Range Available



FEATURES:

  • Meets IEC950 insulation requirements
  • 3750Vrms primary to secondary breakdown voltage
  • Frequency range 10kHz to 200kHz
  • Current range: up to 15A maximum
  • Turns ratio: 1:50, 1:100, 1:200, 1:300 available
  • Operating temperature: -40 to 85°C



TECHNICAL INFORMATION:

  • These current sense transformers have a 1 turn primary winding, secondary turns (Ns) as indicated in    the table,and a 130℃ insulation system.
  • The reference values are for unipolar operation, 50kHz,40% duty factor, and an estimated 55℃  temperature rise.
  • The maximum useable peak sense current (IPK) depends on temperature rise or core saturation, which  should be evaluated for the operating conditions.
  • These Current Sense Transformers are recommended for switch mode power supply applications,  unipolar or bipolar,operating at frequencies from10kHz to 200kHz.
  • The scale factor (KVI) is proportional to the terminating resistor(RT) and isequal to 1 volt/amp when  RT=NS.
  • The secondary inductance (Ls) is measured at 15kHz and 0.5V for ACST-2050,1V for ACST-2100, 2V for  ACST-2200 and 3V for ACST-2300.







High Precision PCB Mount Current Transformer 15A Maximum 10kHz To 200kHz





Notes: Product specifications can be customized
