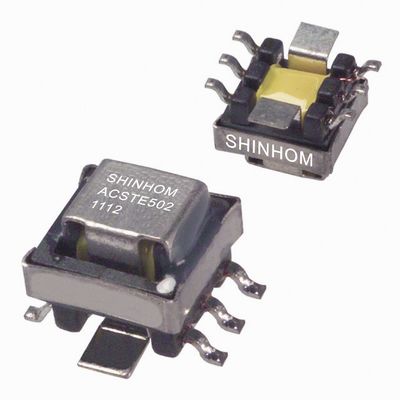

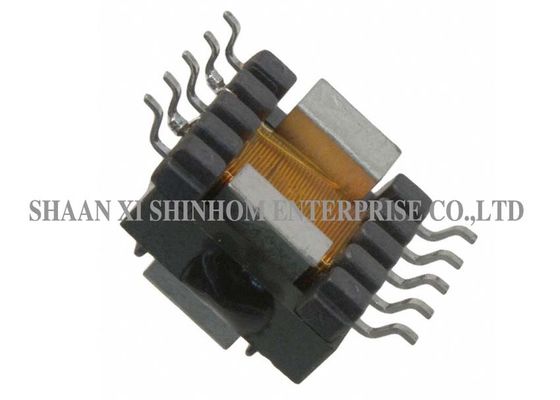

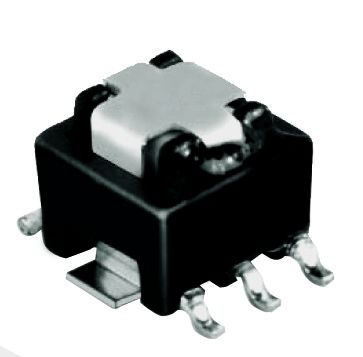

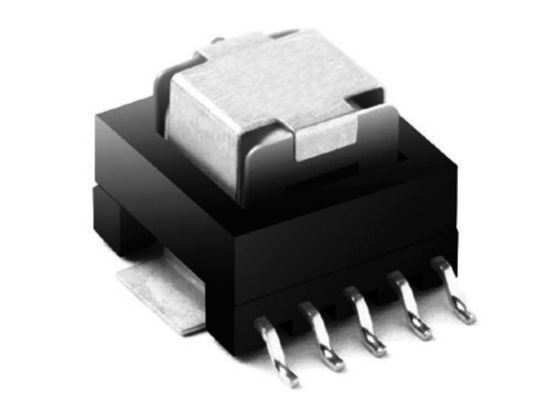

SMD Current Sense Transformer 35A Input 50KHz To 500KHz For DC/DC Converter

SMD Current Sense Transformer 35A Input 50KHz To 500KHz For DC/DC Converter
SMD Current Sense Transformer 35A Input 50KHz To 500KHz For DC/DC Converter SMD Current Sense Transformer 35A Input 50KHz To 500KHz For DC/DC Converter SMD Current Sense Transformer 35A Input 50KHz To 500KHz For DC/DC Converter SMD Current Sense Transformer 35A Input 50KHz To 500KHz For DC/DC Converter

Large Image :  SMD Current Sense Transformer 35A Input 50KHz To 500KHz For DC/DC Converter Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACSTE12 Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Turns Ratio: 1:50,1:100,1:200 Frequency Range: 50KHz To 500KHz
Input Current: 0-35A Installation: SMD
Temperature Range: -40℃ To +125℃ Storage Temperature: -40℃ To +125℃
High Light:

rogowski coil current transformer

,

high frequency current transformer

ACSTE12 Series SMD Current Sensor Transformer with 35A Input Current, 1KHz to 1MHz Frequency, for DC/DC Converter



FEATURES:

  1. Height: 10mm Max
  2. Footprint: 19.9mm X 15.0mm Max
  3. Frequency range: 1KHz to 500KHz
  4. Current rating: up to 35A
  5. Low profile SMD current transformers
  6. Full selection of turns ratios
  7. EE4.2 EE5 EE8.3 EF12.6 available
  8. Suitable for pick and place applications
  9. Withstands solder reflow



APPLICATIONS:

  1. AC energy Meter Power transducer RTU
  2. Protection current transformer
  3. AC kilowatt hour meter
  4. Electronical monitoring system
  5. DC/DC converters
  6. AC/DC converters

TECHNICAL INFORMATION:

  1. Insulation resistance: 500V DC >100MΩ
  2. Hi-Pot : 1500V 1mA 60S
  3. Temperature range: -40℃ to +125℃
  4. Storage Temperature: -40℃ to +125℃
  5. Resistance to soldering heat:260℃ for 10 seconds
  6. Marking: Part number and date code

SMD Current Sense Transformer 35A Input 50KHz To 500KHz For DC/DC Converter 0

Notes: Product specifications can be customized
