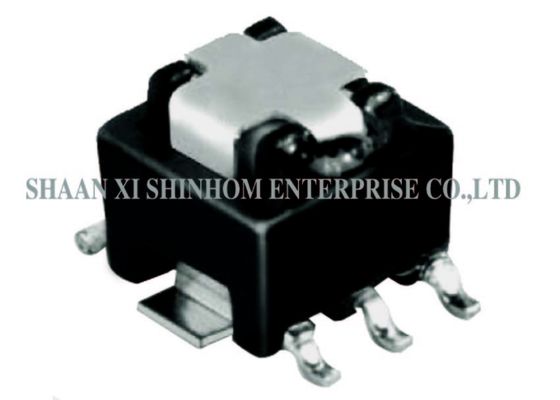

Ferrite Core High Frequency Current Transformer SMD Installation Various Types

China Ferrite Core High Frequency Current Transformer SMD Installation Various Types supplier
Ferrite Core High Frequency Current Transformer SMD Installation Various Types supplier Ferrite Core High Frequency Current Transformer SMD Installation Various Types supplier Ferrite Core High Frequency Current Transformer SMD Installation Various Types supplier

Large Image :  Ferrite Core High Frequency Current Transformer SMD Installation Various Types

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACSTE50 Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Turns: 20 To 125Ts Installation: SMD
Insulation Voltage: 2000Vac Application: DC-DC Converter
Material: Ferrite Core, Copper Wire Theory: Current Sensor

ACSTE50 Series SMD High Frequency Current Transformer, Various Types are Available,Current up to 50A



FEATURES:

  • High frequency current transformer
  • Low-profile
  • Current: up to 50A
  • High frequency (1kHz to 1MHz)
  • Strong anti-magnetic disturbance epoxy



APPLICATIONS:

  • AC energy Meter Power transducer RTU
  • Protection current transformer
  • AC kilowatt hour meter
  • Electronical monitoring system



TECHNICAL INFORMATION:

  • Working Frequency range:50KHz~1MHz
  • Testing Frequency: 10 KHz 0.1Vrms
  • Hi-pot:2000VAC,Primary to Secondary
  • Maximum Sensing Current: 20A
  • All seconday measurements are in pins 1-3
  • Soldering menthods: Wave, Reflow





Ferrite Core High Frequency Current Transformer SMD Installation Various Types





Notes: Product specifications can be customized
