Customizable Split Core Current Transformer , Clamp Type Current Transformer

China Customizable Split Core Current Transformer , Clamp Type Current Transformer supplier
Customizable Split Core Current Transformer , Clamp Type Current Transformer supplier Customizable Split Core Current Transformer , Clamp Type Current Transformer supplier Customizable Split Core Current Transformer , Clamp Type Current Transformer supplier Customizable Split Core Current Transformer , Clamp Type Current Transformer supplier

Large Image :  Customizable Split Core Current Transformer , Clamp Type Current Transformer

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK691/2 Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Contact Now
Detailed Product Description
Input: 0A-3000A Output: 0-10V(AC)or 0-5A
Frequency: 50-400KHz Turns: 1000:1, 2000:1, 2500:1, 4000:1
Class: 0.1, 0.2 ,0.5 Customizable: Yes

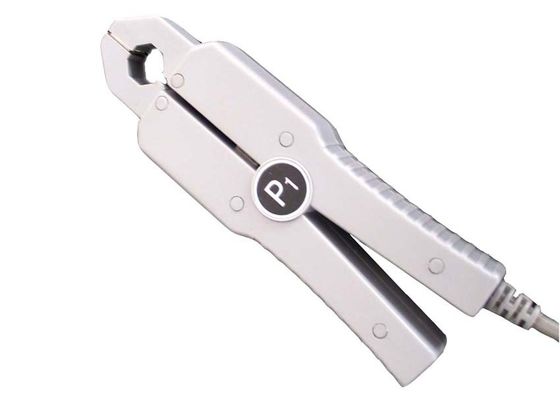

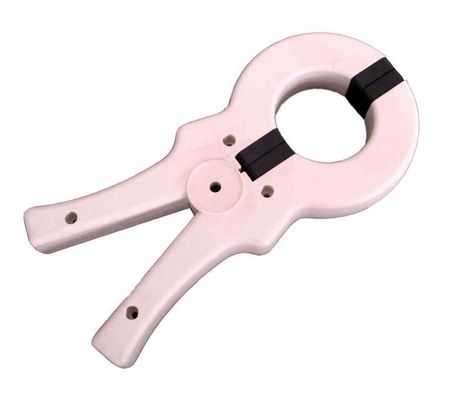

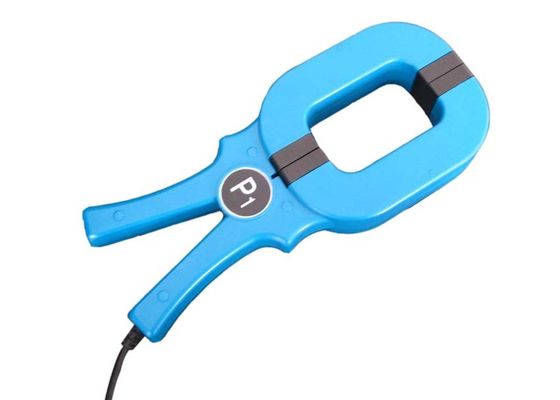

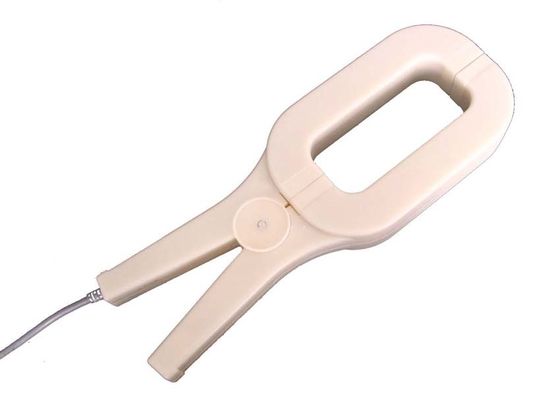

SCTK691/2 Series Clamp-on Split Core Current Transformer with Current Range 100mA to 3000A Single-phase Current Test



        SCTK691/2 series retro-fit (split-core) current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. It can save time and the installation costs.



Features:

  1. Turns ratio:    1000:1,  2000:1,  2500:1,  4000:1
  2. Test hole: 8, 12, 20, 25,50, 60mm series clamp on split core AC current transformer
  3. Test range: 0A - 3000A AC input, output of 0-10V(AC)or 0-5A
  4. Test precision class: 0.1, 0.2 ,0.5
  5. Clamp CT or called Current Transformers are high precision, high sensitivity, versatility, and low phase shift to theprobe for a good selection of application range of power measurement widely.
  6. Current clamp is portable AC current measuring device and the one-hand operating solution for temporary or long-term studies,with safety of handling and easiness of installation.

Applications:

  1. Current measurement, monitoring and protection for electrical wiring and equipment.
  2. Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-condition equipment and automation – control system.
  3. Current, power and energy monitoring device.
  4. Relay protection device.
  5. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.

Electrical Parameter

Frequency 50-400KHz
Rated Input 5-3000A
Measuring range 5%In-130%In
Rated Output 0-10V(AC)or 0-5A
Ratio ≤ ± 0.1%
Phase angle ≤ ±10min
Dielectric strength 3.0KV/1mA/1min
Insulation Resistance DC500V/100MΩmin



Mechanical Parameter

Case ABS /UL94-V0
Bobbin PBT
Core Silicon steel/Permalloy
Internal structure Screw
Construction Screw
Operating Temp -25℃~+75℃
Operating Humidity ≤85%
Output Connection 1015/22AWG Wire(twinsted wire) 2.5m





Type selection

P/N

Rated Input

(A)

Accuracy

Dimensions(mm)

(ID-L-W-H)

SCTK691A-008 0-20A 0.1,0.2,0.5 8.0-135.0-42.0-20.0
SCTK691A-013 0-100A 0.1,0.2,0.5 13.0-137.0-42.0-25.0
SCTK691A-020 5-250A 0.1,0.2,0.5 20.0-137.0-46.0-25.0
SCTK691A-050 100-1200A 0.1,0.2,0.5 50.0-215.0-104.0-27.0
SCTK692A-085 100-1500A 0.1,0.2,0.5 82.0*52.0-272.0-116.0-37.0
SCTK692A-125 100-3000A 0.1,0.2,0.5 125.0*52.0-327.0-116.0-37.0





Notes: Product specifications can be customized
