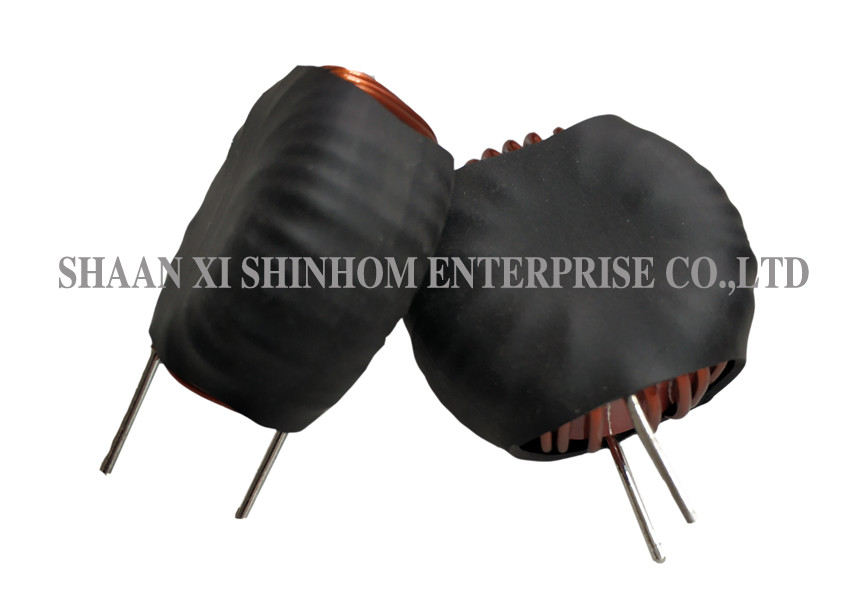

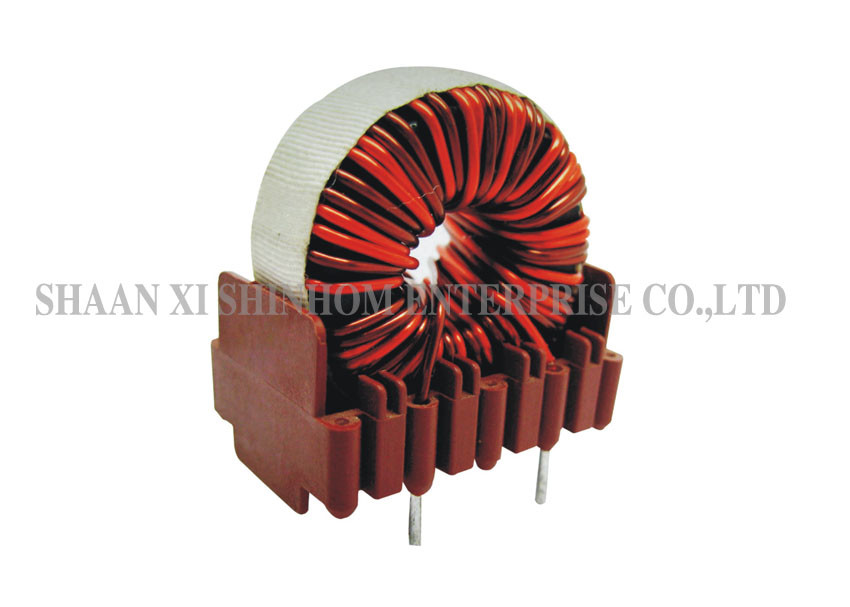

High Frequency Common Mode Choke , Toroidal Choke Coil Low Resistance

China High Frequency Common Mode Choke , Toroidal Choke Coil Low Resistance supplier
High Frequency Common Mode Choke , Toroidal Choke Coil Low Resistance supplier High Frequency Common Mode Choke , Toroidal Choke Coil Low Resistance supplier High Frequency Common Mode Choke , Toroidal Choke Coil Low Resistance supplier High Frequency Common Mode Choke , Toroidal Choke Coil Low Resistance supplier

Large Image :  High Frequency Common Mode Choke , Toroidal Choke Coil Low Resistance

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TR Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Inductance: 4.7uH To 20mH Rated Current: 0.2 To 30A
Outer Diameter: 18 - 50mm Core: Iron Or Ferrite
Inductor Value: Fixed Inductor Test Frequency: 1KHz

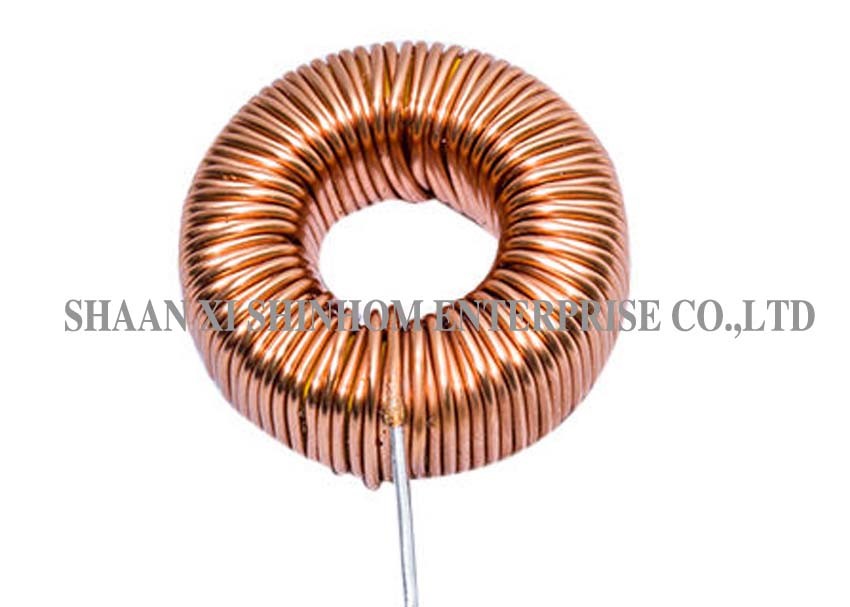

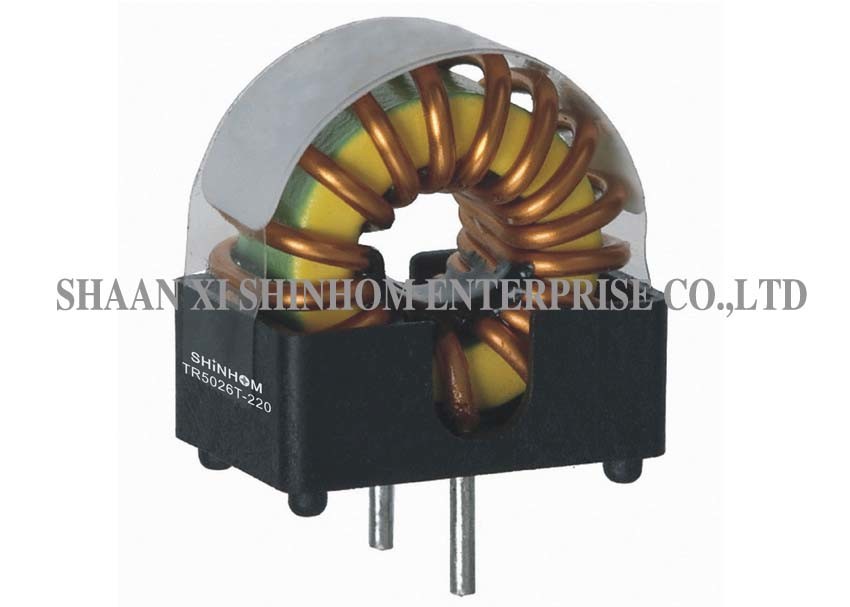

TR Series Toroidal choke coils, inductors for high frequency applications, Choke Power Inductors



Features:

  • High frequency and low loss
  • Toroidal inductor
  • For excellent EMI suppressor
  • Small profile
  • Large current
  • Low resistance
  • MPP, hi-flux, sendust/RF carbonyl, and iron power core
  • SMT and low profile available
  • RoHS compatible (Pb free) versions available
  • Good frequency characteristic



Application:

  • Widely applied in various switching power suppliers and high frequency electronic equipment
  • Power line filtering, EMI/RFI for switch mode power supplies



Specifications:

  • Rated voltage: AC/DC 250V
  • Withstand voltage level: AC 2KV, 1 minute
  • Insulation resistance: DC 500V, 100ohm, min
  • Insulation level: B (130℃)
  • Operating temperature range: -25℃ - 85℃
  • Minimum inductance range: 4.7uH-20mH 1kHz
  • Rated current range: 0.2-30A



Product Description:

Toroid core datas

COILFORMER DIMENSIONS (mm)

TYPE

OD

ID

H

MASS (G)

T3.0

3.05

1.27

1.27

0.04

T3.9

3.94

2.24

1.3

0.05

T3.9/2

3.94

2.24

2.0

0.07

T4.0

4.0

2.4

1.6

0.06

T5.8

5.84

3.05

1.52

0.1

T5.8/3

5.84

3.05

3.0

0.3

T6.3

6.3

3.8

2.5

0.2

T9.5

9.53

4.75

3.17

0.8

T10

10.0

6.0

4.0

0.9

T12.5

12.5

7.5

5.0

1.8

T13.3

13.3

8.3

5.0

1.8

T14

14.0

9.0

5.0

2.0

T15

15.0

10.4

5.3

2.4

T16

16.0

9.6

6.3

3.7

T17

17.0

10.7

6.8

4.4

T20/7

20.0

10.0

7.0

7.6

T22

22.1

13.7

6.35

6.8

T23/8

22.6

14.7

7.6

8.1

T23/9

22.6

14.7

9.2

9.8

T25/10

25.3

14.8

10.0

16

T25/12

25.3

14.8

12.0

19

T25/15

25.3

14.8

15.0

24

T25/20

25.3

14.8

20.0

33

T29

29.5

19.0

14.9

27

T30

30.5

20.0

12.5

25

T34/10

34.0

20.5

10.0

27

T34/12.5

34.0

20.5

12.5

33

T36

36.0

23.0

15.0

43

T40

40.0

24.0

16.0

61

T42

41.8

26.2

12.5

48

T50

50.0

30.0

20.0

118

T58

58.3

40.8

17.6

115

T100

102

65.8

15.0

330



We can provide SMD power inductor and many other inductors

High Frequency Common Mode Choke , Toroidal Choke Coil Low Resistance



Note: We have abtained RoHS, ISO9001 certificates. The good quality and low in price with high prestige attracted more customers. If you are interested in our products, please told us what kinds of products you need and more information on it. We can suuply samples according your requirments.

Contact Details
Shaanxi Shinhom Enterprise Co.,Ltd
