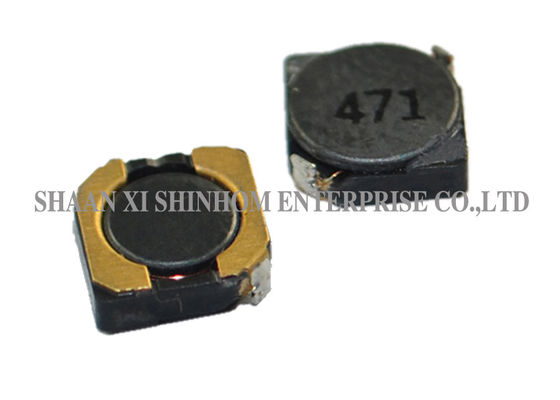

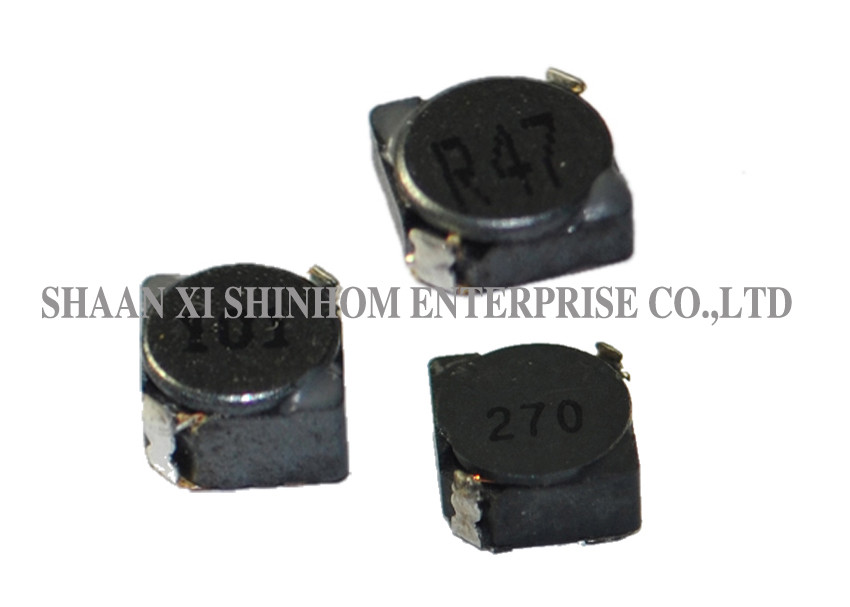

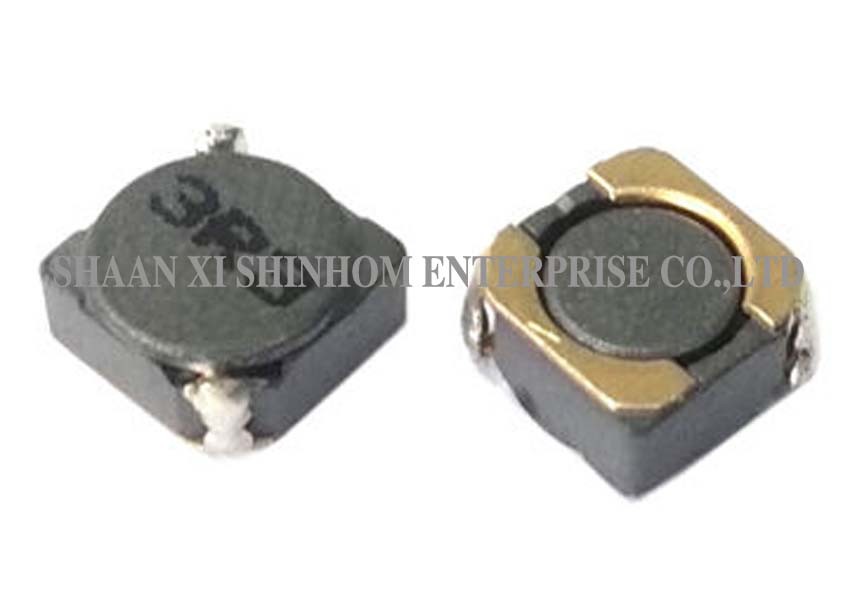

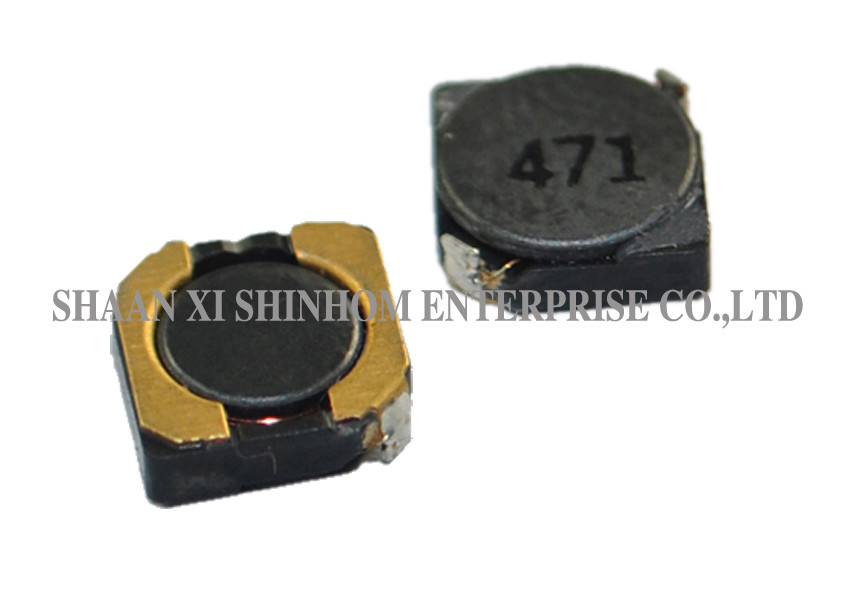

Square Profile 47uH Surface Mount Inductor Durable High Heat Resistance

Square Profile 47uH Surface Mount Inductor Durable High Heat Resistance
Square Profile 47uH Surface Mount Inductor Durable High Heat Resistance Square Profile 47uH Surface Mount Inductor Durable High Heat Resistance Square Profile 47uH Surface Mount Inductor Durable High Heat Resistance Square Profile 47uH Surface Mount Inductor Durable High Heat Resistance Square Profile 47uH Surface Mount Inductor Durable High Heat Resistance

Large Image :  Square Profile 47uH Surface Mount Inductor Durable High Heat Resistance Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDRH2D11/3D16 Series
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Inductance Range: 1uH To 47uH Inductor Value: Fixed Inductor
Current Range: 0.2A To 1.8A Installation: Surface Mount
Operating Temperature: -40℃ To +105℃ Storage Temperature: -40℃ To +105℃
High Light:

smd shielded power inductor

,

surface mount choke

SDRH2D11/3D16 Series Shielded surface mount power inductors,47uH SMD power inductor coil



FEATURES:

  • Large current up to 1.8A
  • Inductance range 1.0uH to 47uH
  • Magnetically Shielded Structure
  • Low DC Resistance
  • Low and square Profile
  • High heat resistance



APPLCATIONS:

  • VCRs, Notebook, DC/DC Converters
  • Video Digital Cameras
  • Communication System
  • Automotive Systems Power supplier
  • LCD PDP Televisions



TEST EQUIPMEN AND CONDITIONS:

  • Inductor Testing: HP4284A (Equivalent acceptable)
  • DCR:QuadTech 1880 Milliohmmeter
  • IDC Max current is decreased 10% against its initial value
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃

 Square Profile 47uH Surface Mount Inductor Durable High Heat Resistance 0

Note: Product specifications can be customized.Custom inductance values are available.
