Low DC Resistance SMD Power Choke 390uH Magnetically Shielded Structure

China Low DC Resistance SMD Power Choke 390uH Magnetically Shielded Structure supplier
Low DC Resistance SMD Power Choke 390uH Magnetically Shielded Structure supplier Low DC Resistance SMD Power Choke 390uH Magnetically Shielded Structure supplier Low DC Resistance SMD Power Choke 390uH Magnetically Shielded Structure supplier Low DC Resistance SMD Power Choke 390uH Magnetically Shielded Structure supplier

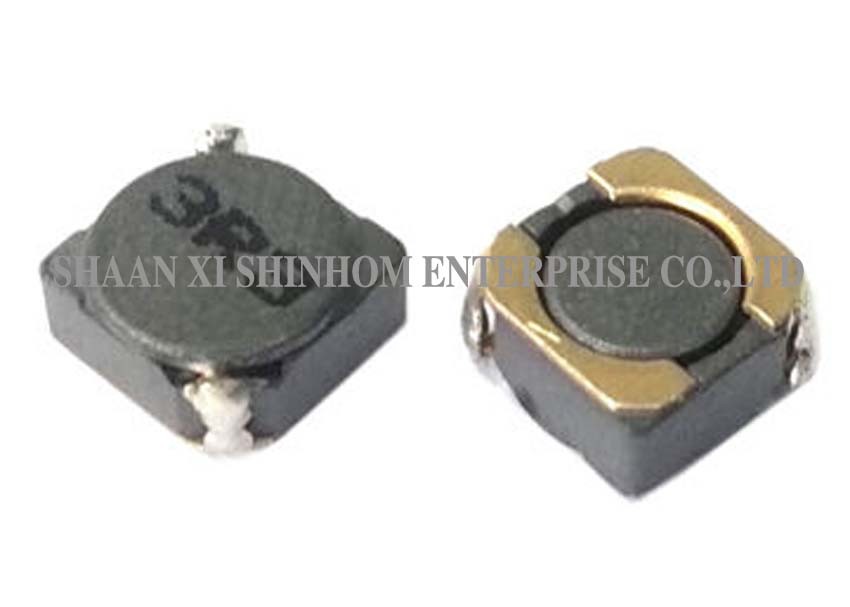

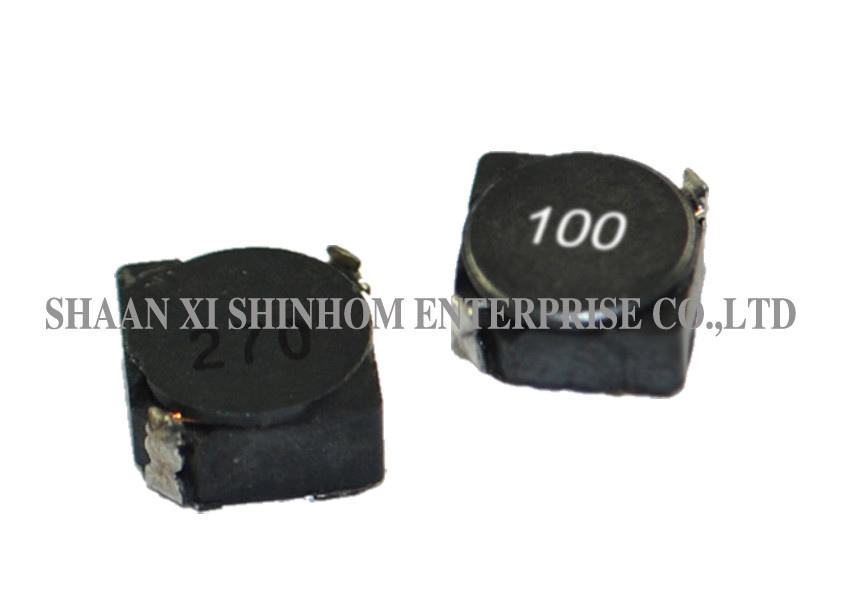

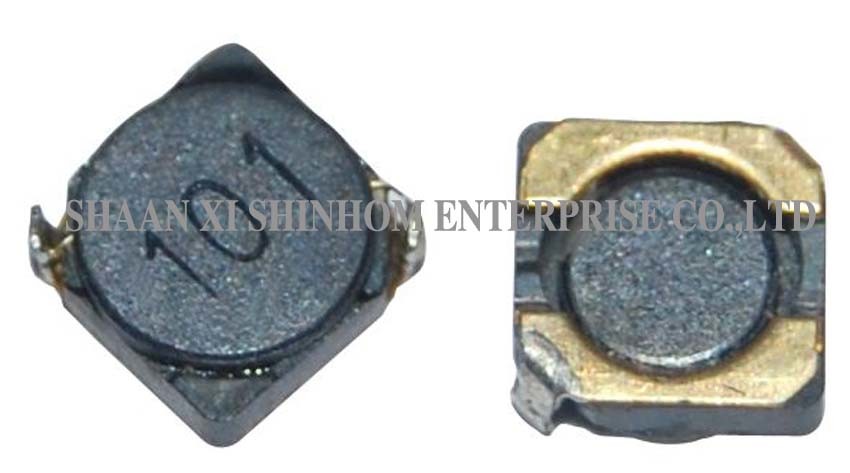

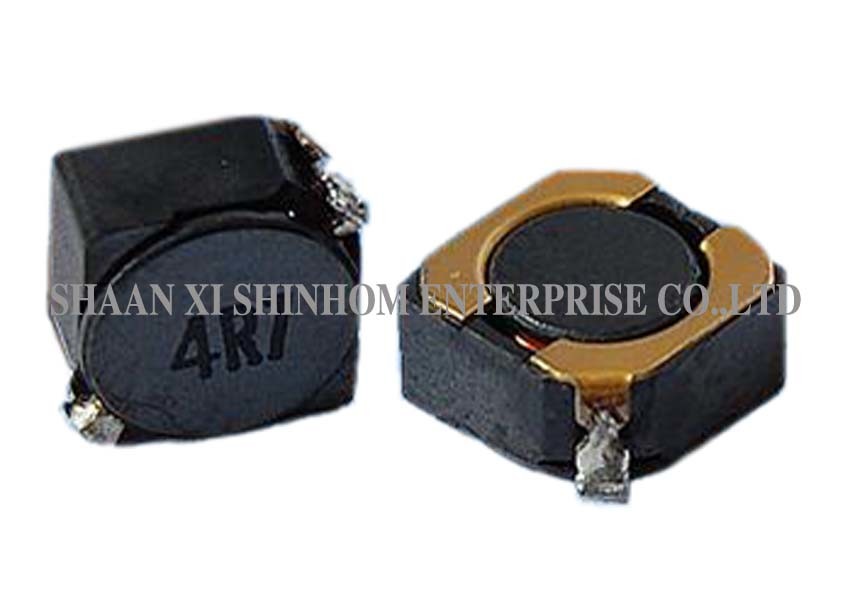

Large Image :  Low DC Resistance SMD Power Choke 390uH Magnetically Shielded Structure

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDRH4D18/4D28 Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Category: SMD Shielded Power Inductor Size: L*W=5.0*5.0mm
Test Frequency: 100KHz Installation: SMD
Specification: ROHS, ISO9001 Operating Temperature: -40℃ To +105℃

SDRH4D18/4D28 Series Shielded surface mount power inductors,390uH,Up to 2.56A current,Shielded inductor,SMD inductor



FEATURES:

· Magnetically Shielded Structure
· Low DC Resistance
· Large current up to 2.56A
· Excellent Mechanical Strength
· High Reliability and Excellent Solderability
· Low and square Profile
· High heat resistance

· VCRs, Notebook, DC/DC Converters
· Video Digital Cameras
· Communication System
· Automotive Systems Power supplier
· LCD PDP Televisions





TEST EQUIPMEN AND CONDITIONS:



· Inductor Testing: HP4284A (Equivalent acceptable)
· DCR:QuadTech 1880 Milliohmmeter
· IDCMax current is decreased 10% against its initial value
· Operating temperature: -40℃ to +105℃
· Storage Temperature: -40℃ to +105℃



 Low DC Resistance SMD Power Choke 390uH Magnetically Shielded Structure



Note: Product specifications can be customized.Custom inductance values are available.
