Industrial Control High Current Power Inductors No Distortion PIN Finished Smoothly

China Industrial Control High Current Power Inductors No Distortion PIN Finished Smoothly supplier

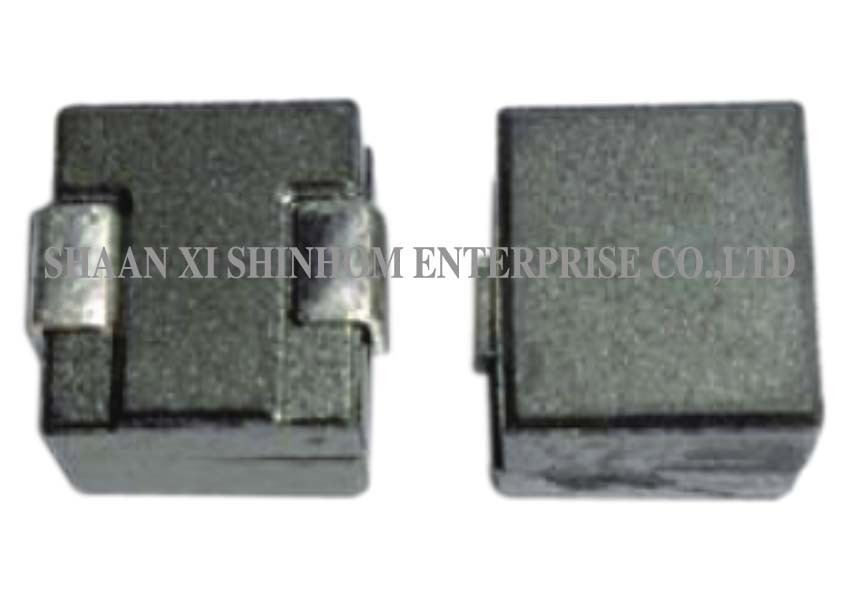

Large Image :  Industrial Control High Current Power Inductors No Distortion PIN Finished Smoothly

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HCB0705

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Current Range: 20A To 65A Inductance Range: 72nH To 226nH
Tolerance: 10% Pad Size: 7.0*7.0
Operating Temperature: -40℃ To +125℃(ambient Plus Self-temperature Rise) Storage Temperature: -40℃ To +125℃

HCB0705 Series high current power inductors,SMD inductor,High current choke coil,SMD power inductor,Shielded inductor



FEATURES:

  1. Inductance range from 72nH to 226nH
  2. Current range from 20A to 65A
  3. Magnetically shield construction, anti-electromagnetic interference, ultra low buzz noise, high density installation.
  4. Low magnetic loss, low DC resistance, highest curent in this package size.
  5. Assembled solide structure.
  6. Low profile, high current, temperature rise current and saturation current performed well under high frequency& high temperature condition.
  7. Fast paint stripping craft, PIN finished smoothly, no distortion, easy to solder.



APPLCATIONS:

      Widly used in industrial control PCs, PDA, Notebook, Desktop, Server, Cell phone, Automotive, DC/DC converter, LED lighting, Communication equipment, Medical quipment, Navigation.



NOTES:

  1. Test Frequency : 100KHz / 0.1V@25℃
  2. Irms: DC current for an approximate temperature rise of 40℃ without core loss
  3. Isat1: Peak current for approximately 20% rolloff at +25℃
  4. Isat2: Peak current for approximately 20% rolloff at +125℃
  5. Operating temperature: -40℃ to +125℃(ambient plus self-temperature rise)
  6. Storage temperature: -40℃ to +125℃

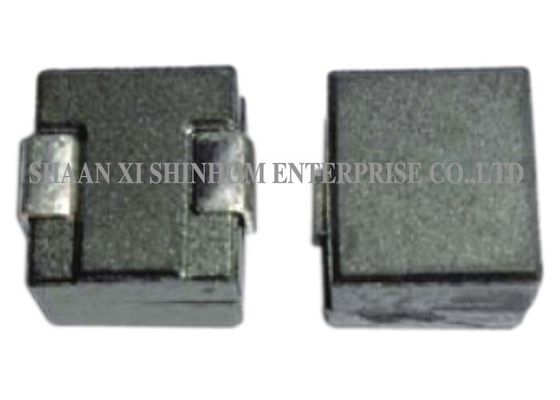

Industrial Control High Current Power Inductors No Distortion PIN Finished SmoothlyIndustrial Control High Current Power Inductors No Distortion PIN Finished Smoothly





Note: Product specifications can be customized.
