Smart IC Card Multilayer RFID Coil High Q Value Customized Specification

Smart IC Card Multilayer RFID Coil High Q Value Customized Specification
Smart IC Card Multilayer RFID Coil High Q Value Customized Specification Smart IC Card Multilayer RFID Coil High Q Value Customized Specification Smart IC Card Multilayer RFID Coil High Q Value Customized Specification Smart IC Card Multilayer RFID Coil High Q Value Customized Specification

Large Image :  Smart IC Card Multilayer RFID Coil High Q Value Customized Specification Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RFID12085-422
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Size: 120*12mm Inductance: 4.26mH
Frequency: 110KHz Wire Diameter: 0.3mm
Type: Antenna RFID Coil Operating Temperature: -20℃ To +65℃
High Light:

rfid transponder coil

,

flat copper wire coil

 RFID transponder coils and RFID antenna coils for RFID system and smart IC card application





Features:

  • Various structures meet customers' specifications
  • High Q value and wide inductance range
  • Honeycomb type winding with silk copper wire
  • Multilayer structure
  • Customized specifications are welcome
  • Wire diameter range: 0.1 mm to 1.2 mm



Electrical specification:

  • L: 4.26mH±5%@110KHz,0.1V
  • Q: 50 Min@110KHz
  • Operating temperature: -20℃ to +65℃

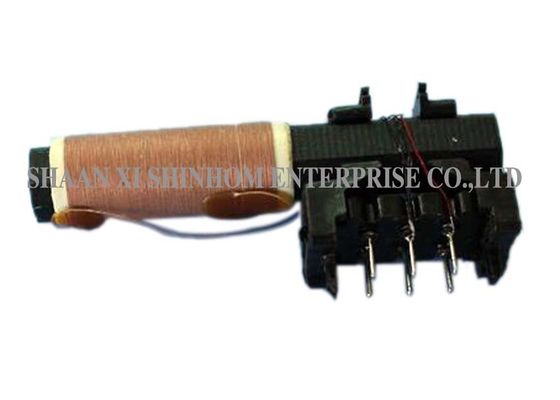

Smart IC Card Multilayer RFID Coil High Q Value Customized Specification 0



For More RFID antenna coil, Please Go To Our Website Or Contact Us.

Smart IC Card Multilayer RFID Coil High Q Value Customized Specification 1







Tag:

qi wireless charging coil,

rfid transponder coil,

flat copper wire coil
