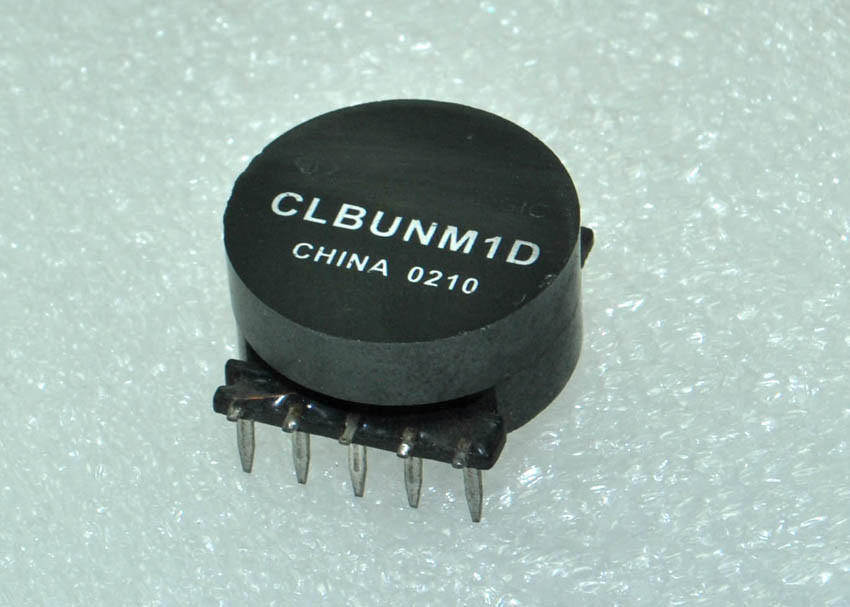

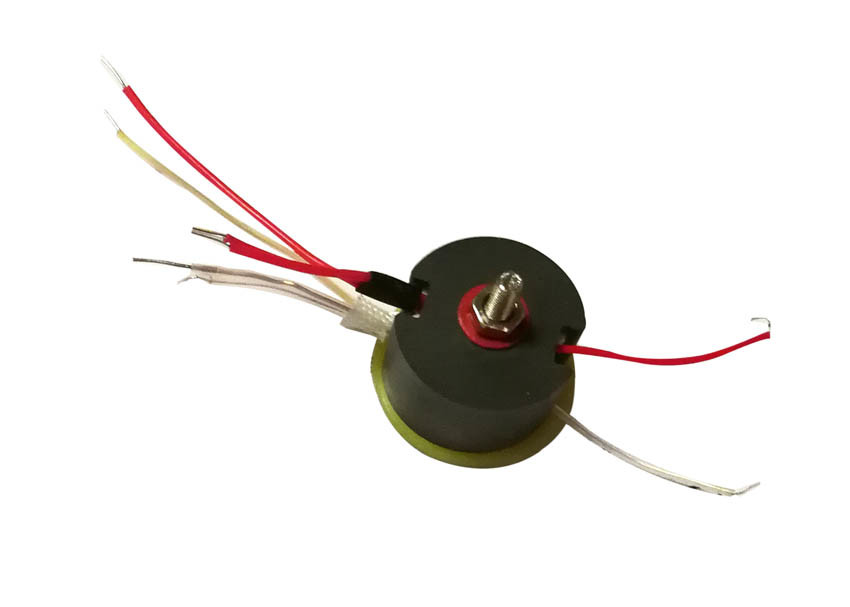

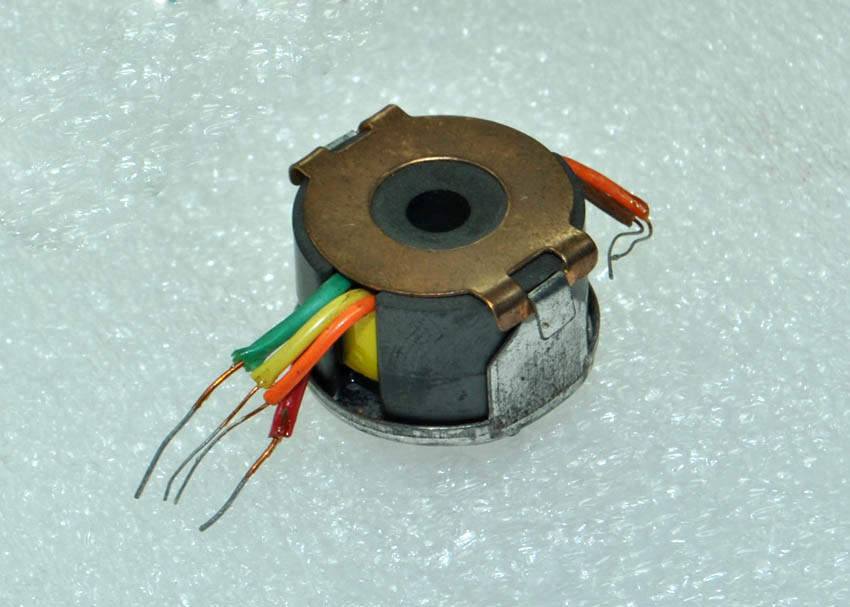

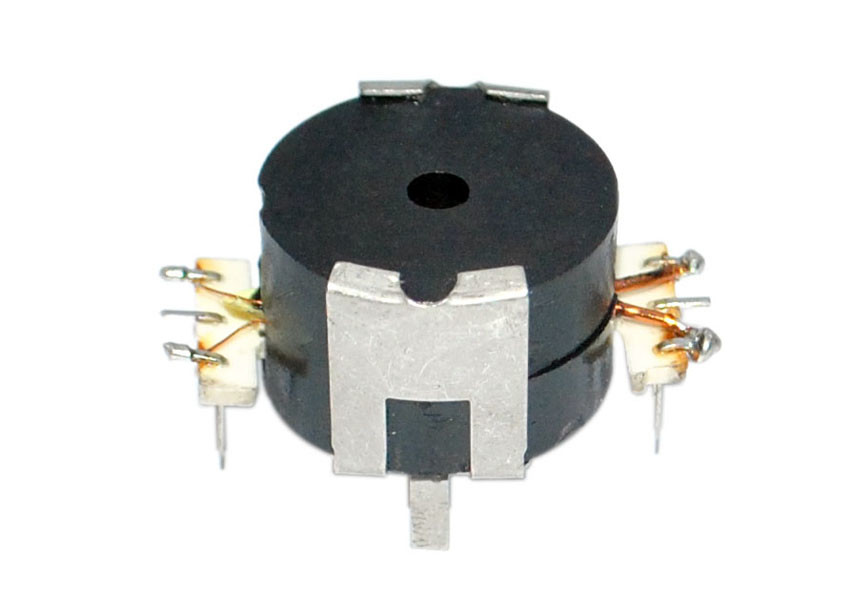

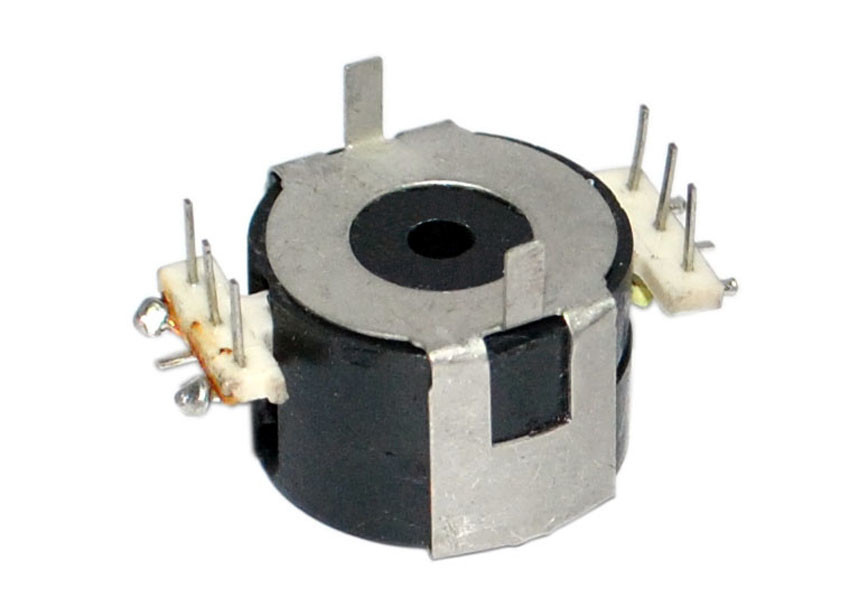

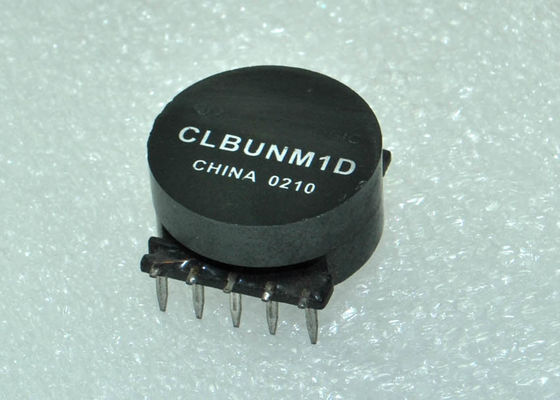

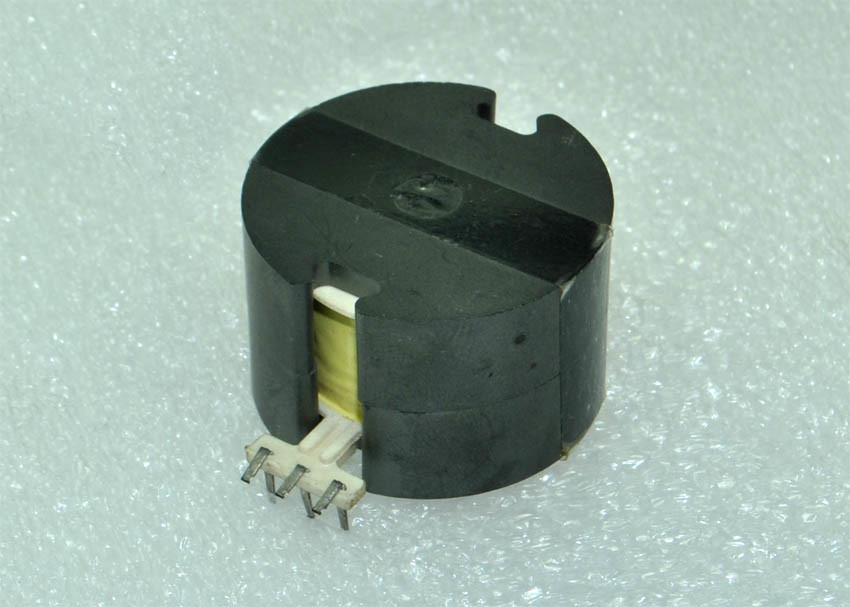

High Power Density High Frequency Transformer For Inverter / Gate Drive

China High Power Density High Frequency Transformer For Inverter / Gate Drive supplier
High Power Density High Frequency Transformer For Inverter / Gate Drive supplier High Power Density High Frequency Transformer For Inverter / Gate Drive supplier High Power Density High Frequency Transformer For Inverter / Gate Drive supplier High Power Density High Frequency Transformer For Inverter / Gate Drive supplier High Power Density High Frequency Transformer For Inverter / Gate Drive supplier

Large Image :  High Power Density High Frequency Transformer For Inverter / Gate Drive

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: P2213-080

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Contact Now
Detailed Product Description
Primary Inductance: 1.75mH Core: P2213
Specification: RoHS, ISO9001 Operating Frequency: 20kHz-500KHz
Operating Temperature: -40 ºCto +125 ºC Storage Temperature: -25 ºCto +85 ºC

P2213 Pot Core Pulse Transformer for Inverter and Gate Drive Application,High frequency transformer, Various Types



Features:

  • Custom designs available
  • High efficiency of over 95%
  • High isolation strength
  • Lower profile and weight
  • High power density
  • PQ Series: PQ2020, PQ2016, PQ2625, PQ3230, PQ3535, PQ4040 and PQ5050
  • EI series: EI19, EI28, EI33, EI40 ,
  • EE series : EE5.0, EE8.3, EE10, EE13, EE16, EE19, EE22, EE25, EE28, EE30, EE33, EE35, EE40, EE42, EE50, EE55, EE65,EE70
  • EF series: EF16, EF20, EF25 and EF32
  • ERL series: ERL-28, ERL-35, ERL-39, ERL-42 and ERL-49
  • ETD series: ETD29, ETD34, ETD39, ETD44, ETD49, ETD54 and ETD59
  • EFD series: EFD15, EFD20, EFD25 and EFD30
  • RM series: RM-4, RM-5, RM-6, RM-8, RM-10, RM-12 and RM-14



Applications:

  • High-temperature resistantHigh frequency transformer -Suitable for AC/DC inverter or DC/AC converter. Customized designs are welcome.
  • Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm
  • Structure,can fine-tune the inductance, etc., are widely used in fax Machines, PBX.
  • SMPS: Half Bridge and Full Bridge structure,can fine-tune the inductance, etc., are widely used in fax Machines, PBX.
  • Switching power supplies, chargers, alarm system, TV/CRT monitor displays, UPS, VCD/DVD players, audio/visual equipment, OA machines and inverter Typical products .
  • Used in high-density installation with good shielding quality also used in wave carrier filter, power transformer and Aux-power transformer

High Power Density High Frequency Transformer For Inverter / Gate Drive
