Fixed Surface Mount Power Inductors , Shield SMD Power Choke Coil Inductor

China Fixed Surface Mount Power Inductors , Shield SMD Power Choke Coil Inductor supplier
Fixed Surface Mount Power Inductors , Shield SMD Power Choke Coil Inductor supplier Fixed Surface Mount Power Inductors , Shield SMD Power Choke Coil Inductor supplier Fixed Surface Mount Power Inductors , Shield SMD Power Choke Coil Inductor supplier Fixed Surface Mount Power Inductors , Shield SMD Power Choke Coil Inductor supplier Fixed Surface Mount Power Inductors , Shield SMD Power Choke Coil Inductor supplier

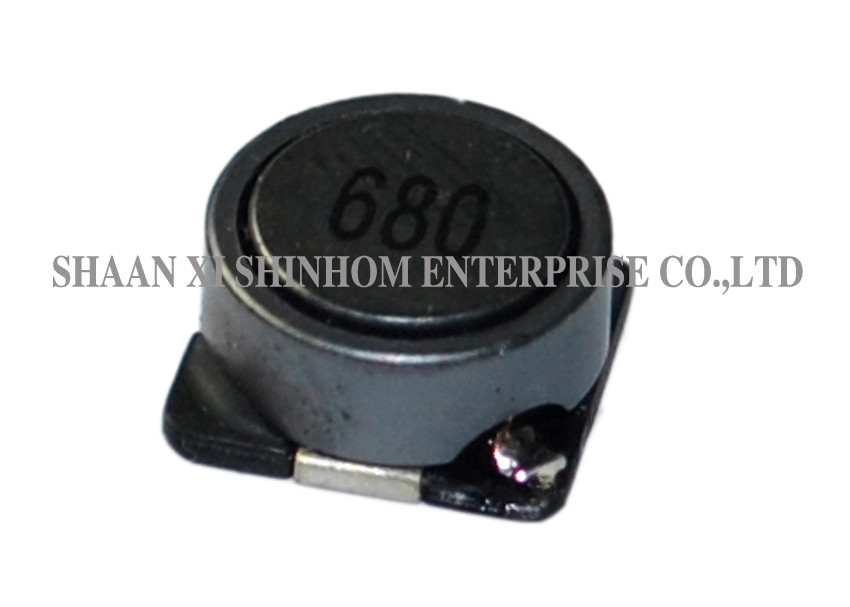

Large Image :  Fixed Surface Mount Power Inductors , Shield SMD Power Choke Coil Inductor

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDRH7028/7030 Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Inducance: 3.3uH To 470uH Current: 0.35A To 1.6A
DCR: 45mΩ To 540mΩ Test Frequency: 1KHz
Type: Fixed Inductor Installation: SMD

SDRH7028/7030 Series 3.3uH to 470uH shielded surface mount power inductors,Shield SMD Power Choke Coil Inductor



SDRH7028/7030 Series power inductor mechanical strength and thermal stability is good enough to bear the temperature changes from the reflow soldering and the outside force. It is mini size, high energy-stored, low resistance makes itself an ideal inductor when used in the PDA, DC/DC switches. Be suitable to work in the big current condition.



FEATURES:

· Shielded Structure
· Low DC Resistance
· Large current up to 1.6A
· High Reliability and Excellent Solderability
· Low and square Profile
· High heat resistance





COMMON APPLCATIONS:

· For switching power supplies and equipment using micro-computer
· TV set, VTRs/VCRs,audio equipment, OA equipment,etc
· Noise suppression at DC circuit
· Line filter of switching power supplies
· Liminate noise of ultrasonic equipment





TEST EQUIPMEN AND CONDITIONS:

·Inductor Testing: HP4284A (Equivalent acceptable)
DCR:QuadTech 1880 Milliohmmeter
IDCMax current is decreased 10% against its initial value
·Operating temperature: -40℃ to +105℃
·Storage Temperature: -40℃ to +105℃



 Fixed Surface Mount Power Inductors , Shield SMD Power Choke Coil Inductor





Note: Product specifications can be customized.
