| Current Range: | 0.5~1000A | Output: | 0-500mA Or 0.333V(AC) |
|---|---|---|---|
| Class: | 0.2、0.5、1.0 | Internal Structure: | Epoxy |
| Insulating Medium: | Epoxy Resin | Bobbin: | PC |
| Case: | PC/UL94-V0 | Customizable: | Yes |
| High Light: | split core type current transformer,split core current sensor |
||

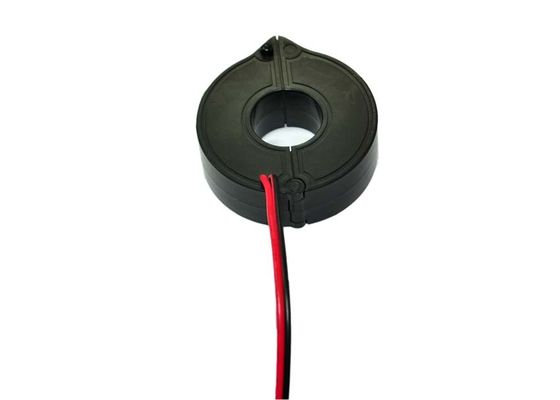

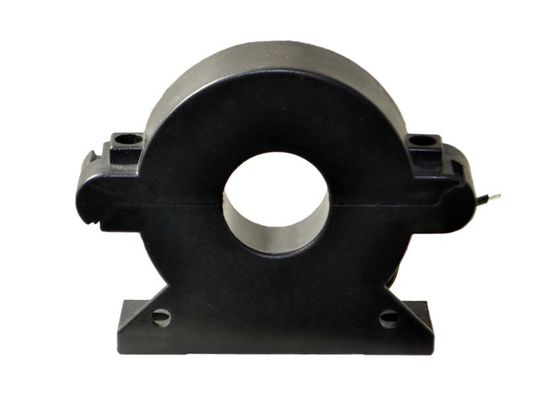

SCTK660C Series 0.5-1000A 0-500mA or 0.333V Split Core Current Transformer,Current senser
SCTK660C series retro-fit (split-core) current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.
Current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors,lighting, air compressor,heating and ventilation system, air - condition equipment and automation control system.Current , power and energy monitoring device.Relay protection device.
2. Feature
The structure of the self-locking , safe, easy to install, portable Wide inner window, allowing clamping of big cables or bus-bars Wide range of sizes to accommodate all the existing installations.
Electrical Parameter
| Ratio | ≤± 0.2％ |
| Phase angle | ≤ ±10min |
| Measuring range | 10%In-130%In |
| Rated Output | 0.333V(AC) or 0-5A |
| Frequency | 50-2.5KHz |
| Rated Input | 0.5A-1000A |
| Dielectric strength | 5.0KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩmin |
Mechanical Parameter
| Case | PC/UL94-V0 |
| Bobbin | PBT |
| Construction | Tie |
| Internal structure | Epoxy |
| Core | Permalloy |
| Operating Humidity | ≤85% |
| Operating Temp | －25℃～＋75℃ |
| Output Connection | Terminal or UL1015 22AWG Wire 1.5m |
Type selection
| P/N | Rated Input(A) | Output(mA/V) | Accuracy | Dimensions(mm) | |||
| A | B | C | D | ||||
| SCTK660C-010 | 0.5-100A | 0.333V/0-50mA | 0.2,0.5,1.0 | 57.0 | 50.0 | 22.0 | 10.0 |
| SCTK660C-019 | 1-250A | 0.333V/0-100mA/1A | 0.2,0.5,1.0 | 66.0 | 59.0 | 22.0 | 19.0 |
| SCTK660C-025 | 5-400A | 0.333V/0-200mA/1A/5A | 0.2,0.5,1.0 | 73.0 | 65.0 | 22.0 | 25.0 |
| SCTK660C-032 | 5-630A | 0.333V/0-200mA/1A/5A | 0.2,0.5,1.0 | 82.0 | 74.0 | 22.0 | 32.0 |
| SCTK660C-045 | 5-1000A | 0.333V/0-500mA/1A/5A | 0.2,0.5,1.0 | 95.0 | 86.0 | 22.0 | 45.0 |
Notes: Product specifications can be customized
