Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK667D Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Current Range: 50~2000A Output: 1A/5A
Accuracy: 0.2、0.5、1.0、3.0 Waterproof Level: IP65
Phase: Single Customizable: Yes
High Light:

split core type current transformer

,

split core current sensor

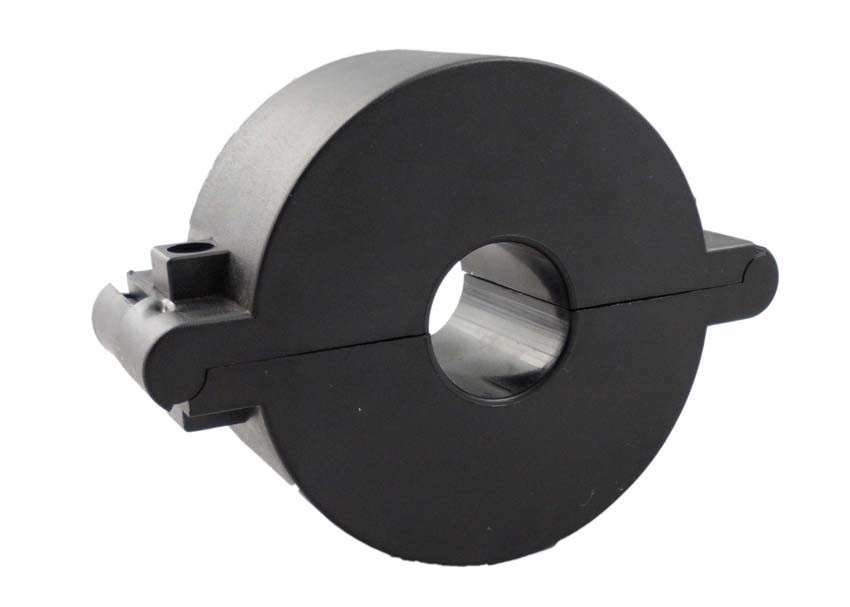

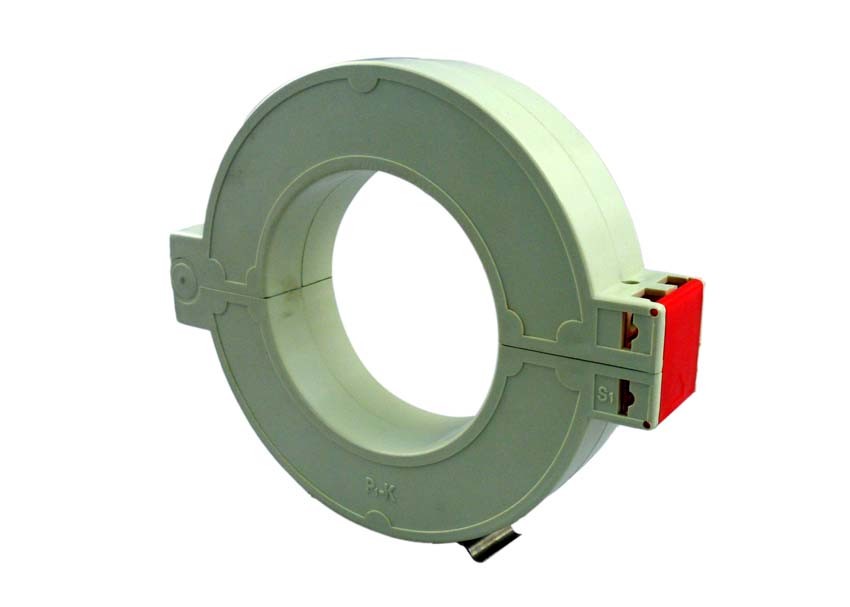

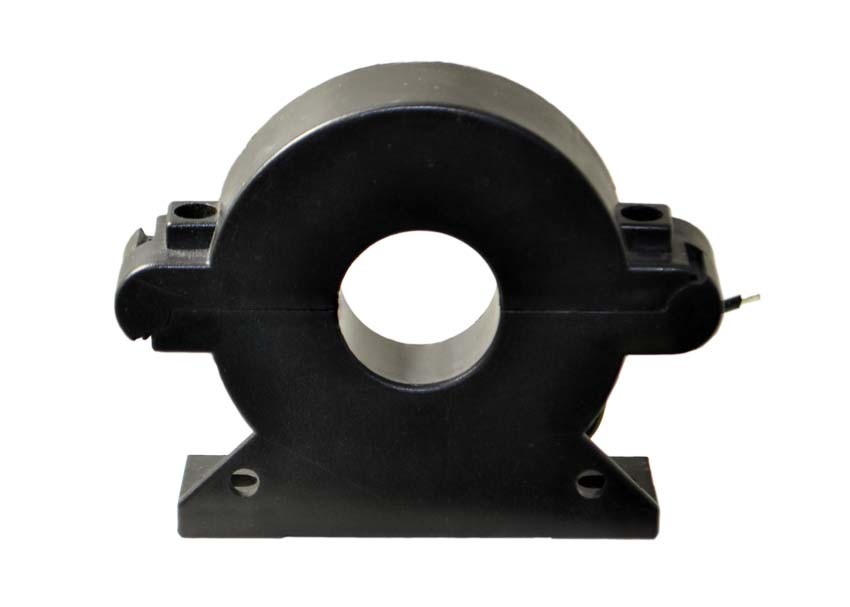

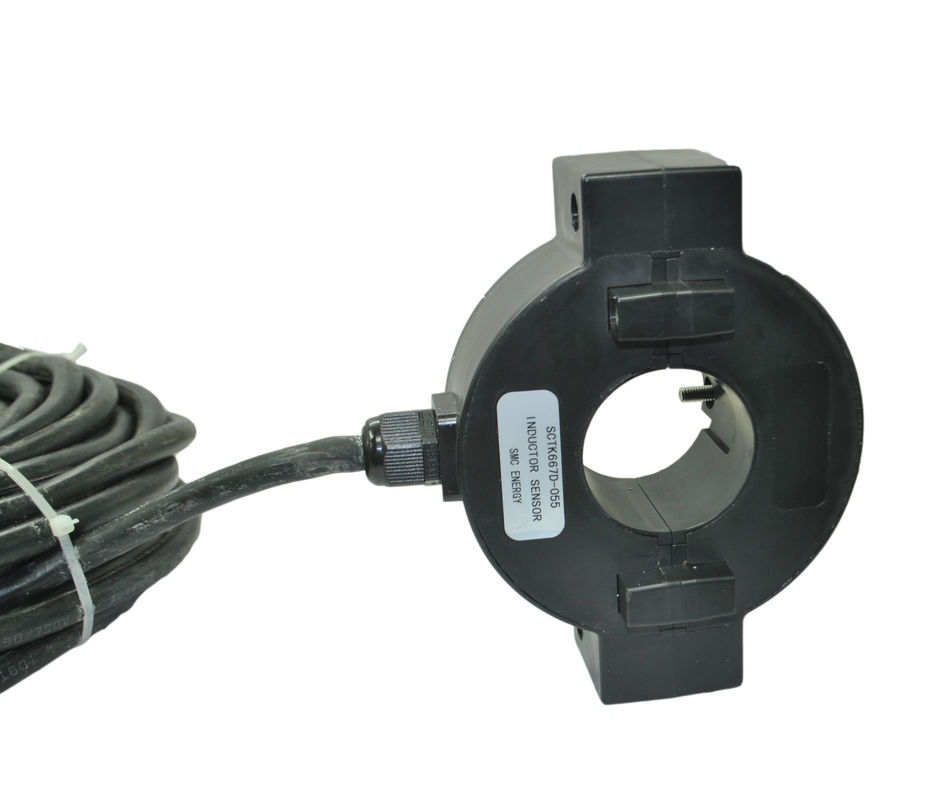

SCTK667D Series IP65 Waterproof Split Core Current Transformer with Epoxy Encapsulated Housing,1A or 5A output​



       SCTK667D series instrument current transformers employs imported silican steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti moisture, stable performance, no maintenance.



Features:

  1. Test range: 50 to 2000A AC input
  2. Output of 1A or 5A
  3. Split core current transformer with interleaved joint and hinge structure
  4. Outdoor use, resisting wind, rain and UV fading,IP65, Acquisition voltage signal in the field

  5. Wide inner window, allowing clamping of big cables or bus-bars
  6. Wide range of sizes to accommodate all the existing installations
  7. Test hole series size clamp leaker AC current transformer

Working conditions:

  1. Ambient temperature:-35°C~+55°C
  2. Environment: outdoors or indoors
  3. The Height of above sea level:0~ 3000m .
  4. Atmosphere conditions: No highly polluted, errosion, erosiveness, radioactivity gases.
  5. (continuous working under the rated current is allowed)

 Electrical Parameter

Frequency 50-60Hz
Rated Input 50A-2000A
Measuring range 1%In-130%In
Rated Output 1A/5A
Ratio ≤ ± 0.2%
Phase angle ≤ ±10min
Dielectric strength 3.0KV/1mA/1min
Insulation Resistance DC500V/100MΩmin


Mechanical Parameter

Case PC+ABC/UL94-V0
Bobbin PBT
Core Permalloy
Internal structure Epoxy
Construction Tie
Operating Temp -35℃~+55℃
Operating Humidity ≤96%
Output Connection Terminal or UL14AWG Wire 1.5m




Type selection

P/N Rated Input (A) Output (A) Accuracy Dimensions(mm)
        ø A B C
SCTK667D-025 50-400A 1A/5A 0.5/1.0/3.0 25 173 105 56
SCTK667D-032 100-630A 1A/5A 0.5/1.0/3.0 32 206 112 56
SCTK667D-045 100-1000A 1A/5A 0.2/0.5/1.0 45 193 125 56
SCTK667D-055 100-1200A 1A/5A 0.2/0.5/1.0 55 180 135 56
SCTK667D-065 100-1500A 1A/5A 0.2/0.5/1.0 65 203 145 56
SCTK667D-080 200-2000A 1A/5A 0.2/0.5/1.0 80 228 160 56
SCTK667D-100 500-3000A 1A/5A 0.2/0.5/1.0 100 248 180 56



Waterproof Split Core Transducer Durable Anti Moisture Stable Performance 0

Notes: Product specifications can be customized
