0 - 1000A Single Phase Clamp On Current Transformer Split Core Completely Enclosed

China 0 - 1000A Single Phase Clamp On Current Transformer Split Core Completely Enclosed supplier

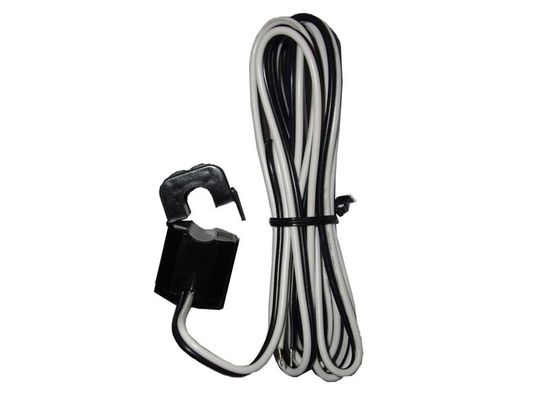

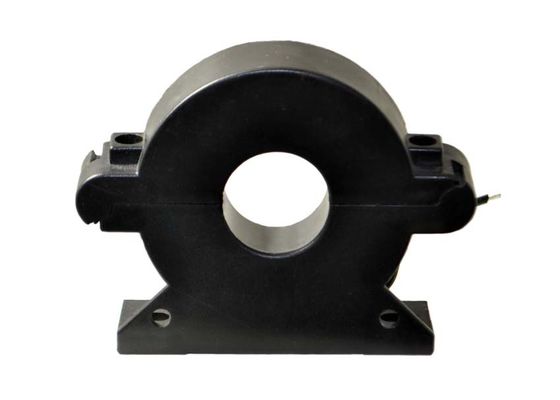

0 - 1000A Single Phase Clamp On Current Transformer Split Core Completely Enclosed supplier 0 - 1000A Single Phase Clamp On Current Transformer Split Core Completely Enclosed supplier 0 - 1000A Single Phase Clamp On Current Transformer Split Core Completely Enclosed supplier 0 - 1000A Single Phase Clamp On Current Transformer Split Core Completely Enclosed supplier

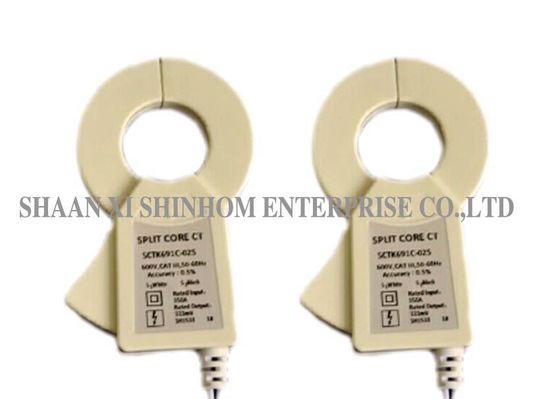

Large Image :  0 - 1000A Single Phase Clamp On Current Transformer Split Core Completely Enclosed

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK691C Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Input: 0A-1000A Output: 0.333VAC Or 0-5A
Measuring Range: 10%In-130%In Accuracy: 0.2、0.5、1.0
Core Material: Permalloy Customized: Yes

SCTK691C Series Split Core Current Transformer with Current Range 0mA to 1000A Single-phase Current Test



       SCTK691C series are clamp-on current transformers, CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.These CT can be mounted without removing existing cables for easier installation



Features:

  1. Test range: 0A - 1000A AC input, output of 0.333VAC or 0-5A
  2. Test precision class: 0.2, 0.5 ,1.0
  3. Encapsulated with epoxy resin to ensure strong insulation ability
  4. Reliable linear performance transformers
  5. Clamp leaker current transformer
  6. Clamp-on current transformers
  7. Locking snap current transformers
  8. Strong anti-magnetic disturbance epoxy current transformers, completely enclosed, good mechanical behavior
  9. Linear output current, high precision

Applications:

  1. Relay protection device
  2. Current measurement, monitoring and protection for electrical wiring and equipment.
  3. Current and power measurement for electric motors, lighting, air compressor
  4. Heating and ventilation system, air-condition equipment and automation – control system.
  5. Current, power and energy monitoring device.
  6. Suitable for various environments, strong voltage isolation ability, delicate appearance
  7. Suitable for single-phase electricity meter as well as anti-tampering electricity meter

Electrical Parameter

Frequency 50-2.5KHz
Rated Input 0.5A-630A
Measuring range 10%In-130%In
Rated Output 0.333V(AC) or 0-5A
Ratio ≤± 0.2%
Phase angle ≤ ±10min
Dielectric strength 5.0KV/1mA/1min
Insulation Resistance DC500V/100MΩmin


Mechanical Parameter

Case PC/UL94-V0
Bobbin PBT
Internal structure Epoxy
Operating Temp -25℃~+75℃
Operating Humidity ≤85%
Output Connection Terminal or UL1015 22AWG Wire 1.5m


Type selection

P/N

Rated Input

(A)

Output (mA/V) Accuracy Dimensions(mm)
        A B C D E
SCTK691C-010 0.5-100A 0.333V/0-50mA 0.2,0.5,1.0 63.0 25.0 20.0 10.0 37.0
SCTK691C-016 1-250A 0.333V/0-100mA 0.2,0.5,1.0 71.0 20.0 15.0 16.0 43.0
SCTK691C-025 5-400A 0.333V/0-200mA 0.2,0.5,1.0 87.0 20.0 15.0 25.0 52.0
SCTK691C-036 5-630A 0.333V/0-200mA/1A 0.2,0.5,1.0 117.0 27.0 22.0 35.0 71.0
SCTK691C-050 5-1000A 0.333V/0-500mA/1A/5A 0.2,0.5,1.0 135.0 27.0 22.0 50.0 100.0





0 - 1000A Single Phase Clamp On Current Transformer Split Core Completely Enclosed



Notes: Product specifications can be customized
