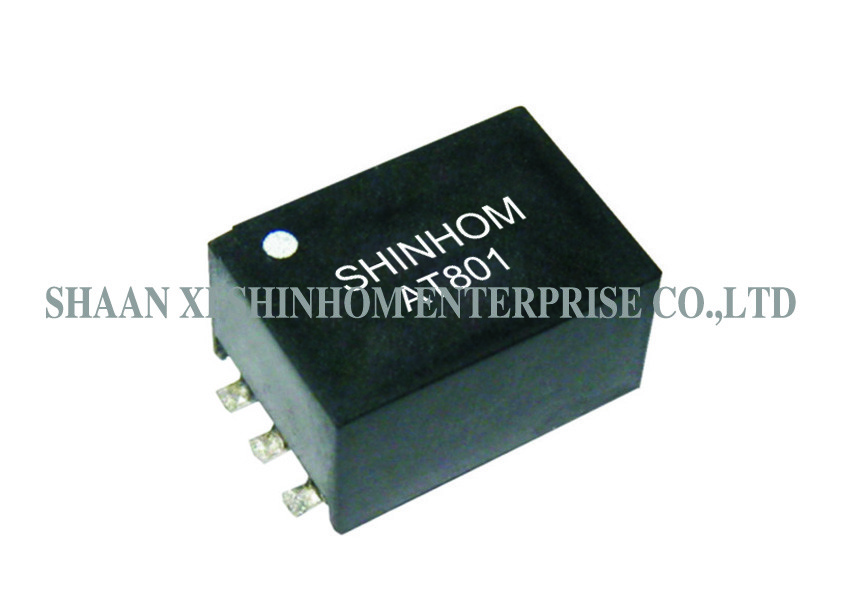

Epoxy Potting SMD Audio Transformer 20Hz - 20kHz Maximum Response 0.25dB

Audio Transformer with Epoxy potting,SMD Audio Transformers with 20Hz to 20kHz Frequency and Maximum Response of 0.25dB

FEATURES:

• RoHS Directive-compliant
• Audio transformer

• Operating temperature:-25 to +125°C

• Storage temperature: -25 to +85°C

• Widely used in audio systems
• Isolated telecommunication transformer
• SMD fax modem telecom transformers SMD
• Adequate civil AV audio telecom transformer 2,400bps to 56.6Kbps (V.90) and PCMCIA applications

1. DCR: Pin1-3=115Ω±15%
              Pin4-6=115Ω±15%
2. INDUCTANOE PARALLEL: 200Hz,0.78V
             Pin1-3=5.8H Min
             RESISTANCE PARALLEL 7500ΩMin
3. LEAKAGE INDUCTANCE: 1KHz,0.1V
             Pin1-3(4-6short)=6mH Typ
4. INSERTION LOSS: 2KHz,0dB
             Pin1-3(4-6 W/H 412Ω)=2dB Max
5. RETURN LOSS: REF 600Ω
            FROM 200Hz~4Hz=24dB Min
6. TURN RATIO: 15KHz,1V
            Pin1-3: 6-4=1±1%
7. INSULATION RES|STAN0E100MΩ@500VDC
8. HI-POT: 4600VAC 1mA 60SEC: P-S
