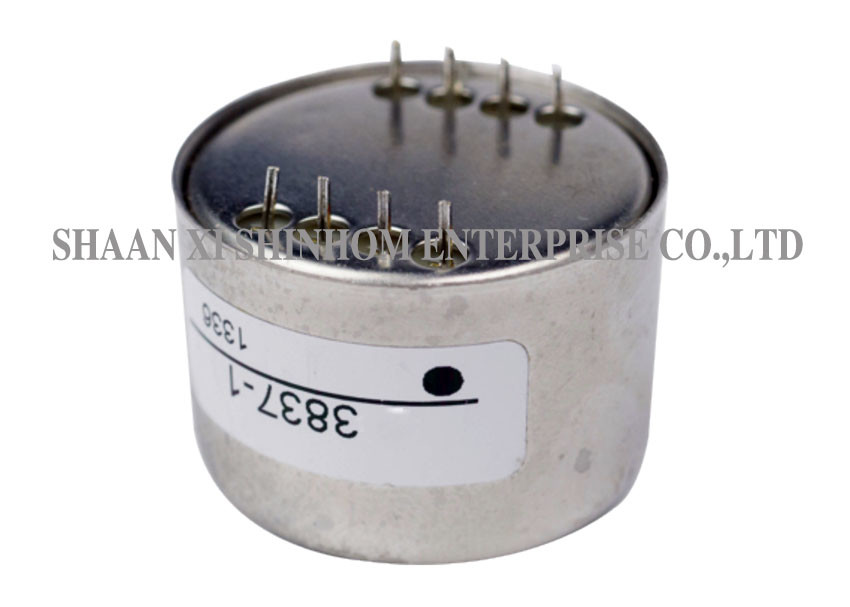

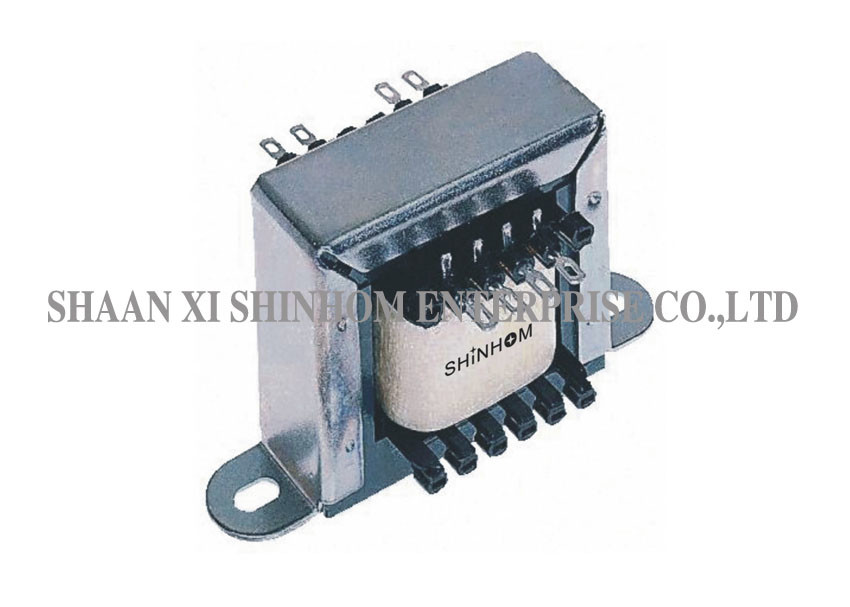

40Hz - 10kHz AF Transformer Dry Coupling 5W RoHS Directive Compliant

China 40Hz - 10kHz AF Transformer Dry Coupling 5W RoHS Directive Compliant supplier
40Hz - 10kHz AF Transformer Dry Coupling 5W RoHS Directive Compliant supplier 40Hz - 10kHz AF Transformer Dry Coupling 5W RoHS Directive Compliant supplier 40Hz - 10kHz AF Transformer Dry Coupling 5W RoHS Directive Compliant supplier 40Hz - 10kHz AF Transformer Dry Coupling 5W RoHS Directive Compliant supplier 40Hz - 10kHz AF Transformer Dry Coupling 5W RoHS Directive Compliant supplier

Large Image :  40Hz - 10kHz AF Transformer Dry Coupling 5W RoHS Directive Compliant

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AT

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Power Rating: 5W Type: Audio Transformer
Frequency Range: 40Hz To 10kHz Operating Temperature: -25℃ To +125℃
Certification: ISO9001-2000, UL Shape Of Core: EI

Audio Transformers with 40Hz to 10kHz Frequency and Audio Dry Coupling Transformer, UL 1950- or EN 60950-standard



FEATURES:

  1. RoHS Directive-compliant
  2. Audio transformer
  3. Widely used in audio systems
  4. Isolated telecommunication transformer
  5. Audio meets UL 1950 or EN60950 telecom transformer
  6. Frequency range: 40Hz to 10kHz audio telecom transformer



Electrical specification



1. Power rating: 5W Max

2. Hi-Pot: 1000Vdc Pri to Sec

                1000Vdc Pri to Case

                500Vdc Sec to Case

3. RDC: Pin 4-6: 0.4ΩMax

              Pri 1-2: 80ΩMax

              Pri 2-3: 40ΩMax

4. Frequency response: 40Hz to 10KHz with no more than 30% amplitude roll off at the end frequency into matched loads

5. Insertion loss: 2.0dB@1KHz

6. Return Loss: 1.0dB@1KHz

7. Longitudinal distortion: 78dB@1KHz





40Hz - 10kHz AF Transformer Dry Coupling 5W RoHS Directive Compliant
