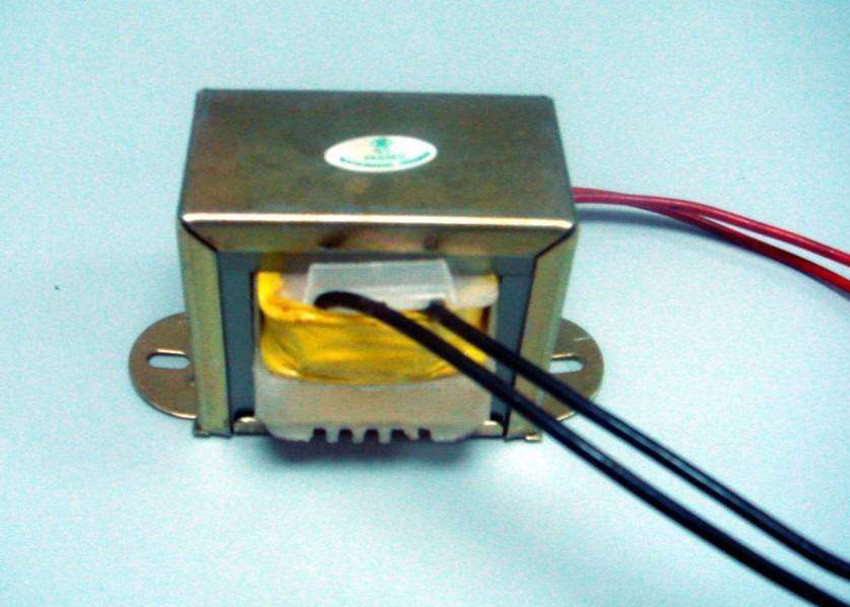

PCB Audio Frequency Transformer , Miniature Audio Output Transformer

China PCB Audio Frequency Transformer , Miniature Audio Output Transformer supplier

Large Image :  PCB Audio Frequency Transformer , Miniature Audio Output Transformer

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AT301201

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Power Rating: 5W Type: Audio Transformer
Frequency Range: 40Hz To 10kHz Operating Temperature: -25℃ To +125℃
Certification: ISO9001-2000, UL Shape Of Core: EI

Audio Transformer,Small PCB Miniture Transformer, PCB Transformer and Audio Equipment Transformer



FEATURES:

  1. RoHS Directive-compliant
  2. Widely used in audio systems
  3. Isolated telecommunication transformer
  4. SMD fax modem telecom transformers SMD
  5. Audio meets UL 1950 or EN60950 telecom transformer



Electrical specification



1. Impedance: Primary (Blk-Grn) /Z/ 8V+/-10%;
                      secondary (Blk-Yel) /Z/80V+/-10%
2. DCR: Secondary(Blk-Yel)  27.3V+/-10%@20℃
              Primary(Blk-Grn)   0.83V+/-10%@20℃
3. Exciting current: Input Primary 3 V 1kHz, 395mA Max.(Blk—Grn).
4. Hi-Pot: AC 1.5kv 50Hz for one minute between Primary to secondary &core.
               AC1.5kv 50Hz for one minute between core to secondary. (At an alternative potentials 20% higher may be applied for one second. Cut-off Current 1mA)
5. Insulation test: DC500VAC10MΩ min . Between windings and between windings & core.
6. Temperature rise: less than 30deg for rated load, Measured by, resistance method.
7. Bobbin type 2811 SK6,Material:Nylon 6/6 weight <3g
8. Wires: according to UL3321 TEFLON(EN50306-2)

9. Operating temperature:-25 to +125°C

10. Storage temperature: -25 to +85°C
