Professional Audio ISO Transformer Light Weight Low Energy Consumption

China Professional Audio ISO Transformer Light Weight Low Energy Consumption supplier
Professional Audio ISO Transformer Light Weight Low Energy Consumption supplier Professional Audio ISO Transformer Light Weight Low Energy Consumption supplier Professional Audio ISO Transformer Light Weight Low Energy Consumption supplier Professional Audio ISO Transformer Light Weight Low Energy Consumption supplier

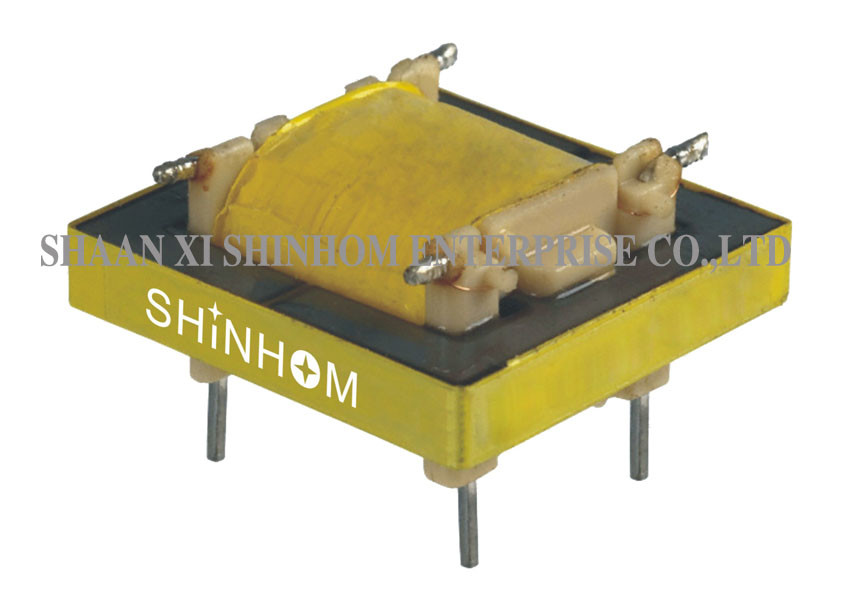

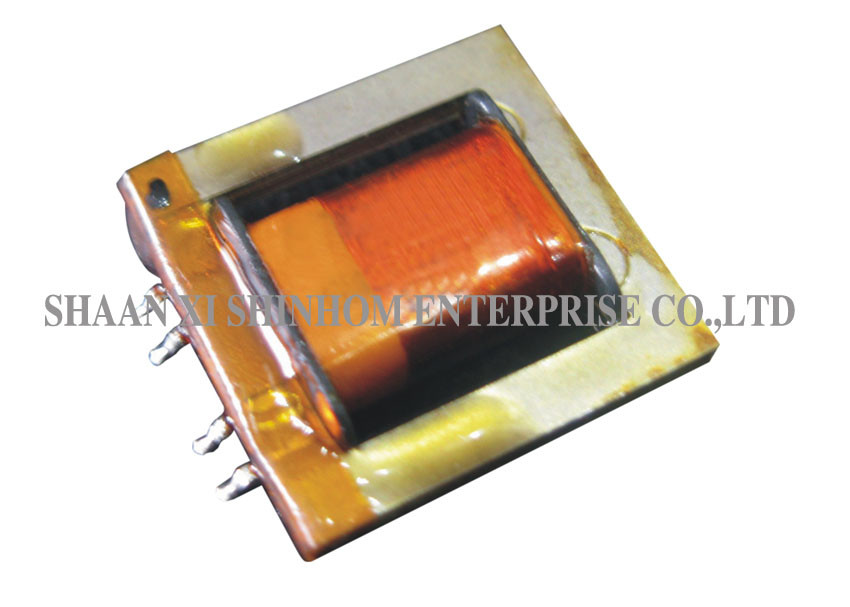

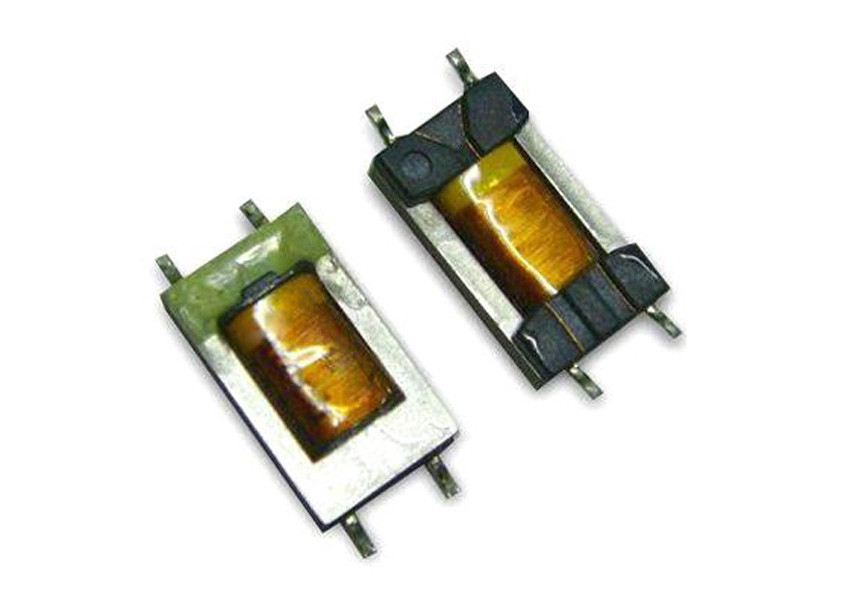

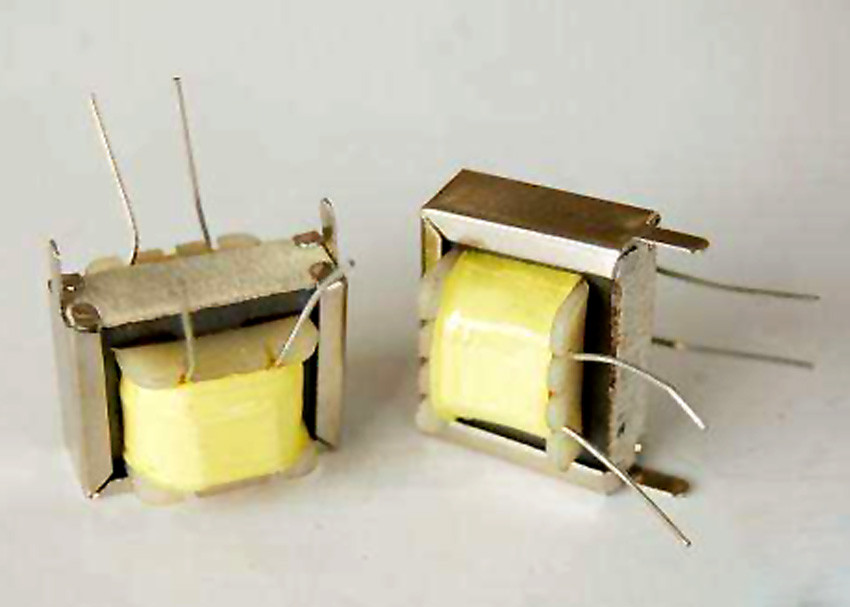

Large Image :  Professional Audio ISO Transformer Light Weight Low Energy Consumption

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AT2212

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Product Name: Audio Transformer Coil Structure: Toroidal,plane,square
Core Material: Silicon Steel Sheet Impedance Ratio: 600Ω:374Ω
Storage Temperature: -25℃to+85℃ Operating Temperature: -25℃to+125℃

EI type audio Transformer with 20Hz to 20kHz Frequency Range,Low Frequency PCB Transformer





 FEATURES:

  • Dependable and professional
  • Multimedia active
  • Isolated telecommunication transformer
  • Technical properties of 600:374Ω telecommunication transformer:
    • Audio transformer used in telephone systems and PABX systems
    • Designed to meet UL 1950 or EN60950



Electrical specification:



1. Impedance ratio: 600Ω:470Ω
2. DCR: N1: 100Ω±10%
          N2: 112Ω±10%
3. Hi-Pot: 1875VAC,1mA,1S Pri to Sec
4. Turns ratio: N1:N2=1:1±2%@10KHz,0.1V
5. Insertion loss: 2.0±0.5dB@1KHz,0dB
                       Pin4-3 W/H 470Ω
                       Pin1-2 W/H 600Ω
6. THD: -10dB Max@600Hz
7. Pin1-2 to Pin4-3, Pin4-3 W/H470Ω
8. Input 50Ω=-71.5dB±15%







Professional Audio ISO Transformer Light Weight Low Energy Consumption
