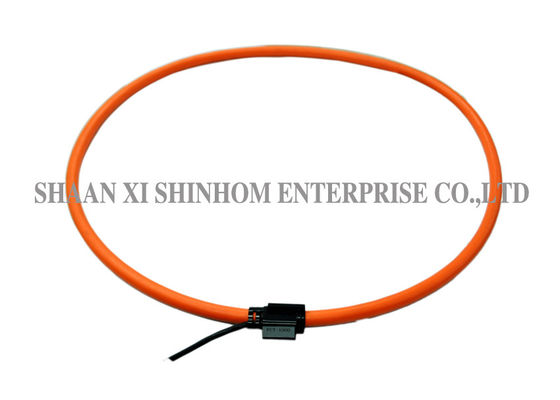

333mV Rogowski Current Transformer For Protected Circuit / Current Monitoring

China 333mV Rogowski Current Transformer For Protected Circuit / Current Monitoring supplier
333mV Rogowski Current Transformer For Protected Circuit / Current Monitoring supplier 333mV Rogowski Current Transformer For Protected Circuit / Current Monitoring supplier 333mV Rogowski Current Transformer For Protected Circuit / Current Monitoring supplier 333mV Rogowski Current Transformer For Protected Circuit / Current Monitoring supplier

Large Image :  333mV Rogowski Current Transformer For Protected Circuit / Current Monitoring

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ZRC Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Contact Now
Detailed Product Description
Coil Structure:: Toroidal Phase: Three
Coil Length: 420mm,510mm,620mm,800mm Window Size: 120mm,150mm,185mm,240mm
Reference Rated Current: 1000A,3000A,6000A,10kA Certifications: RoHs CE RSO9001

High Performance Rogowski Coils 333mV, Used for Protected Circuit/Current Monitoring,split core current transformer

       Clamp-on Flexible Rogowski coil Current Transformer is an AC current transducer for permanent installation.

They combine the benefits of a thin, flexible, clip-around Rogowski (sense) coil with a signal conditioner providing

accurate, true rms measurement, of voltage or current.





Features

  • High linearity from 1A to 100kA
  • Wide dynamic range
  • Very useful with large size or awkward shaped conductors or in places with limited access
  • No danger from open-circuited secondary
  • Not damaged by large overloads
  • Non-intrusive, no power drawn from the main
  • Measurement uniformity at any position of the conductor inside the coil
  • Excellent degree of rejection to the external current conductor

Applications

  • Very high current monitoring
  • DC ripple measurement
  • Harmonics and transients monitoring
  • Power monitoring & control systems
  • Applicable in eletronic Watt-hour meter
  • Power quality monitoring
  • Electric furnace
  • Harmonic management
  • Relay Protection



333mV Rogowski Current Transformer For Protected Circuit / Current Monitoring





Specification

MODEL
ZRC-420
ZRC-510
ZRC-620
ZRC-800
Coil length
420mm
510mm
620mm
800mm
Window size
120mm
150mm
185mm
240mm
Weight
105g
120g
135g
165g
Reference Rated current
1000A
3000A
6000A
10kA
Coil Resistance
from 100 to 300 Ω or 10kΩ
Coil Section
8mm
Lead length
2meter
Output (di/dt)
Uncalibrated
120mV/kA/50Hz
Calibrated
50mV/kA/50Hz
85mV/kA/50Hz
100mV/kA/50Hz
Read Accuracy
Calibrated<0.5% (central position, 25℃)
Uncalibrated < 5% tolerance (central position, 25℃)
Temperature
Uncalibrated 200ppm/C

Calibrated 400ppm/C
Position Error
±1% maximum
Output on 0A(zero drift)
≤1mV
Phase error
≤0.5°
Linearity
±0.2% of reading
Bandwidth
1Hz to 1MHz(-3dB)
Operating
temperature
-30℃ to 80℃
Storage
temperature
-40℃ to 90℃
Other requirements, please contact us to OEM.





Dimensions tolerance:




A,B,C,F:±5mm, D:±0.2mm,E:±10mm




Dimensions(mm)
ZRC-420
ZRC-510
ZRC-620
ZRC-800
A.Windows size A
125
155
190
245
B.Windows size B
120
150
185
240
C.Coil O.D.
147
172
202
267
D.Coil section
11



E.Lead Cable Total Length
2000



F:Coil length
420
510
620
800


333mV Rogowski Current Transformer For Protected Circuit / Current Monitoring

Here are a variety of specifications for you to choose from.



Contact Details
Shaanxi Shinhom Enterprise Co.,Ltd

Contact Person: admin

Send your inquiry directly to us (0 / 3000)
