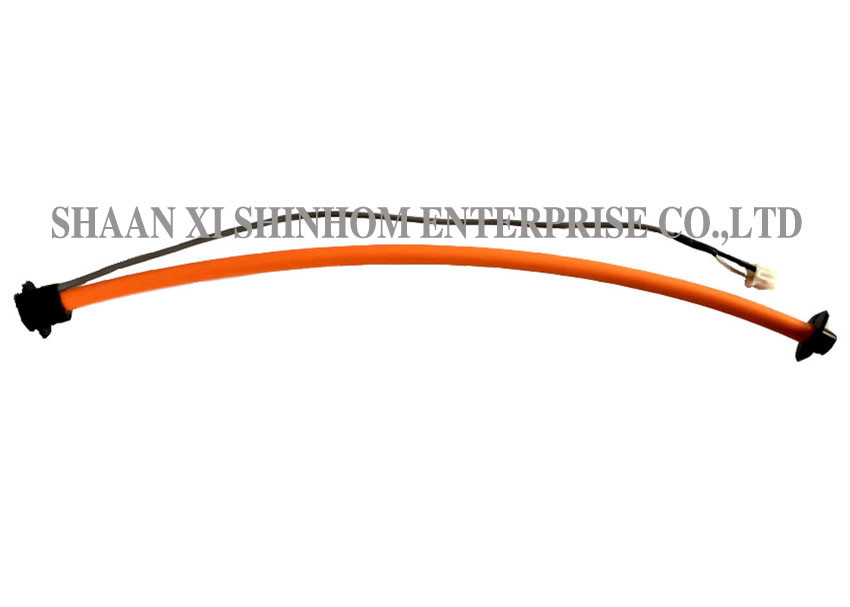

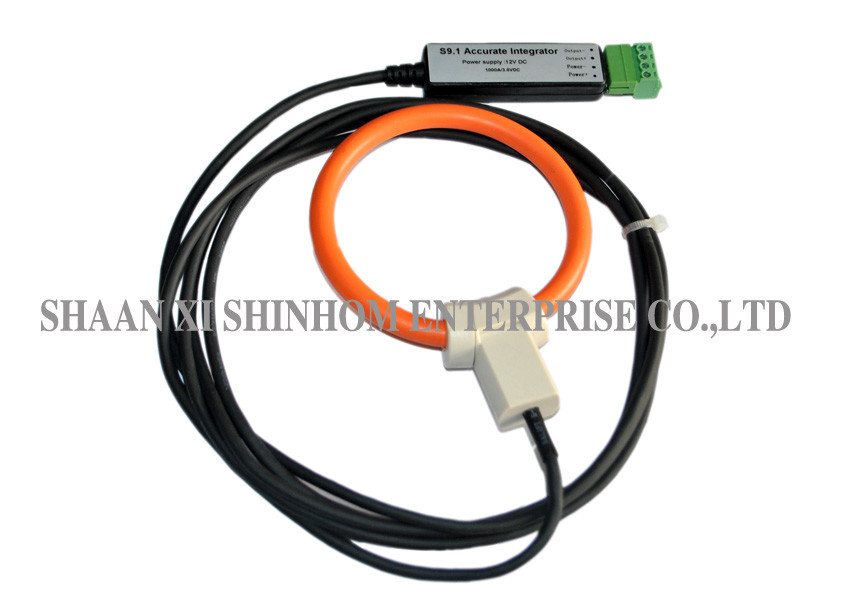

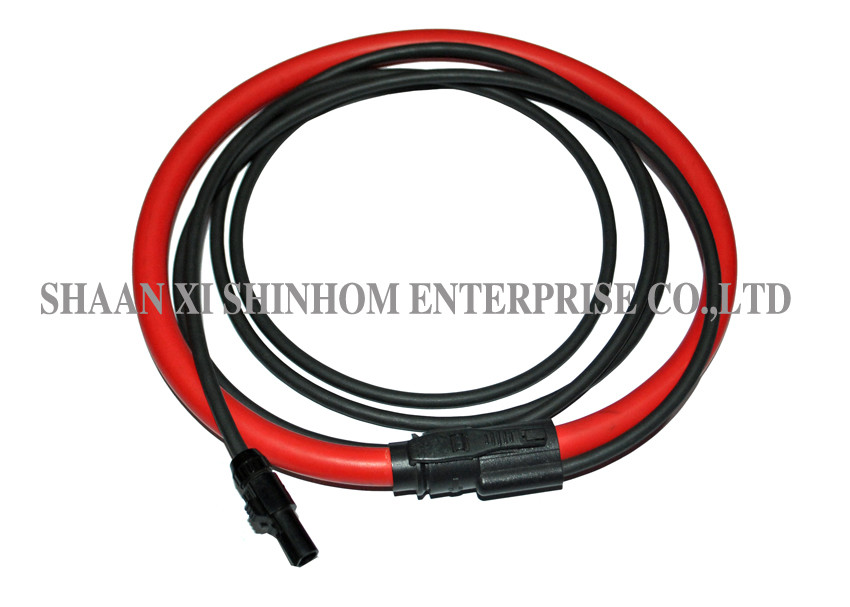

Flexible Current Sense Transformer , Rogowski Coil CT Current Transformer

Flexible Current Sense Transformer , Rogowski Coil CT Current Transformer
Flexible Current Sense Transformer , Rogowski Coil CT Current Transformer Flexible Current Sense Transformer , Rogowski Coil CT Current Transformer Flexible Current Sense Transformer , Rogowski Coil CT Current Transformer

Large Image :  Flexible Current Sense Transformer , Rogowski Coil CT Current Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ZRC Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Input: 10A-100KA Output: 0-5V
Isolation Voltage: 3500V Frequency: 1Hz-1MHz
Accuracy: ±1% Certifications: RoHs CE RSO9001
High Light:

ct current transformer

,

high frequency current transformer

Flexible Rogowski Coil Up 100KA Current Sensors, 0-5V output split core current transformer

Features

  • Capable of accommodating a range of primary conductor sizes.
  • Characterized by high sensitivity, accuracy, linearity, minimum phase shift.
  • Suitable for harsh operating environments (temperature, humidity, EMI).
  • Current Range: 100A to 100kA
  • Accuracy: < 1%
  • Phase Shift: < 1 degrees at 50/60Hz (< 0.5 degrees typical) /li>
  • Linearity: ±0.2% from 10% to 100% of rated primary current
  • Primary Conductor Position Sensitivity: ± 2% maximum
  • Influence of External Field: ± 1.5% maximum
  • Coil Working voltage: 1000VRMS or 1000VDC
  • Coil Dielectric Surge Withstand: 5kVRMS for 1 minute
  • Operating temperature: -20ºC to +60ºC
  • Leads: Shielded cable, or as per customer need



Applications

  • Power meters
  • Condition monitoring
  • Distributed measurement systems
  • Electric furnace
  • Relay protection
  • Grounding current monitoring
  • High-Voltage current monitoring





Flexible Current Sense Transformer , Rogowski Coil CT Current Transformer 0





Specification

Rated current (rms) 10A-100KA
Output mV (without integrator)
0-5V AC(with integrator)
Power supply 9V
Coil length 20cm-200cm
Tube UL material
Wire lead Shielded cable
Isolation voltage 3500V
Operating temperature -25℃-+70℃
Frequency 1Hz-1MHz
Accuracy ±1%


Here are a variety of specifications for you to choose from.
