Lower RDC Magnetic Core Inductor Excellent Environmental Characteristics

China Lower RDC Magnetic Core Inductor Excellent Environmental Characteristics supplier
Lower RDC Magnetic Core Inductor Excellent Environmental Characteristics supplier Lower RDC Magnetic Core Inductor Excellent Environmental Characteristics supplier

Large Image :  Lower RDC Magnetic Core Inductor Excellent Environmental Characteristics

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LCHA Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Type: Through Hole Axial Power Inductor Inductance: 3.9uH To 150mH
Tolerance: K=±10%,M=±20% UL Tube: Heat Shrinkable Tube
Operating Temperature: -55℃ To +125℃ Storage Temperature: -40℃ To +105℃

LCHA Series DIP Power Inductors Ferrite Rod Magnetic R Bar Unshielded Choke Coil Inductor,axial ul tube power chokes





Features:

  • Wire-wound Construction
  • Polyolefin Shrink Tubing
  • Excellent Environmental Characteristics
  • High Reliability
  • High Inductance and Lower RDC
  • Axial and radial leaded power inductor
  • UL polyolefin shrinking tube
  • Leaded inductor with ferrite core
  • High-current
  • High-reliability
  • Low-resistance
  • Radial choke inductors
  • Axial lead fixed inductors



Applications:

  • Output smoothly in Power Supply;
  • Chopper Control;
  • Output smoothly(LPF) in large current digital amplifier
  • Switching Mode Power Supply output smoothing circuit;
  • Electromagnetic Interference(EMI) and Radio Frequency Interference(RFI) filers;
  • Other oscillation circuits
  • Power Supplies
  • SCR and TRIAC Controls
  • RFI Suppression
  • Filters
  • Switching Regulators



Electrical specification​:

  • Testing:LCR Bridge measured @ 1KHz 0.1V HP 4284A
  • (Equivalent acceptable)
  • RDC: QuadTech 1880 Milliohmmeter
  • IDC Max: Lowers inductance by 10%
  • Operating temperature: -55℃ to +125℃
  • Shrink tube: Flame retardant UL type VW-1

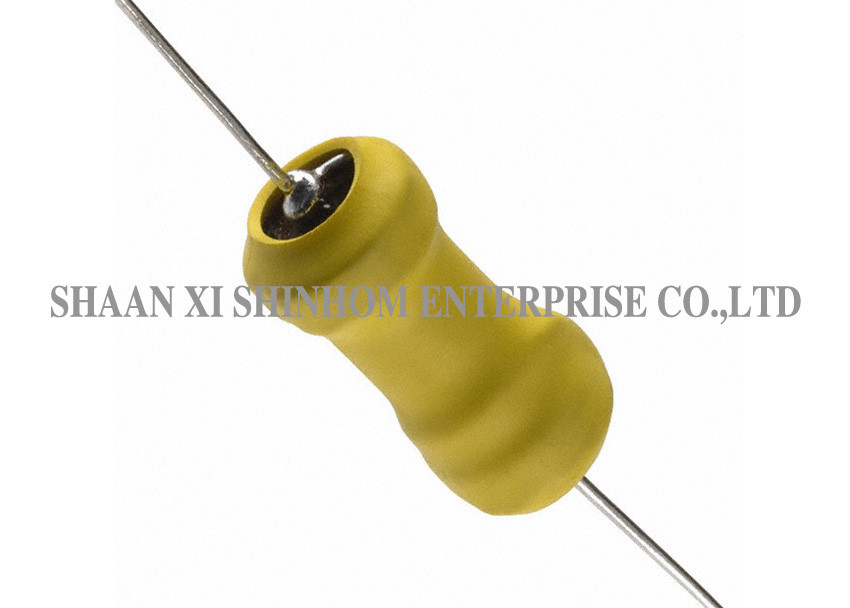

Lower RDC Magnetic Core Inductor Excellent Environmental Characteristics

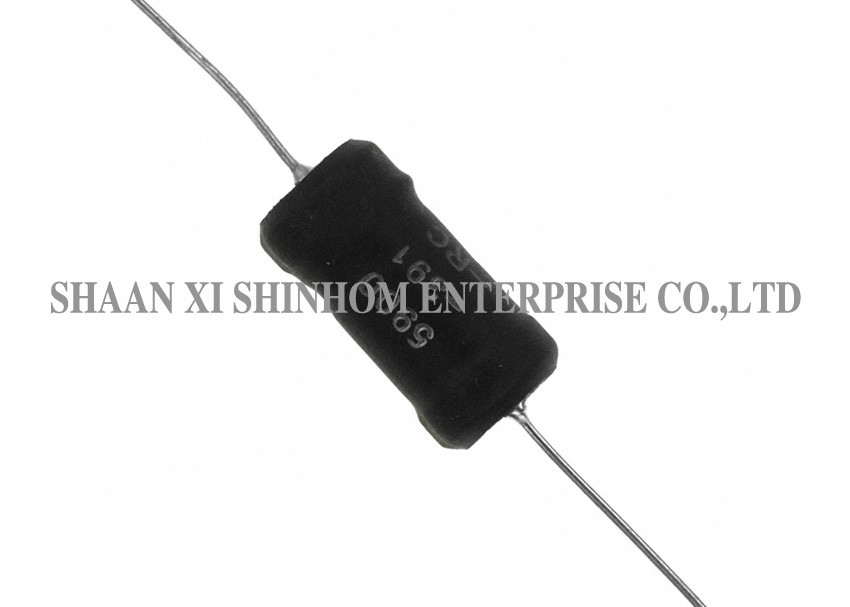

       Lower RDC Magnetic Core Inductor Excellent Environmental Characteristics





Note: Product specifications can be customized.
