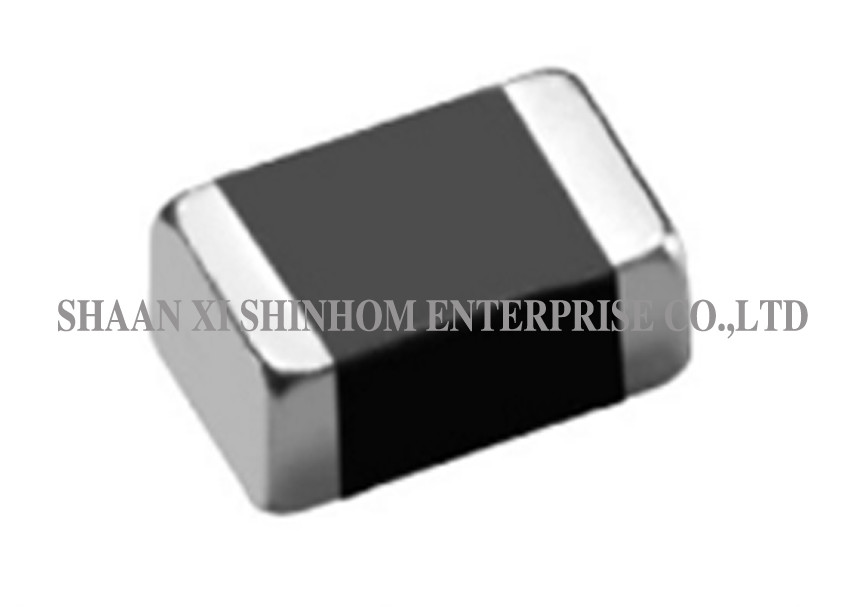

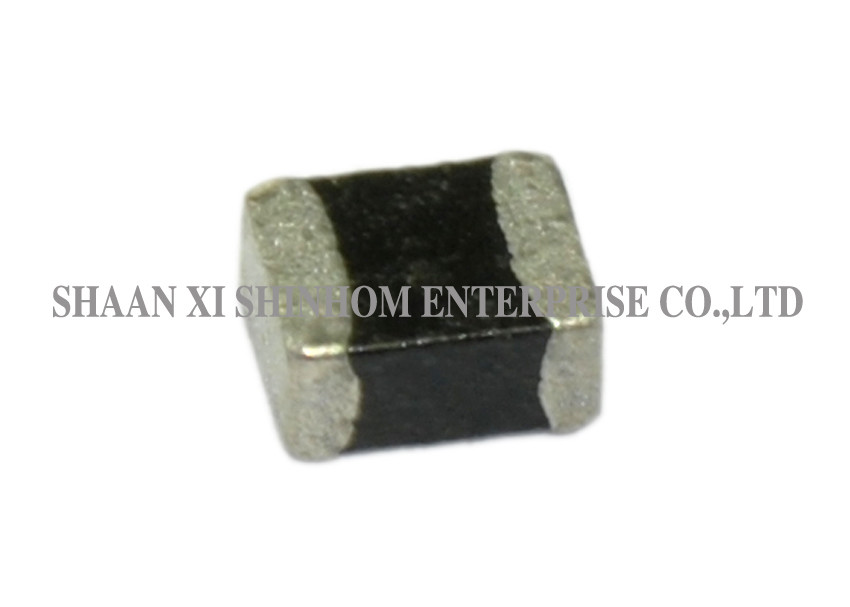

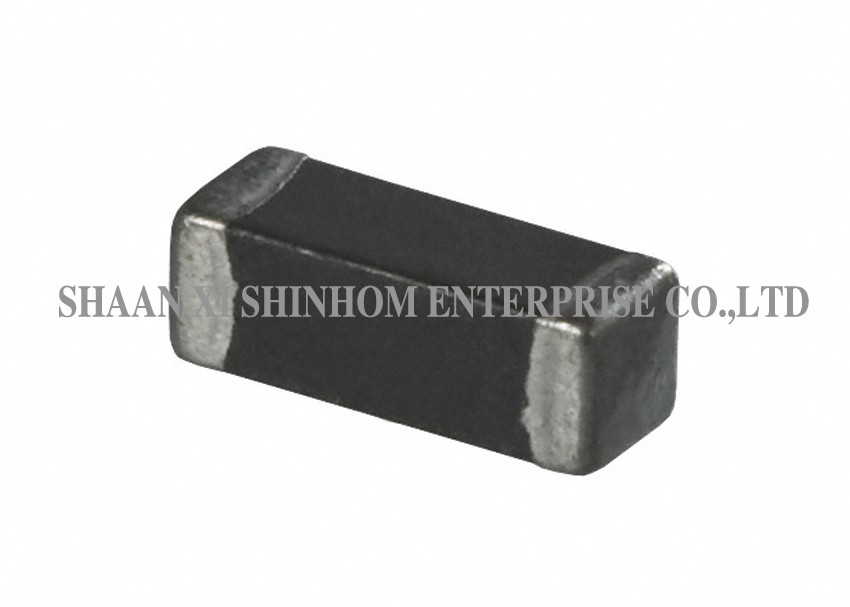

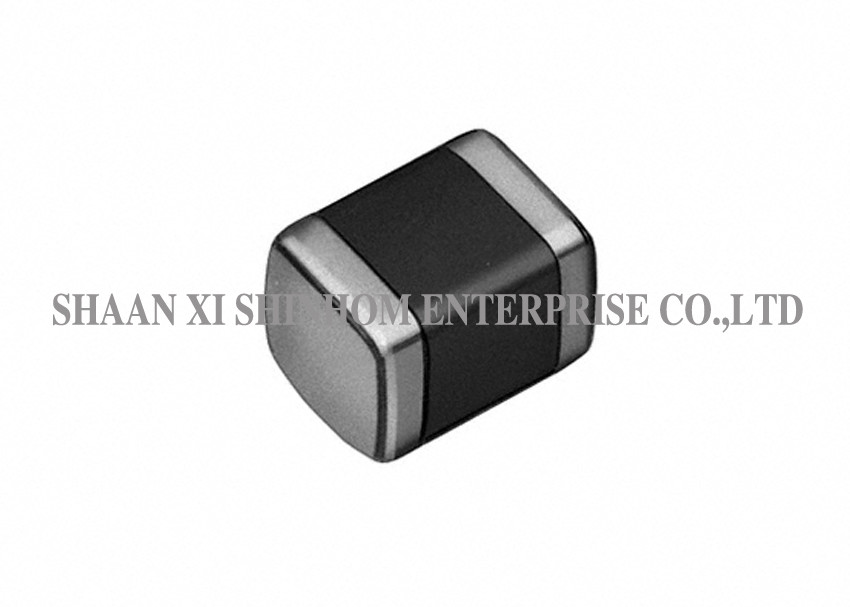

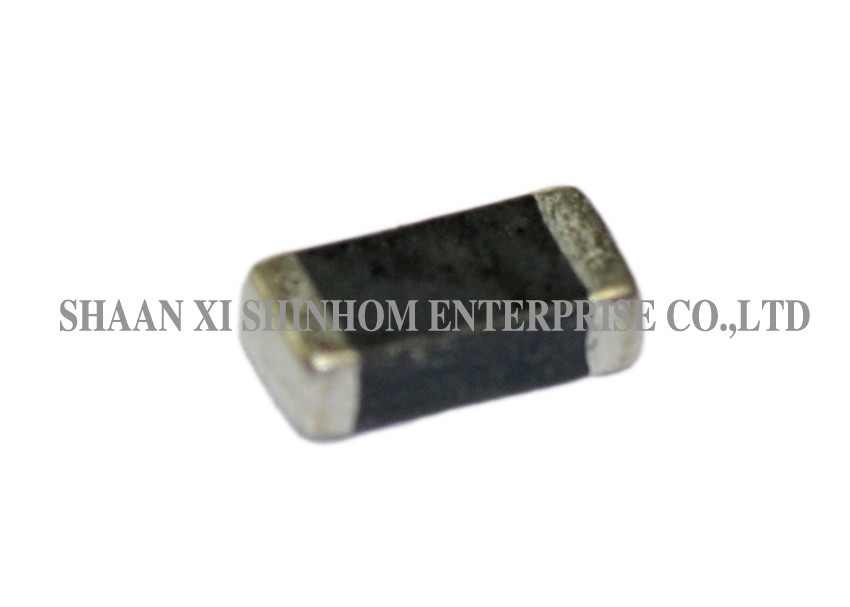

High Reliability Chip Power Inductor SMD Multi - Layer Excellent Solderability

High Reliability Chip Power Inductor SMD Multi - Layer Excellent Solderability
High Reliability Chip Power Inductor SMD Multi - Layer Excellent Solderability High Reliability Chip Power Inductor SMD Multi - Layer Excellent Solderability High Reliability Chip Power Inductor SMD Multi - Layer Excellent Solderability High Reliability Chip Power Inductor SMD Multi - Layer Excellent Solderability High Reliability Chip Power Inductor SMD Multi - Layer Excellent Solderability

Large Image :  High Reliability Chip Power Inductor SMD Multi - Layer Excellent Solderability Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AIML0603 Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Installation: SMT Size: 1.6*0.8*0.8mm
Application: Communication Device, Cell Phone ,GPS ,PDA Inductance: 47nH To 33uH
Type: Chip Inductor Current Range: 1mA-50mA
High Light:

chip power inductor

,

thin film inductor

AIML0603 Series chip inductors with low DCR,Multilayer Chip Inductor, Ferrite Bead,SMD multi-layer chip inductor



Features:

  • High reliability
  • Sizes 0402 / 0603 / 0805 / 1206 / 1210
  • Closed magnetic circuit
  • Avoids crosstalk
  • Excellent solderability
  • Counter measures for complying with FCC,VDE,CSA,VCCI and CE
  • Closed magnetic circuit avoids crosstalk
  • Suitable for high density installation and re-flow soldering

 Applcations:

  1. Personal Computers
  2. Portable Equipment
  3. CD-ROM, Hard Disk, Modem, Printers
  4. DSC, DVC, PDA, DVD and HDD
  5. Medical Equipment
  6. Testing/Measurement Equipment
  7. Printer Equipment
  8. Automatic Equipment Controller
  9. Converters
  10. Communication Device, Cell phone ,GPS ,PDA

Technical information:

  1. Testing:(Equivalents acceptable) lnductance & Q-HP4195A+HP41951
  2. DCR:VOAC-7412
  3. SRF:HP8753C
  4. Solderability:75% of the terminal
  5. electrode shall be covered Preheat:@ 180℃±5℃ for 2-3 minutes Solder temperature:230℃for 4 seconds ±1 second Flux:Emersion into methanol solution with Colophony for 3 to 5 seconds.
  6. IDC:The DC current at which tither the initial L value is decreased by 5% with the application of DC bias or the value of current at which the temperature of the element is increased by 20℃
  7. Operating Temperature:-40℃ to +100℃



High Reliability Chip Power Inductor SMD Multi - Layer Excellent Solderability 0



Notes: Product size and inductance can be customized
