300KHz - 3MHz Planar Transformer Maximum Thickness 7.4mm Low Leakage Inductance

Certification
Good quality Current Sense Transformer for sales
Good quality Current Sense Transformer for sales
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

I'm Online Chat Now

300KHz - 3MHz Planar Transformer Maximum Thickness 7.4mm Low Leakage Inductance

China 300KHz - 3MHz Planar Transformer Maximum Thickness 7.4mm Low Leakage Inductance supplier
300KHz - 3MHz Planar Transformer Maximum Thickness 7.4mm Low Leakage Inductance supplier 300KHz - 3MHz Planar Transformer Maximum Thickness 7.4mm Low Leakage Inductance supplier 300KHz - 3MHz Planar Transformer Maximum Thickness 7.4mm Low Leakage Inductance supplier 300KHz - 3MHz Planar Transformer Maximum Thickness 7.4mm Low Leakage Inductance supplier

Large Image :  300KHz - 3MHz Planar Transformer Maximum Thickness 7.4mm Low Leakage Inductance

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TP18

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Frequency: 300KHz To 3MHz Power: 30W
Pad Size: 19.6*18.0mm Thickness: 7.4mm
Operation Temperature: -40℃ To +125℃ Customized: Customized

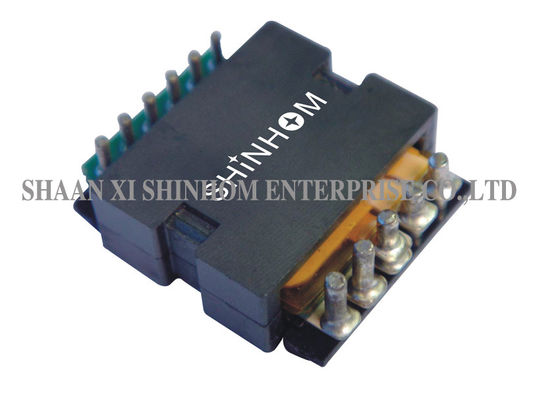

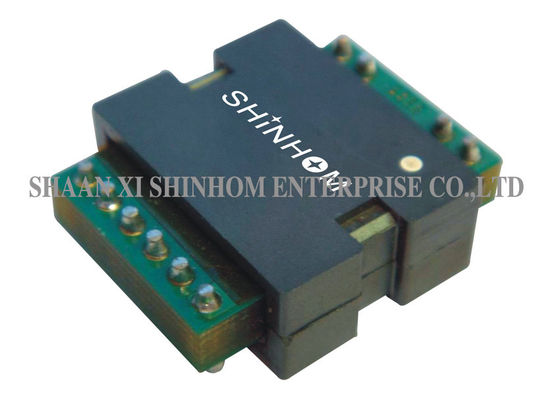

TP18 Series High frequency 30W Planar Transformer,High Frequency Power Transformer,Max. thickness 7.4mm



         This is a matrix of the winding configurations. They are ideally suited to hand between 15-30W of power supply on DC-CD converters application.





FEATURES:

  • Very low Leakage Inductance (less than 0.2% for un-gapped cores).
  • Cost effective and competitive prices.
  • Minimum Electromagnetic Interference (EMI).
  • High Creepage and Clearance distances between primary and
  • Applicable to all SMPS topologies.
  • Various mounting and terminals options (Horizontal, Vertical, Through-holes, SMT, Pins, Flying-cables and more).
  • Specially designed heat-dissipating Clasps.
  • Low-profile planar transformer
  • High-power planar transformer
  • High-frequency planar transformer
  • PCB planar transformer
  • Planar switching power transformer
  • Off the shelf SMT planar transformer



APPLICATIONS:

  • High efficiencies,high power density of 400 watts per cubic inch DC/DC converters.
  • For forward, full-bridge, half-bridge and push-pull DC/DC converters.
  • Input voltages between 18V and 75V, and output voltages from 18V down to 1.2V DC/DC converters.
  • Telecommunications, industrial control systems,
  • Automotive and heavy equipment vehicle systems



TECHNICAL INFORMATION:

  • The inductance is measured between Pin (1-2) at 100 kHz, 100 mVrms
  • The leakage inductance is measured in primary winding Pin(1-2) with secondary winding shorted.
  • All specifications typical at TA=25℃±5℃.
