High Reliability Low Profile Transformer 100W For Heavy Equipment Vehicle System

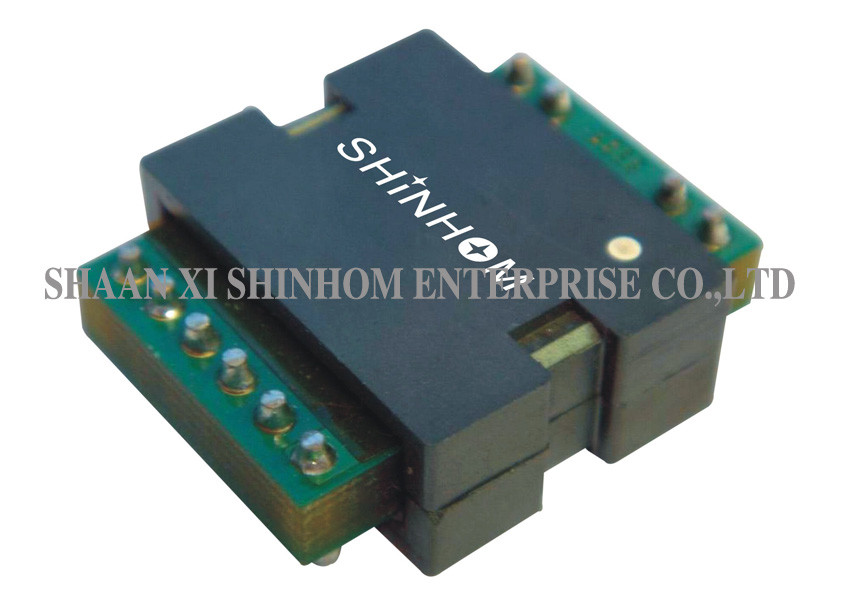

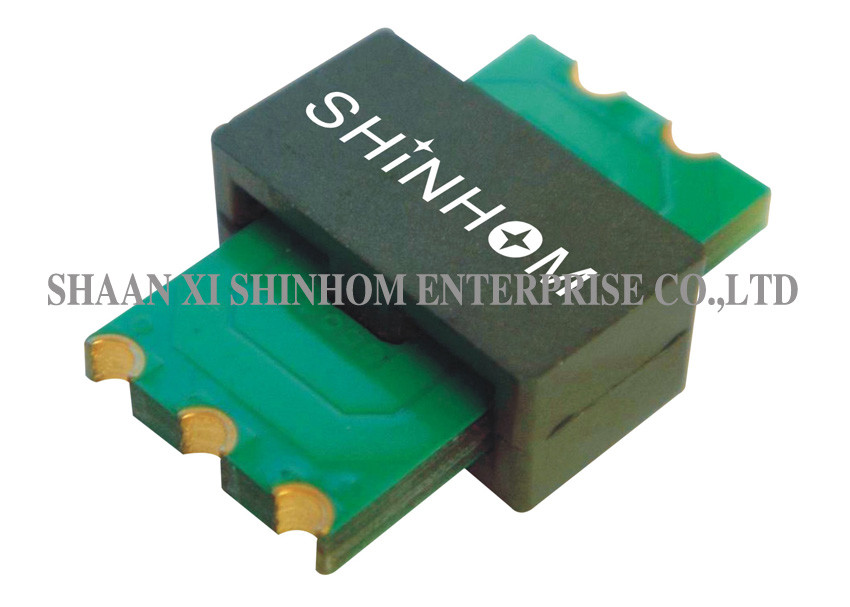

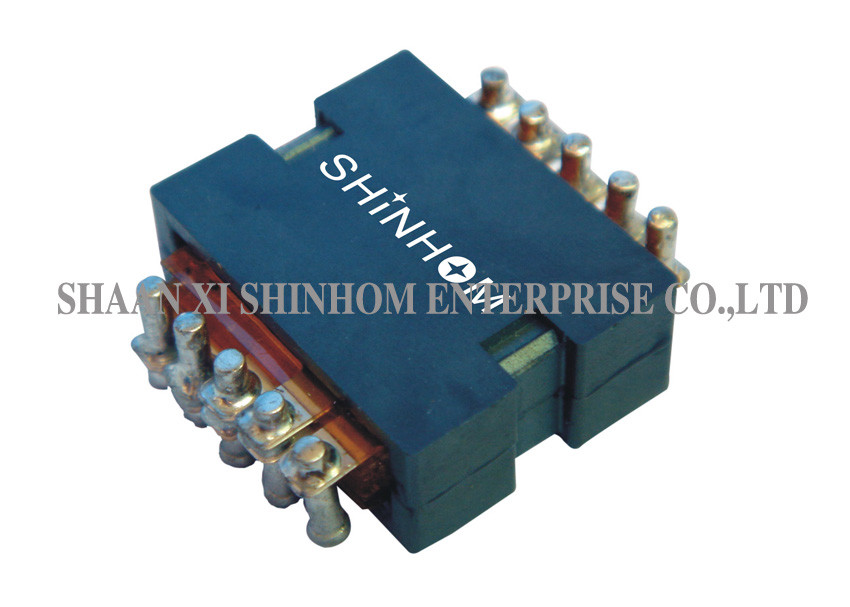

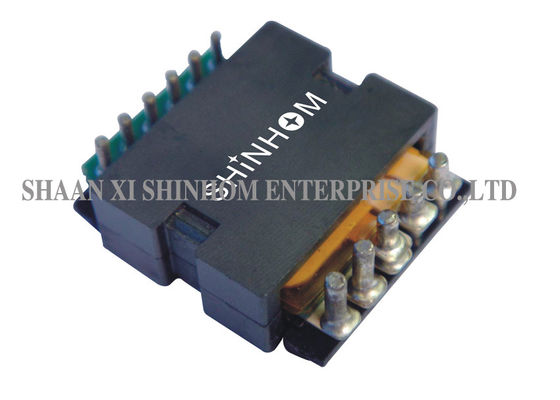

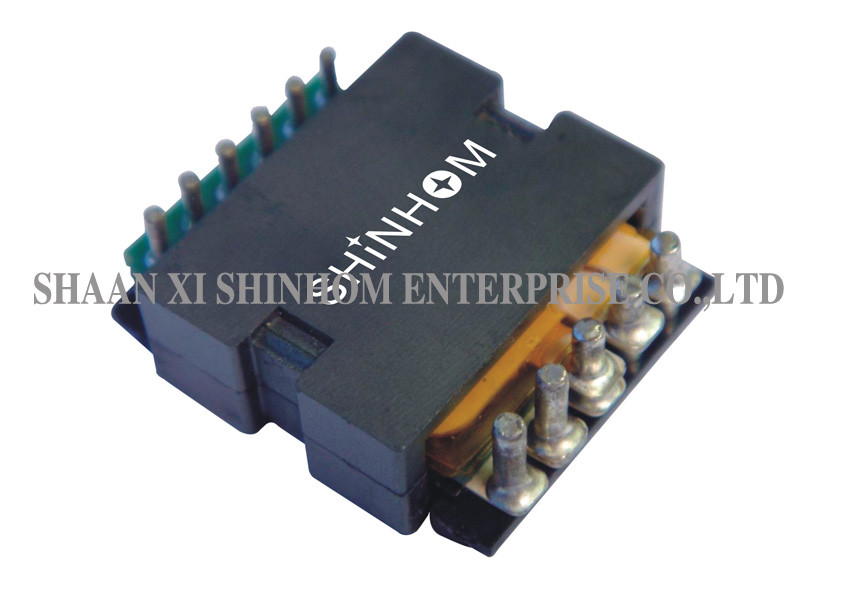

TP20A Series High frequency 100W Planar Transformer,High Frequency Power Transformer,Max. thickness 7.4mm

         This is a matrix of the winding configurations. They are ideally suited to hand between 75-100W of power supply on DC-CD converters application.

FEATURES:

• Power Rating Up to 100 Watts
• High Efficiency
• Footprint 20.12 mm×18.50 mm
• Lower Profile of 7.4 mm
• High Isolation (operational) 1500 Vdc
• High Frequency 200 kHz-700 kHz
• Operating Temperature -40℃ to +125℃
• Very low Leakage Inductance (less than 0.2% for un-gapped cores).
• Cost effective and competitive prices.
• Minimum Electromagnetic Interference (EMI).
• High Creepage and Clearance distances between primary and
• Applicable to all SMPS topologies.
• Various mounting and terminals options (Horizontal, Vertical, Through-holes, SMT, Pins, Flying-cables and more).
• Specially designed heat-dissipating Clasps.
• Low-profile planar transformer
• High-power planar transformer
• High-frequency planar transformer
• PCB planar transformer
• Planar switching power transformer
• Off the shelf SMT planar transformer

APPLICATIONS:

• High efficiencies,high power density of 400 watts per cubic inch DC/DC converters.
• For forward, full-bridge, half-bridge and push-pull DC/DC converters.
• Input voltages between 18V and 75V, and output voltages from 18V down to 1.2V DC/DC converters.
• Telecommunications, industrial control systems,
• Automotive and heavy equipment vehicle systems.

TECHNICAL INFORMATION:

• The inductance is measured between Pin (2-5) at 100 kHz, 100 mVrms
• The leakage inductance is measured in primary winding Pin(2-5) with secondary winding shorted.
• All specifications typical at TA=25℃±5℃.
