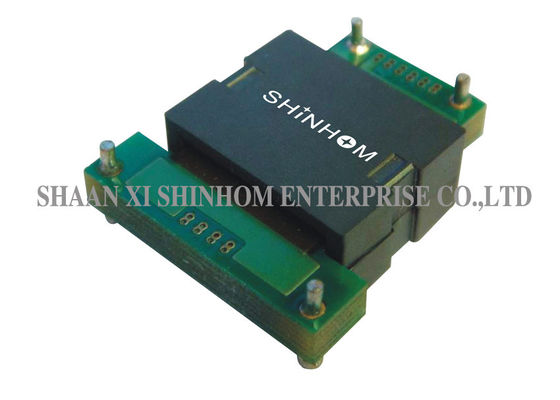

Planar Switching Power Transformer 75W For Industrial Control Systems

China Planar Switching Power Transformer 75W For Industrial Control Systems supplier
Planar Switching Power Transformer 75W For Industrial Control Systems supplier Planar Switching Power Transformer 75W For Industrial Control Systems supplier Planar Switching Power Transformer 75W For Industrial Control Systems supplier Planar Switching Power Transformer 75W For Industrial Control Systems supplier Planar Switching Power Transformer 75W For Industrial Control Systems supplier

Large Image :  Planar Switching Power Transformer 75W For Industrial Control Systems

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TP20B

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Frequency: 200KHz To 700KHz Power: 75W
Pad Size: 20.3*18.5mm Thickness: 6.6mm
Operation Temperature: -40℃ To +125℃ Customized: Customized

TP20B Series High frequency 75W Planar Transformer,PCB Mounting Planar Transformer,Max. thickness 6.6mm



         This is a matrix of the winding configurations. They are ideally suited to hand between 35-75W of power supply on DC-CD converters application.





FEATURES:

  • Power Rating Up to 75 Watts
  • High Efficiency of Over 98%
  • Footprint 20.3 mm×18.50 mm
  • Lower Profile of 6.6 mm
  • High Isolation (operational) 1500 Vdc
  • High Frequency 200 kHz-700 kHz
  • Operating Temperature -40℃ to +125℃
  • Very low Leakage Inductance (less than 0.2% for un-gapped cores).
  • Cost effective and competitive prices.
  • Minimum Electromagnetic Interference (EMI).
  • High Creepage and Clearance distances between primary and
  • Applicable to all SMPS topologies.
  • Various mounting and terminals options (Horizontal, Vertical, Through-holes, SMT, Pins, Flying-cables and more).
  • Specially designed heat-dissipating Clasps.
  • Low-profile planar transformer
  • High-power planar transformer
  • High-frequency planar transformer
  • PCB planar transformer
  • Planar switching power transformer
  • Off the shelf SMT planar transformer



APPLICATIONS:

  • High performance DC/DC converters.
  • High efficiencies up to over 98 percent, high power density of 500 watts per cubic inch DC/DC converters.
  • For forward, full-bridge, half-bridge and push-pull DC/DC converters.
  • Input voltages between 18V and 75V, and output voltages from 18V down to 1.2V DC/DC converters.
  • Telecommunications, industrial control systems,
  • Automotive and heavy equipment vehicle systems



TECHNICAL INFORMATION:

  • The inductance is measured between Pin (2-5) at 100 kHz, 100 mVrms
  • The leakage inductance is measured in primary winding Pin(2-5) with secondary winding shorted.
  • All specifications typical at TA=25℃±5℃.



Planar Switching Power Transformer 75W For Industrial Control Systems

Planar Switching Power Transformer 75W For Industrial Control Systems

Planar Switching Power Transformer 75W For Industrial Control Systems





Planar Switching Power Transformer 75W For Industrial Control Systems
