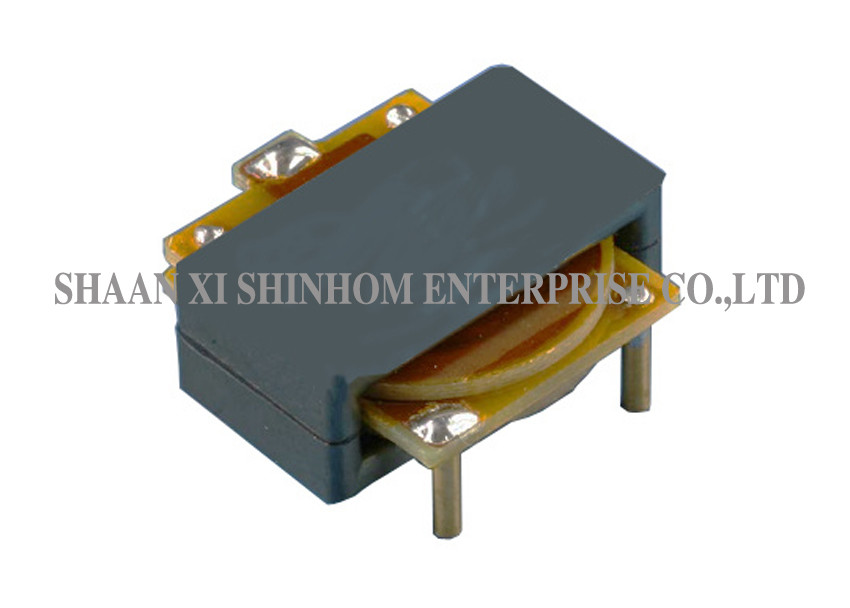

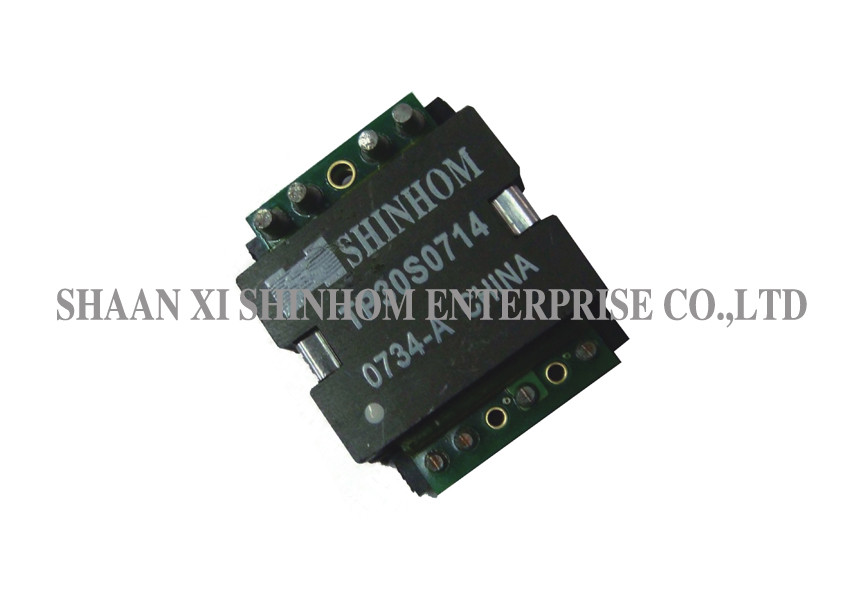

Portable Flat Transformer 180W Minimum Electromagnetic Interference

Name: Portable Flat Transformer 180W Minimum Electromagnetic Interference
Brand: Shinhom
SKU: TP26D0708
Price: 1.00 USD
Availability: InStock
Rating: 5 (125 reviews)

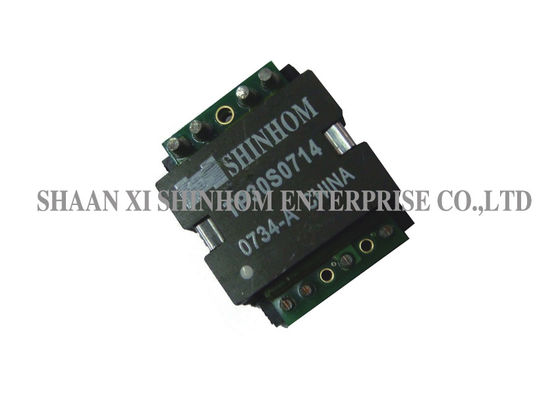

Large Image : Portable Flat Transformer 180W Minimum Electromagnetic Interference Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	TP26D0708

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	100000/MONTH

Contact Now

Detailed Product Description

Frequency:	50KHz To 3000KHz	Power:	180W
Pad Size:	29.5 Mm×26.7 Mm	Thickness:	11mm
Operation Temperature:	-40℃ To +125℃	Customized:	Customized
High Light:	flat pack transformer , low profile transformer

TP26D0708 High frequency 180W Planar Transformer,High Frequency Power Transformer,Max. thickness 11mm

FEATURES:

Power Rating Up to 180 Watts
High Efficiency
Footprint 29.5 mm×26.7 mm
Lower Profile of 11 mm
High Isolation (operational) 1500 Vdc
High Frequency 50 kHz-3000 kHz
Operating Temperature -40℃ to +125℃
Very low Leakage Inductance (less than 0.2% for un-gapped cores).
Cost effective and competitive prices.
Minimum Electromagnetic Interference (EMI).
High Creepage and Clearance distances between primary and
Applicable to all SMPS topologies.
Various mounting and terminals options (Horizontal, Vertical, Through-holes, SMT, Pins, Flying-cables and more).
Specially designed heat-dissipating Clasps.

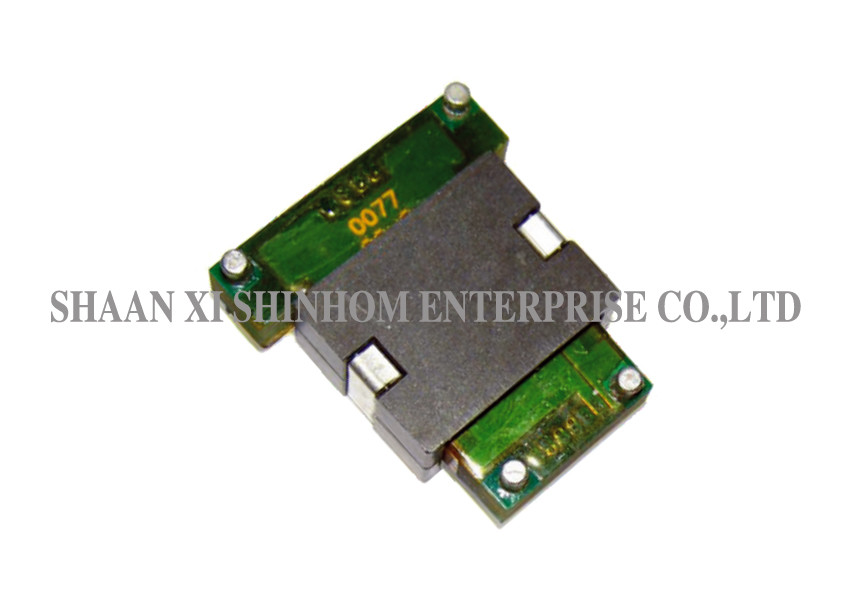

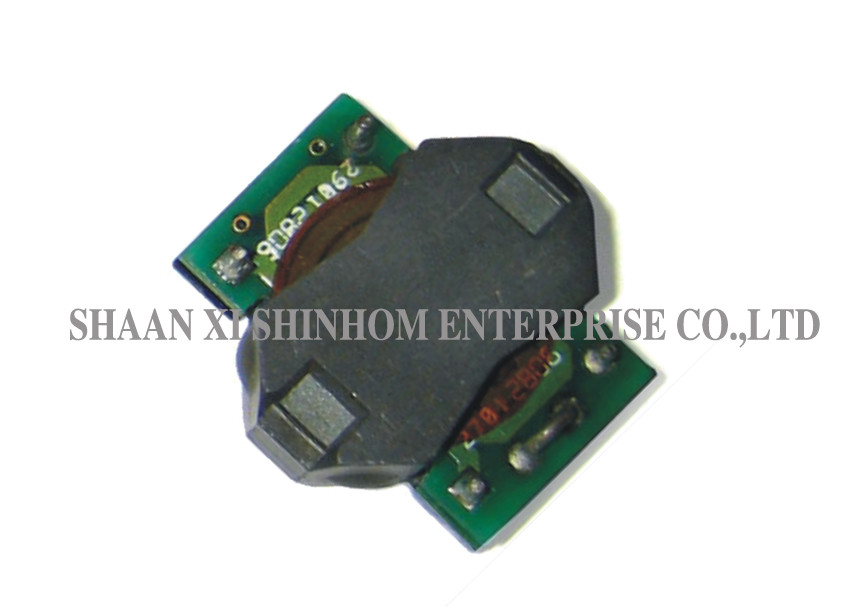

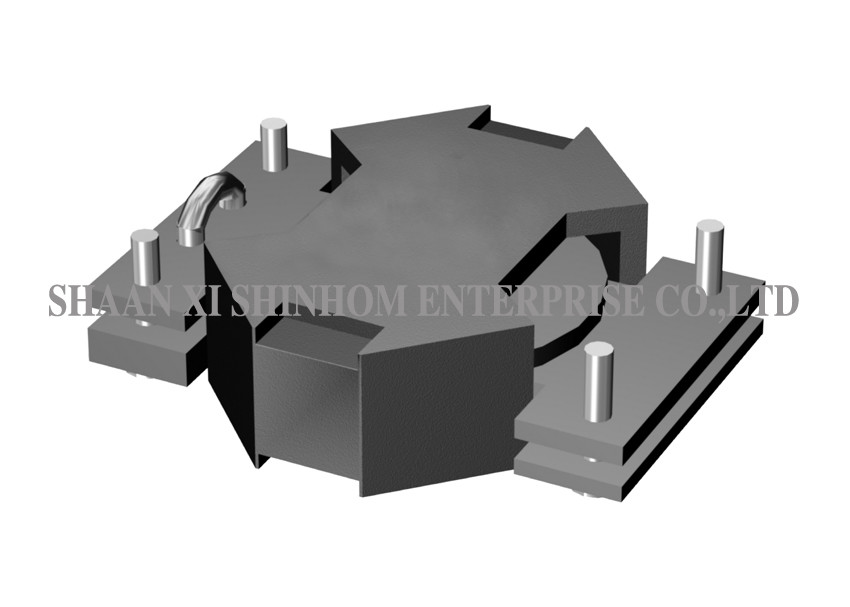

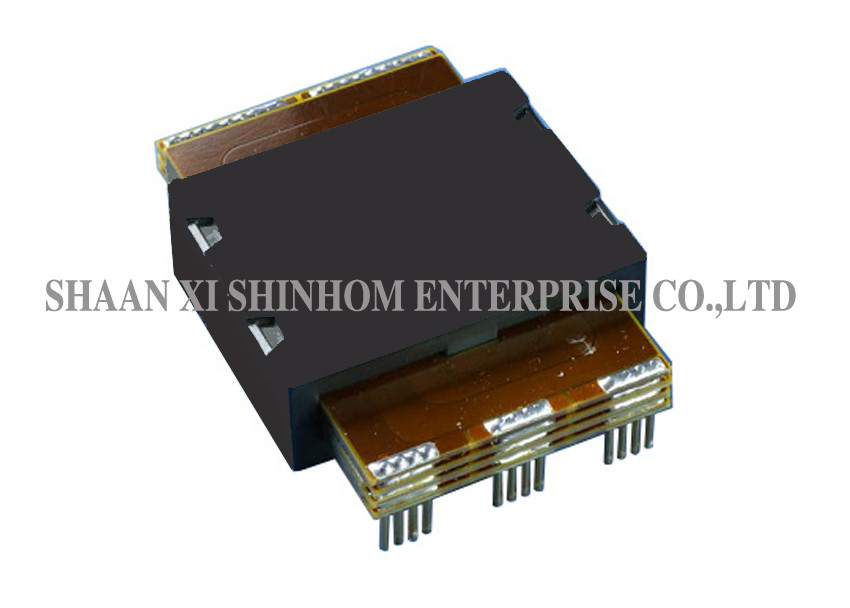

Low-profile planar transformer
High-power planar transformer
High-frequency planar transformer
PCB planar transformer
Planar switching power transformer

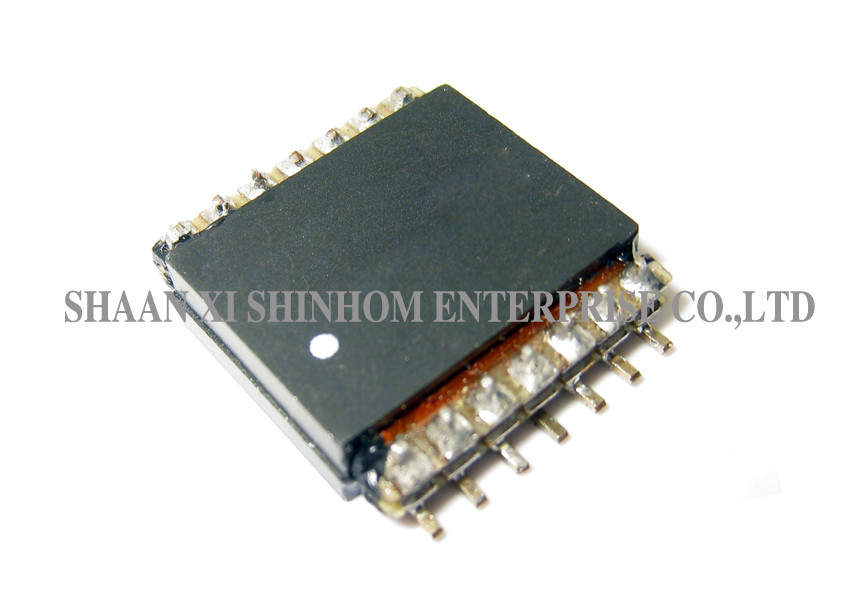

Off the shelf SMT planar transformer

ELECTRIC SPECIFICATION

NO.	ITEM	TERMINAL	SPEC	REMARKS
1	INDUCTANCE	2-4	40uH-60uH	LCR METER AT 100KHz / 0.1V
1	LEAKAGE INDUCTANCE	2-4 (SHORT OTHER PINS)	300nHMAX	LCR METER AT 100KHz / 0.1V
2	HI-POT TEST	PIN1-PIN2	AC1500V,2s,5mA	CS2672 or EQU
2	HI-POT TEST	PIN7-PIN10	AC1500V,2s,5mA	CS2672 or EQU
3	DCR	2-4	10.5mΩMAX	YY2511 or EQU
		7-8&10-11	2mΩMAX
		1-6	21mΩMAX
