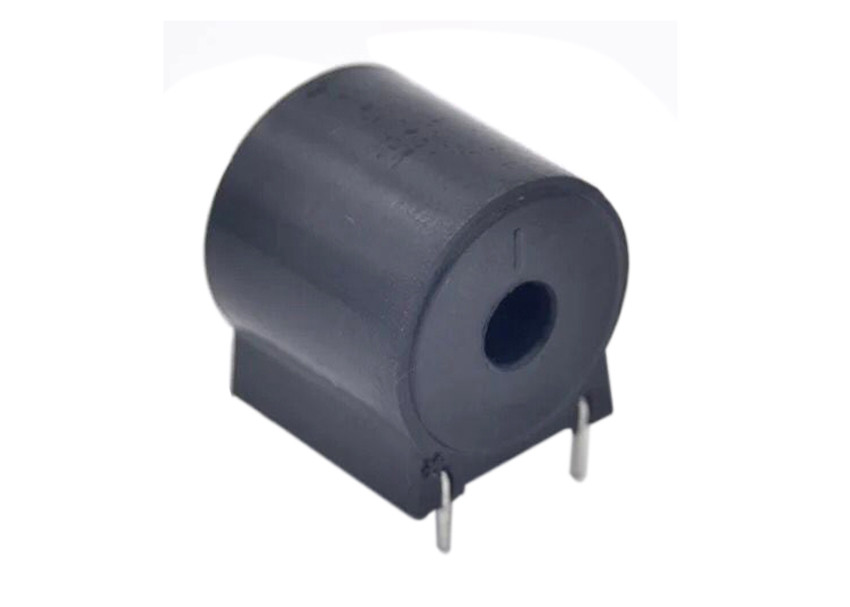

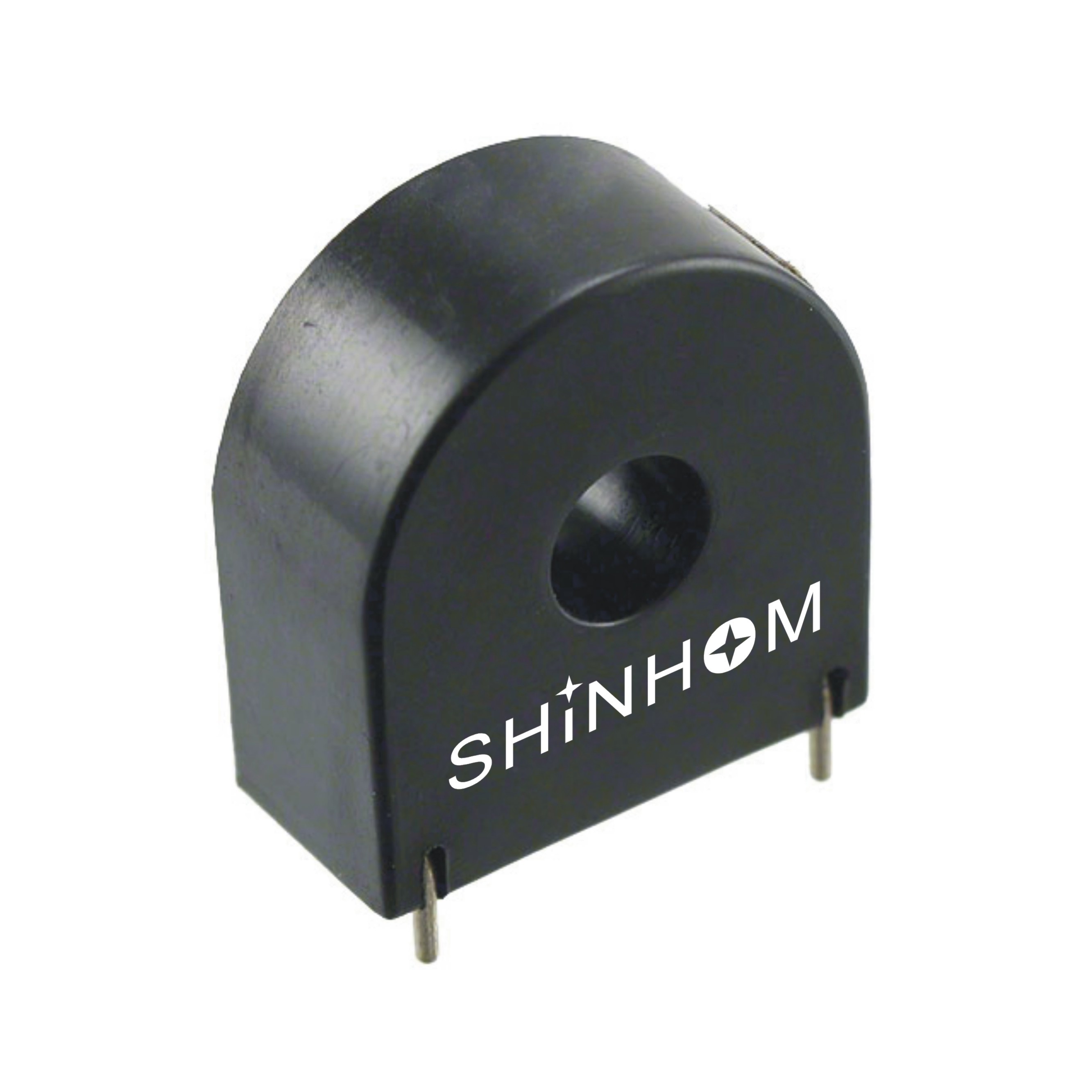

High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole

High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole
High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole

Large Image :  High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACST010-013 Series
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Turns: 1:100,1:2500 Installation: PCB Mounting
Inner Hole Size: 7mm ~ 18.5mm Frequency: 50Hz~400Hz
Operating Temperature: -25℃ To +85℃ Storage Temperature: -40℃ To +105℃
High Light:

ct current transformer

,

high frequency current transformer

ACST010-013 Series High Accuracy​ PCB Mounting High Frequency Current Transformer,Wide inner Hole



            Current transformers comprises various versions for a large number of applications. Strong insulation voltage between the primary and the secondary, up to 4kV/1min, without breakdown. The insulation resistance should be bigger than 1000MΩ between the primary and secondary windings.Best-performance core designs in close cooperation with our customers. Technical support including simulation software to optimize the circuit topology.





FEATURES:

• AC measurement capacity is 20% higher than rated current

• Negligible small amplitude error

• Extreme linear, easily compensable phase curve

• Low temperature dependence

• It accords with IEC 60044-1 0.1class, 0.2class, 0.5class

• RoHS Compliance is available on request





TECHNICAL INFORMATION:

· Working Frequency range 20Hz~400Hz
· Insulation resistance: 500V DC >100MΩ
· Hi-Pot : 4000V 1mA 60S
· Temperature range: -25℃ to +85℃
· Storage Temperature: -40℃ to +105℃
· Resistance to soldering heat:260℃ for 10 seconds
· Marking: Part number and date code



High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole 0

Note:  Product specifications can be customized.



High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole 1High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole 2High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole 3
