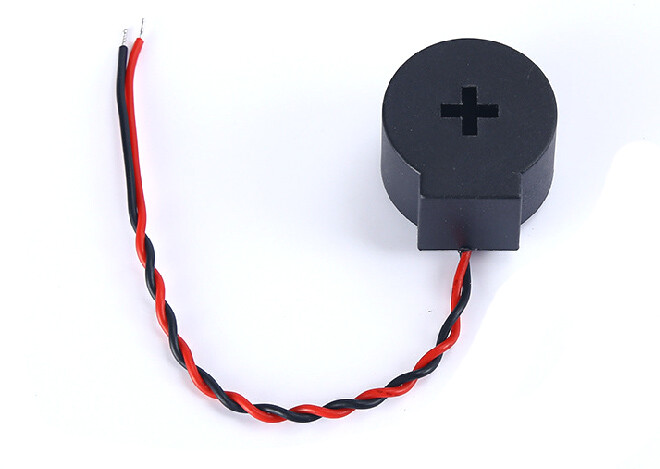

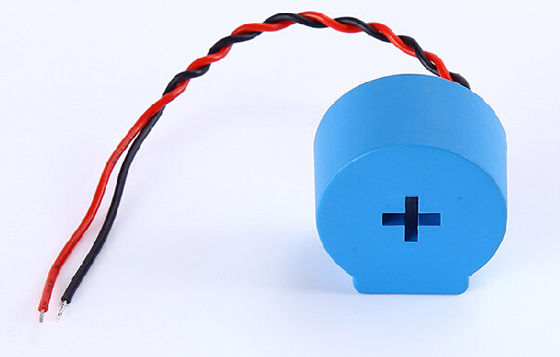

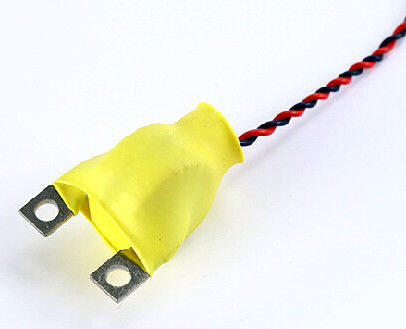

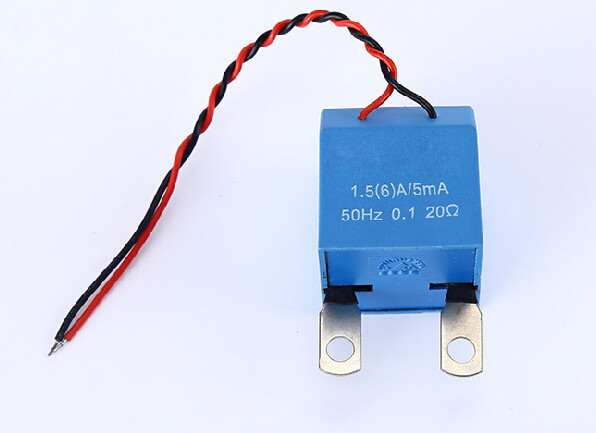

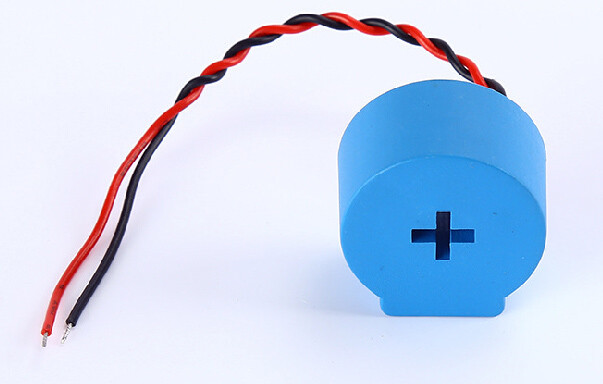

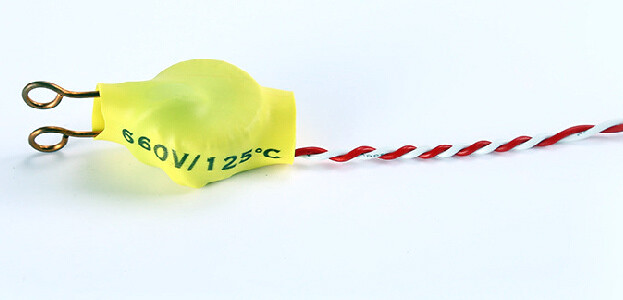

Output Lead Wire Miniature Current Transformer For Electronical Monitoring System

Output Lead Wire Miniature Current Transformer For Electronical Monitoring System
Output Lead Wire Miniature Current Transformer For Electronical Monitoring System Output Lead Wire Miniature Current Transformer For Electronical Monitoring System Output Lead Wire Miniature Current Transformer For Electronical Monitoring System Output Lead Wire Miniature Current Transformer For Electronical Monitoring System Output Lead Wire Miniature Current Transformer For Electronical Monitoring System

Large Image :  Output Lead Wire Miniature Current Transformer For Electronical Monitoring System Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Model Number: CT Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Certification: CE IEC RoHS Turns Ratio: 1:1000,1:2000,1:2500
Frequency: 50 -2.5KHz Standard: IEC60076
Operating Temperature: -40℃ To +85℃ Storage Temperature: -40℃ To +85℃
High Light:

ct current transformer

,

high frequency current transformer

CT Series Output Lead Wire Miniature Current Transformer



FEATURES:



· All enclosed design, good performance of mechanical and insulation.
· Pin design, easy to installate in PCB.
· This series of CTs have small size that can be used as separate.
· Linear output with high accuracy current.
· Smalll size, light weight, standard hole easy to installation, Normal specifications and parameters as follow.





COMMON APPLICATIONS:



· AC energy Meter Power transducer RTU
· Protection current transformer
· AC kilowatt hour meter
· Electronical monitoring system

· Suitable for single-phase electricity meter as well as anti-tampering electricity meter



TECHNICAL INFORMATION:



· Maximum continuous primary current 4 x rated current
· Storage Temperature: -45℃ to +85℃
· Operating temperature general purpose & nickel: -40℃ to +85℃
· Operating temperature high frequency: -40℃ to +65℃
· Marking: Part number and date code





Notes: Product specifications can be customized
