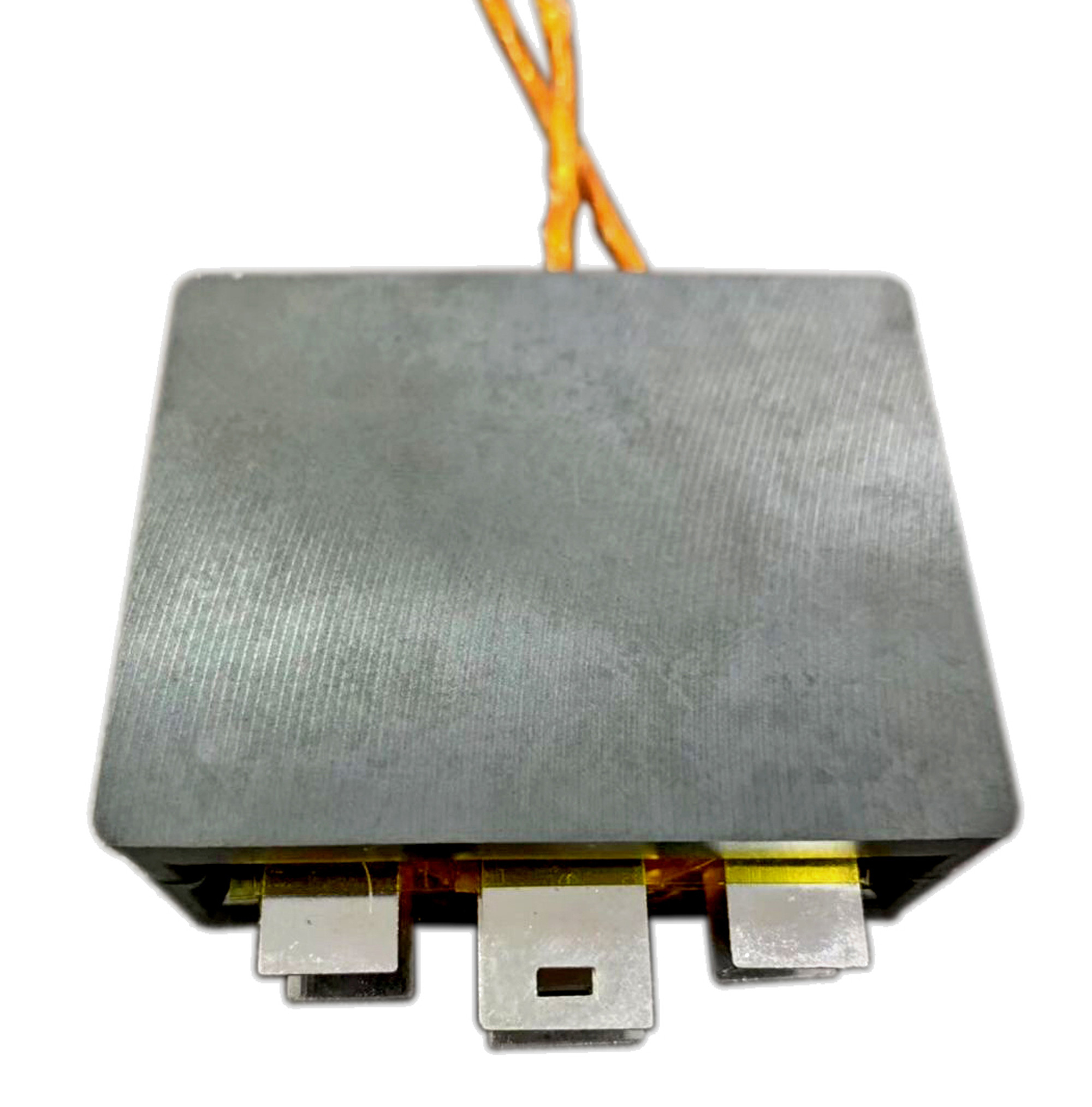

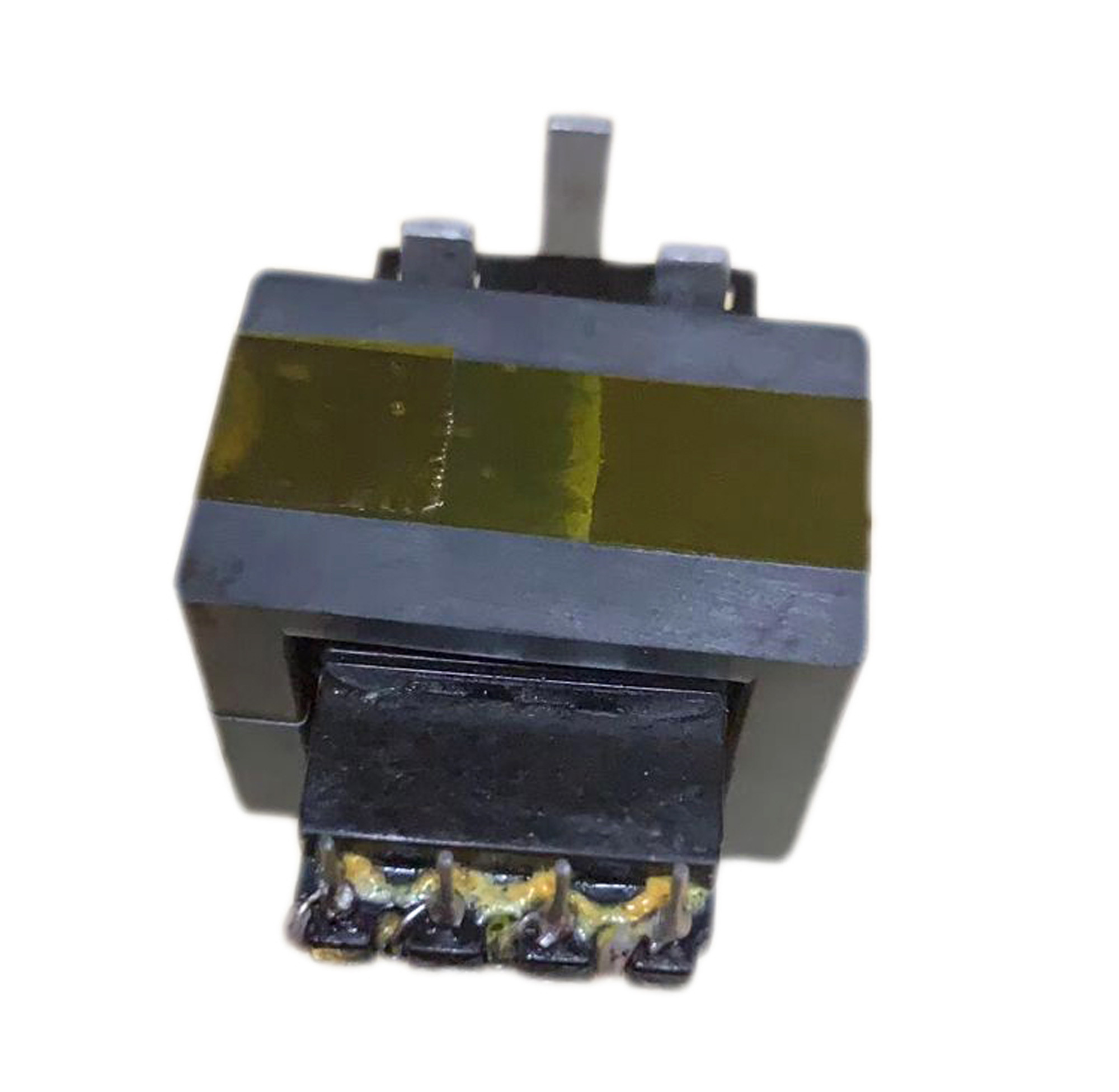

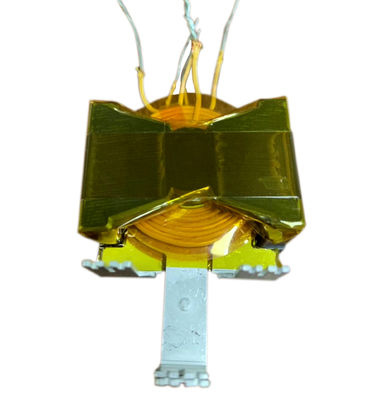

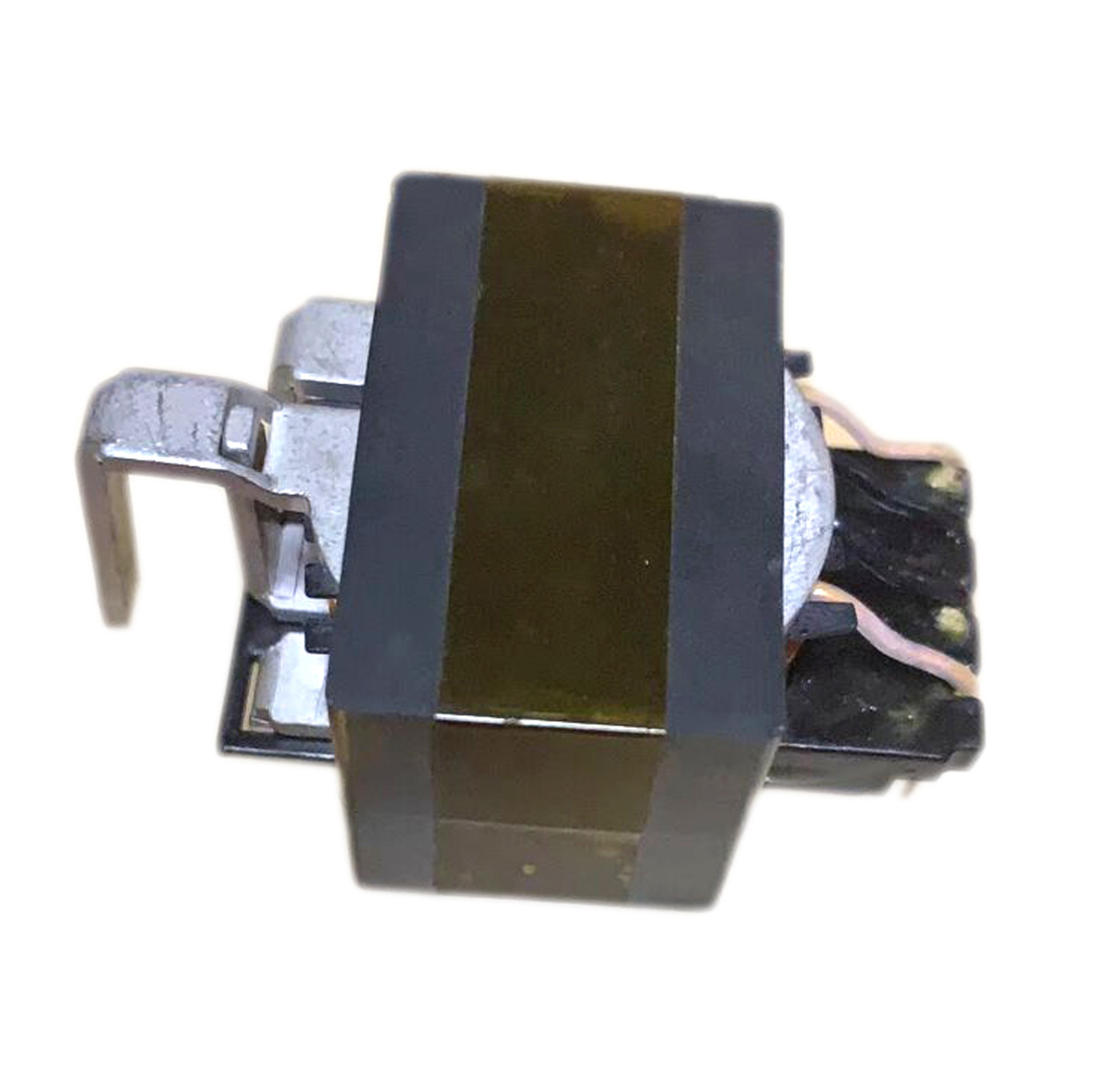

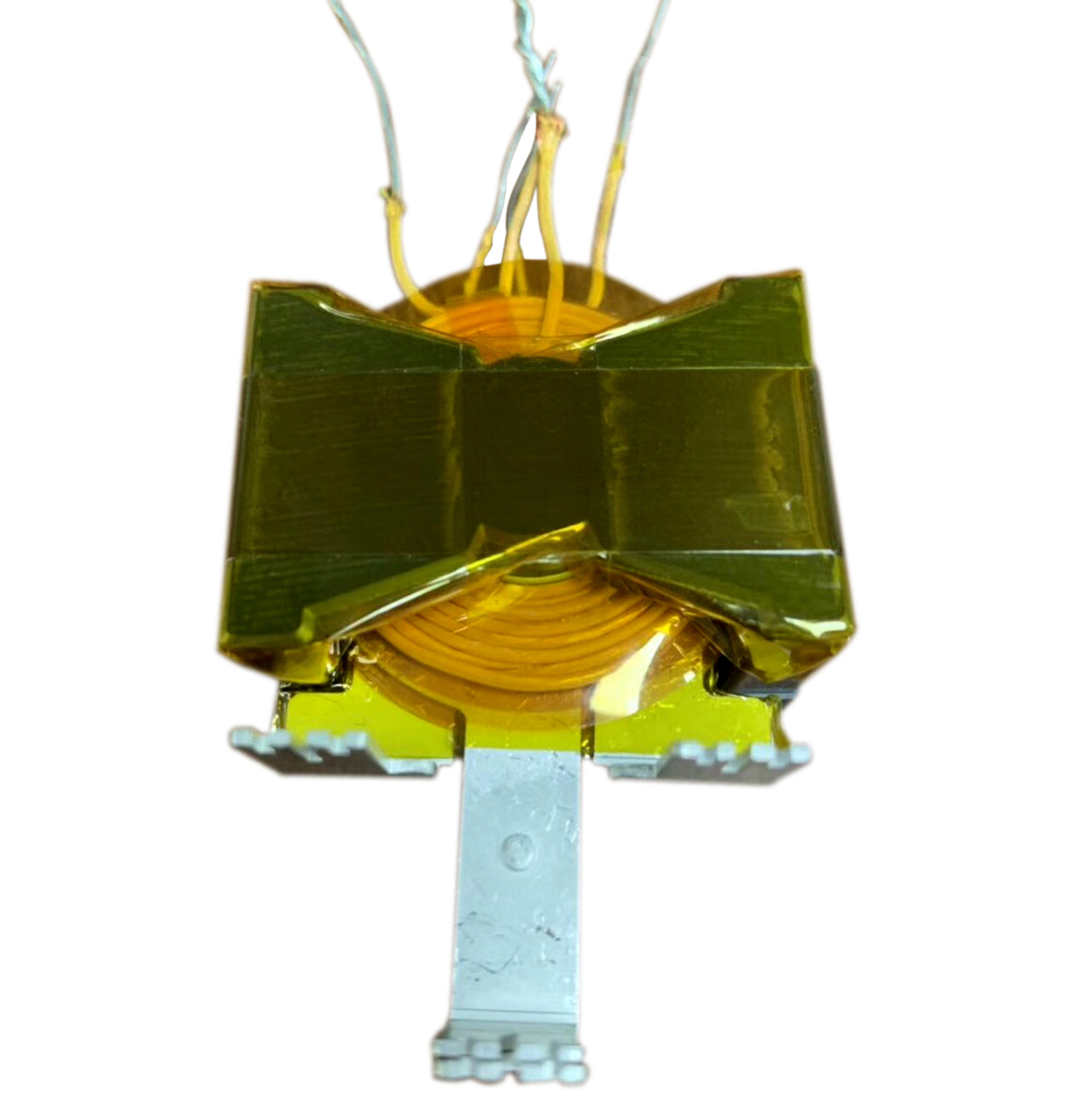

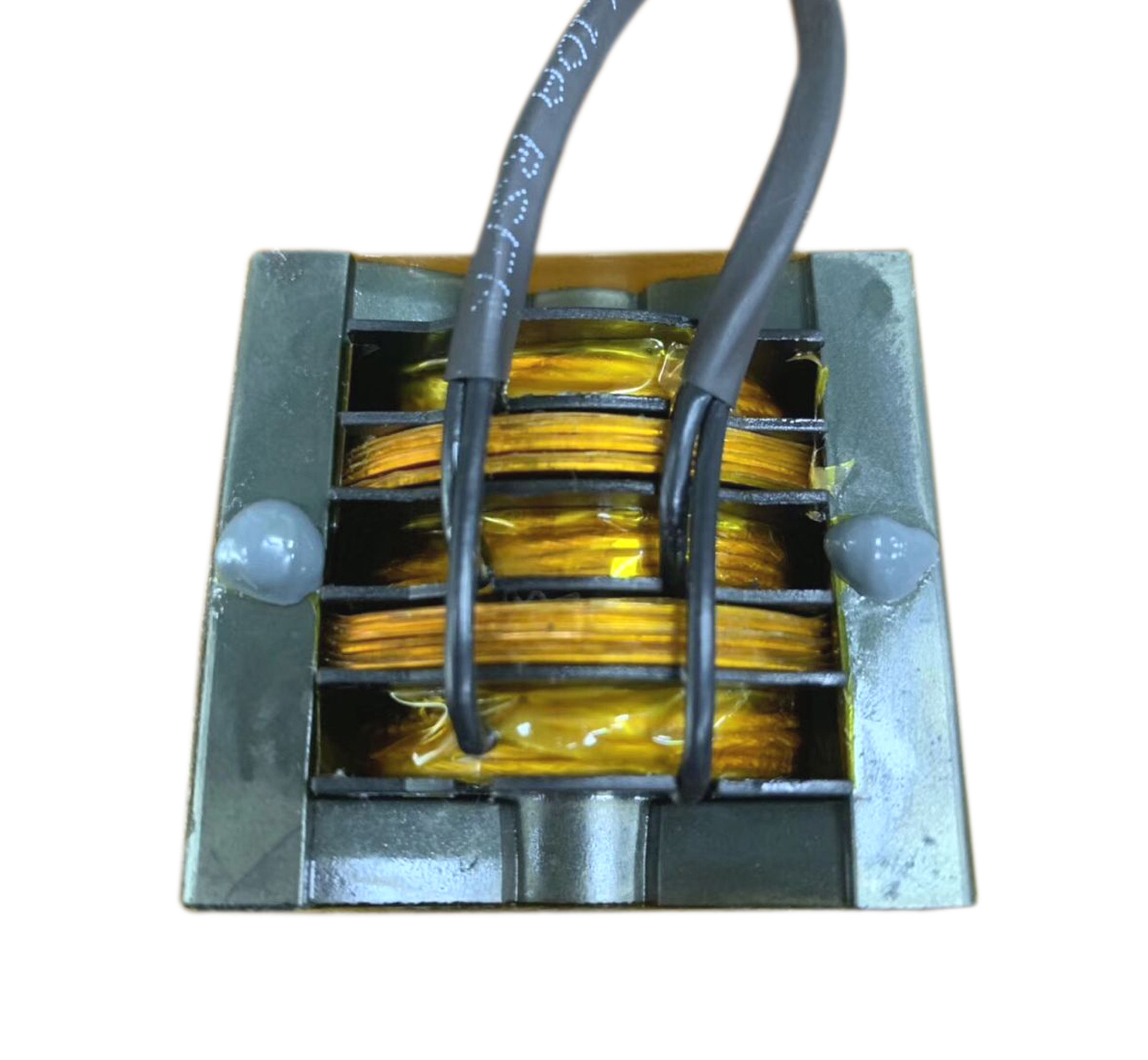

10W - 120KW Planar Power Transformer High Frequency For Telecommunications

China 10W - 120KW Planar Power Transformer High Frequency For Telecommunications supplier
10W - 120KW Planar Power Transformer High Frequency For Telecommunications supplier 10W - 120KW Planar Power Transformer High Frequency For Telecommunications supplier 10W - 120KW Planar Power Transformer High Frequency For Telecommunications supplier 10W - 120KW Planar Power Transformer High Frequency For Telecommunications supplier 10W - 120KW Planar Power Transformer High Frequency For Telecommunications supplier

Large Image :  10W - 120KW Planar Power Transformer High Frequency For Telecommunications

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TP Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Frequency: High Frequency Power: 10W To 120KW
Installation: SMD LEAD Hi-Pot: 1500Vdc
Operation Temperature: -40℃ To +125℃ Customized: Customized

High frequency 10W to 120KW Planar Transformer,Planar switching power transformer​





FEATURES:

  • Power Rating 10W-120KW
  • High Efficiency
  • High Isolation (operational) 1500 Vdc
  • Operating Temperature -40℃ to +125℃
  • Very low Leakage Inductance (less than 0.2% for un-gapped cores).
  • Cost effective and competitive prices.
  • Minimum Electromagnetic Interference (EMI).
  • High Creepage and Clearance distances between primary and
  • Applicable to all SMPS topologies.
  • Various mounting and terminals options (Horizontal, Vertical, Through-holes, SMT, Pins, Flying-cables and more).
  • Specially designed heat-dissipating Clasps.
  • Low-profile planar transformer
  • High-power planar transformer
  • High-frequency planar transformer
  • PCB planar transformer
  • Planar switching power transformer
  • Off the shelf SMT planar transformer



APPLICATIONS:

  • High efficiencies,high power density of 400 watts per cubic inch DC/DC converters.
  • For forward, full-bridge, half-bridge and push-pull DC/DC converters.
  • Input voltages between 18V and 75V, and output voltages from 18V down to 1.2V DC/DC converters.
  • Telecommunications, industrial control systems,
  • Automotive and heavy equipment vehicle systems.
  • High-speed rail, rail transit, aircraft and ships.
