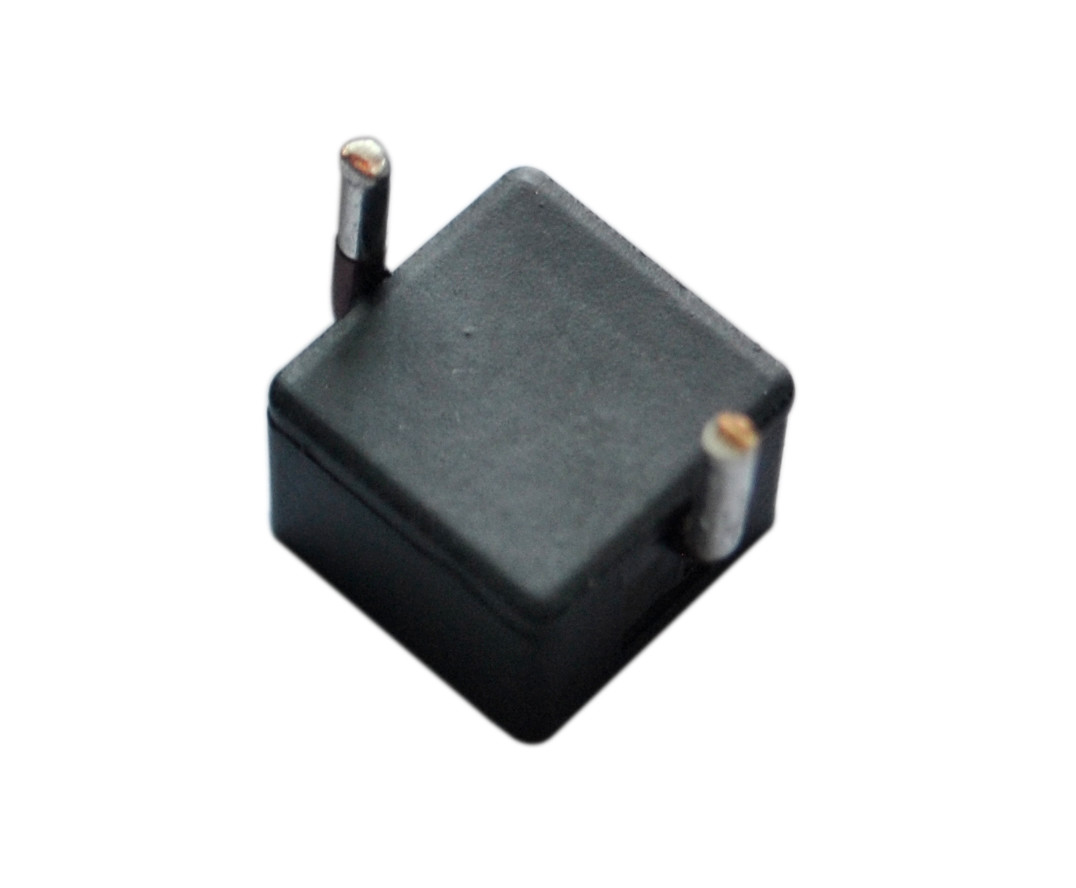

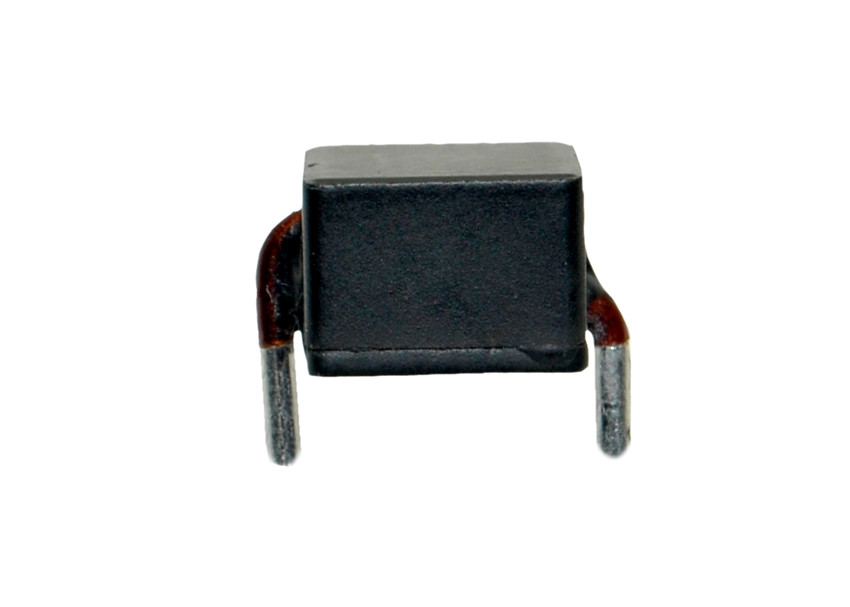

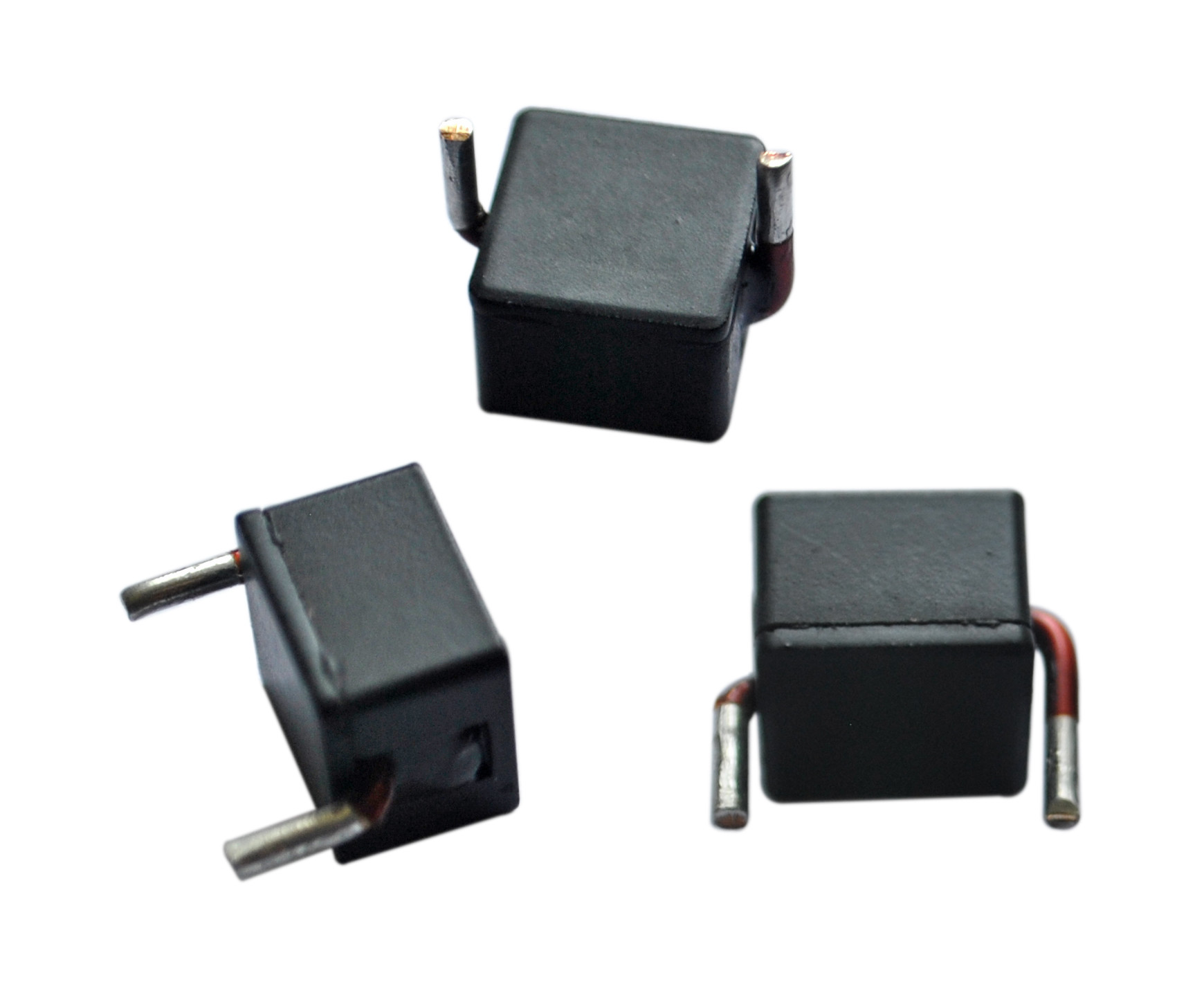

Mini Electronics Component Shielded Smd Power Inductors Ultra Low Buzz Noise

Mini Electronics Component Shielded Smd Power Inductors Ultra Low Buzz Noise
Mini Electronics Component Shielded Smd Power Inductors Ultra Low Buzz Noise Mini Electronics Component Shielded Smd Power Inductors Ultra Low Buzz Noise Mini Electronics Component Shielded Smd Power Inductors Ultra Low Buzz Noise

Large Image :  Mini Electronics Component Shielded Smd Power Inductors Ultra Low Buzz Noise Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HQ1108
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Est Frequency: 100KHz,0.1V Inductance Range: 0.14uH To 2.25uH
Current Range: 14A To 50A Size: 15.5mm X 11mm X 8mm
Operating Temperature: -40℃ - +105℃ Inductor Value: Fixed Inductor
High Light:

high current inductors chokes

,

smd power choke





HQ1108 Series high current power inductors,mini electronics component Custom,Iron core shielded,2.25uH 50A







FEATURES:
Lowest DCR/μH
Height:8mm Max
Footprint:15.5mm x 11mm Max
Current Rating:up to 50Apk
Inductance Range: 0.14µH to 2.25µH
Handles high transient current spikes without saturation
Ultra low buzz noise, due to composite construction
Compliant to RoHS directive 2002/95/EC




APPLCATIONS:

  • PDA/notebook/desktop/server applications
  • High current POL converters
  • Low profile, high current power supplies
  • Battery powered devices
  • DC/DC converters in distributed power systems
  • DC/DC converter for Field Programmable Gate Array (FPGA)



NOTES:.

  • Test Frequency : 100KHz / 0.1Vdc
  • Testing Instrument : L:HP4284A, CH11025,CH3302, CH1320, CH1320S LCR METER/Rdc:CH16502, Agilent33420A MICRO OHMMETER.
  • Heat Rated Current (Irms) will cause the coil temperature rise approximately,△T=40℃ without core loss.
  • Saturation Current (Isat) will cause L0 to drop approximately 10%
  • The part temperature (ambient + temp rise) should not exceed 125℃ under worst case operating conditions. Circuit design, component, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.
  • Operating Temperature: -40℃ - +105℃.
  • Storage Temperature: -40℃ - +105℃.







Note: Product specifications can be customized.
