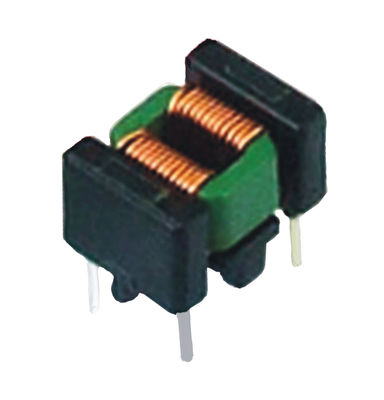

Single Phase Common Mode Coil Ferrite Hollow Square Core For Line Filters

High Frequency Flat wire high current common mode chokes Coil and the inductance can be customized

FEATURES:

• Rated voltage (V): 85 to 265V AC, 50/60Hz
• Turns ratio: n1: n2=1:1
• Insulation resistance: 100mΩ min at 500DC
• Temperature rise: 50°C max
• Replacement for: EE16,EE19,EE25,EF16,EF20,EF25,UU10.5, UU16,toroidal common mode inductors
• High current, small profile, high efficiency with High frequency skin effect of flat wire, unit current density can reach 1.5-2 times of round copper wire, and the volume will be 0.5-1.0 times smaller under the same condition
• Lower temperature coefficient, only around once layer winding, perfect efficiency of heat sink , the temperature raise is much lower than the toroidal inductor
• Interturn capacitance is smaller than toroidal core, high insulation strength and high reliability
• The closed magnetic core design
• Use the flat wire, improving the space factor
• Single phase winding, thereby dramatically reduce stray capacitance
• EMI suppression is excellent
• Fully automatic winding, neat line arrangement, no overlapping, high production efficiency, low labor

APPLICATION:

• Personal Computer
• Switching power supply, Adapter and UPS
• Computer products
• DVD
• LED power supply
• LCD TV & Monitor Displays Power Boards
• Consumer Electric Products & Battery Charger, Printers

Notes: Customized is available
