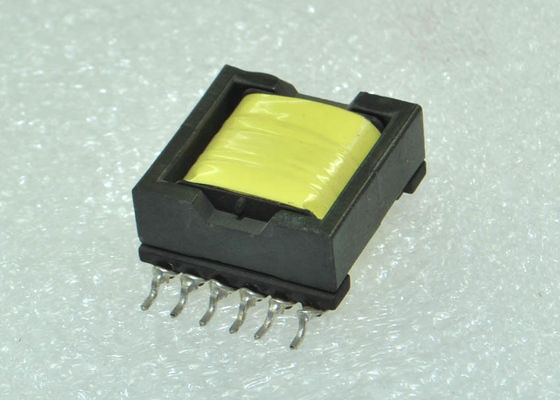

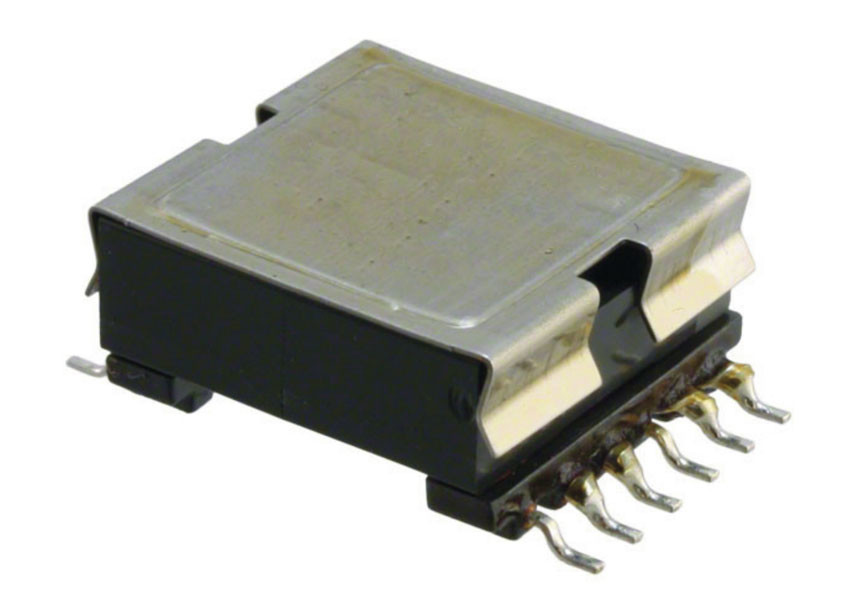

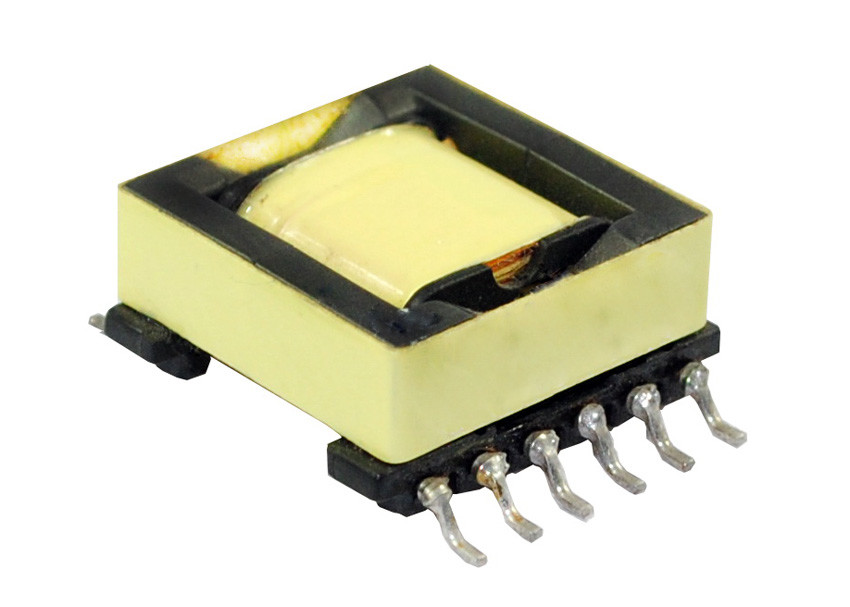

EFD Core High Frequency Power Transformer High Temperature Resistance

EFD Core High Frequency Power Transformer High Temperature Resistance
EFD Core High Frequency Power Transformer High Temperature Resistance EFD Core High Frequency Power Transformer High Temperature Resistance EFD Core High Frequency Power Transformer High Temperature Resistance

Large Image :  EFD Core High Frequency Power Transformer High Temperature Resistance Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Certification: ISO9001 Model Number: EFD12/EFD15/EFD20/EFD25/EFD30 Etc.
Usage: High Frequency Product Name: EFD Ferrite Core High Frequency Transformer
Coil Number: Auto Transformer Phase: Single
High Light:

high frequency isolation transformer

,

high frequency power transformer

EFD Core,SPT Series SMD Low profile switching transformer,high frequency power transformer



Features:

  • ISO 9001:2008
  • 3-5pcs free samples
  • Short lead time
  • 100% test before shipping
  • International standard specification
  • Professional packing
  • Conforms to CE, RoHS, FCC
  • OEM/ODM orders are welcome

EFD Core High Frequency Power Transformer High Temperature Resistance 0

Notes:

  • Inductance measure at Pin 1-2,100KHz 0.1VRms.
  • DCR measure at individual winding
  • Leakage measure at pin 1-12 with all other windings shorted
  • Insulation Resistance: 500 VDC,1KM Ohm min.
  • Soldering temperature:260℃ for 4±1 seconds
  • Operating temperature:0℃ to 70℃
  • Storage Temperature:-25℃ to 85℃
  • Different package available per special request





Applications:

  • SMPS: Half Bridge and Full Bridge structure,can fine-tune the inductance, etc., are widely used in fax Machines, PBX.
  • High-temperature resistantHigh frequency transformer -Suitable for AC/DC inverter or DC/AC converter. Customized designs are welcome.
  • Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm
  • Switching power supplies, chargers, alarm system, TV/CRT monitor displays, UPS, VCD/DVD players, audio/visual equipment, OA machines and inverter Typical products .
  • Used in high-density installation with good shielding quality also used in wave carrier filter, power transformer and Aux-power transformer



ABOUT US:

Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.

EFD Core High Frequency Power Transformer High Temperature Resistance 1
