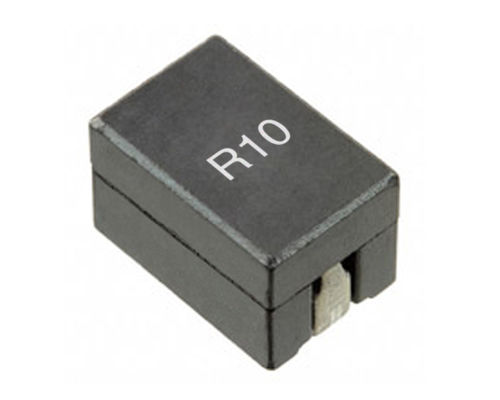

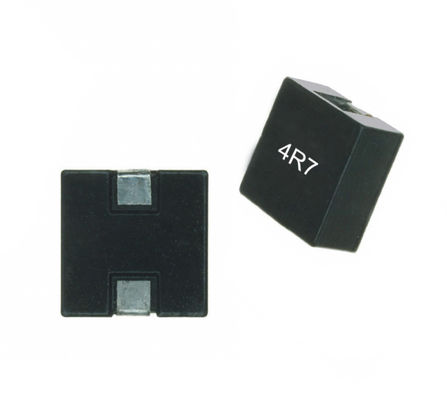

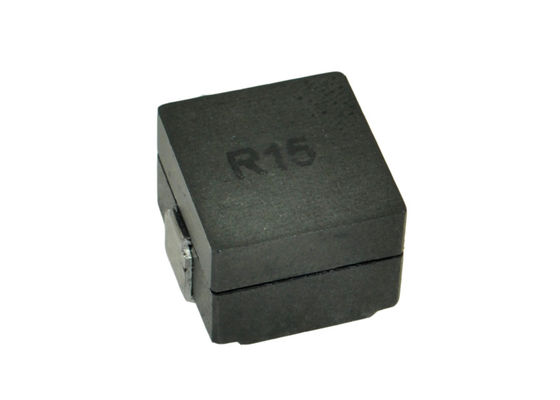

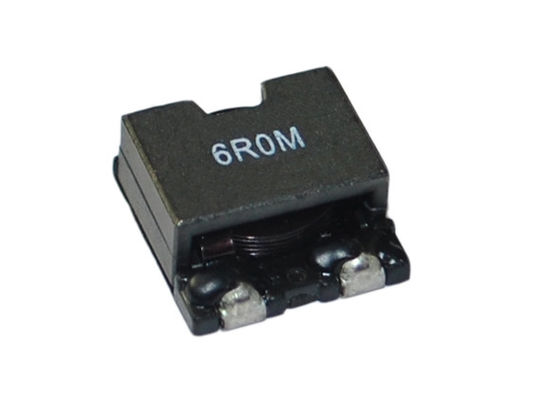

10 * 10mm Pad Size High Current Power Inductors 1uH - 10uH Inductance Range

10 * 10mm Pad Size High Current Power Inductors 1uH - 10uH Inductance Range
10 * 10mm Pad Size High Current Power Inductors 1uH - 10uH Inductance Range 10 * 10mm Pad Size High Current Power Inductors 1uH - 10uH Inductance Range 10 * 10mm Pad Size High Current Power Inductors 1uH - 10uH Inductance Range 10 * 10mm Pad Size High Current Power Inductors 1uH - 10uH Inductance Range

Large Image :  10 * 10mm Pad Size High Current Power Inductors 1uH - 10uH Inductance Range Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LPM1006
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Current Range: 10A To 25A Inductance Range: 1uH To 10uH
Installation: SMT Pad Size: 10*10mm
Test Frequency: 10KHz / 0.1V@25℃ Operating Temperature: -40℃ To +125℃(ambient Plus Self-temperature Rise)
High Light:

high current inductors chokes

,

smd power choke

LPM1006 Series high current power inductors,SMD power inductors,Current range 10A-25A



FEATURES:

· Inductance range from 1uH to 10uH
· Current range from 10A to 25A

· Test Frequency : 10KHz / 0.1V@25℃
· Operating temperature: -40℃ to +125℃(ambient plus self-temperature rise)
· Storage temperature: -40℃ to +125℃

· High current carrying capacity
· Low core loss

· Ferrite core material





APPLCATIONS:

· Portable electronics
· Servers and workstations
· Data networking and storage systems
· Notebook and desktop computers
· Graphics cards and battery power systems
· Multi-phase regulators
· Voltage regulator module(VRM)



Note: Product specifications can be customized.
