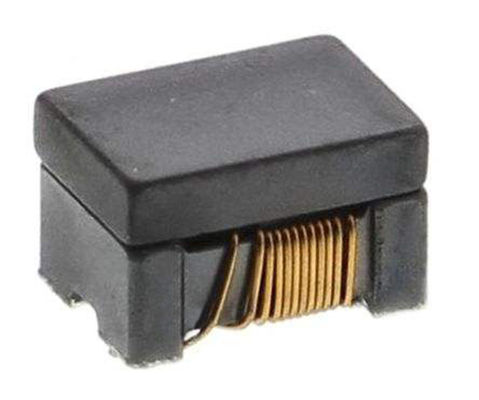

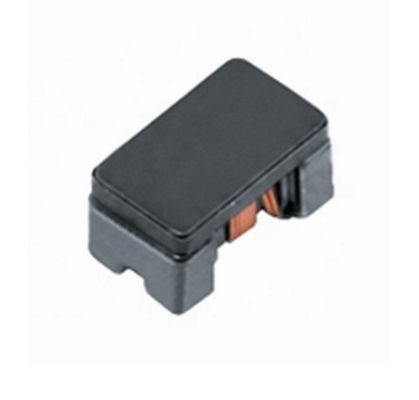

Surface Mount Wound Common Mode Choke SMD Common Mode Coil 0.2 - 0.4A Current

Surface Mount Wound Common Mode Choke SMD Common Mode Coil 0.2 - 0.4A Current
Surface Mount Wound Common Mode Choke SMD Common Mode Coil 0.2 - 0.4A Current Surface Mount Wound Common Mode Choke SMD Common Mode Coil 0.2 - 0.4A Current

Large Image :  Surface Mount Wound Common Mode Choke SMD Common Mode Coil 0.2 - 0.4A Current Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SF0805
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Impedance: 47Ω To 1540Ω Test Frequency: 100MHz
Current: 0.2 To 0.4A Turns Ratio: 1:1
Core: Ferrite Core Operating Temperature: -40ºC To +125ºC
High Light:

common mode toroidal chokes

,

common mode power line choke

Surface mount wound common mode chokes,SMD common mode coil,Low profile and low cost



TECHNICAL INFORMATION:

  1. Inductance Testing: 1KHz 1V HP4284A
  2. Z test with HP4191A or HP4395A
  3. RDC:QuadTech 1880 Milliohmmeter
  4. Operating temperature: -40℃ to +105℃
  5. Storage Temperature: -40℃℃ to +105℃℃
  6. Resistance to soldering heat:260℃ for 10 seconds
  7. Marking: Part number and date code


COMMON APPLICATIONS:

  1. DC/DCAC/DC convertor
  2. Communication System
  3. Automotive Systems
  4. Liquid Crystal Televisions
  5. Hard Disk Drives
  6. Network Systems
  7. Computer Peripheral Equipment



Surface Mount Wound Common Mode Choke SMD Common Mode Coil 0.2 - 0.4A Current 0Surface Mount Wound Common Mode Choke SMD Common Mode Coil 0.2 - 0.4A Current 1





FEATURES:

  1. Ferrite Core bobbin construction
  2. High frequency and Large current
  3. Excellent Mechanical Strength
  4. Excellent Solderability
  5. Excellent Frequency performance
  6. Low Profile and Low cost



Notes: Customized is available
