1KHz Frequency Toroidal Choke Coil Low Resistance 18 - 50mm Outer Diameter

Certification
Good quality Current Sense Transformer for sales
Good quality Current Sense Transformer for sales
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

I'm Online Chat Now

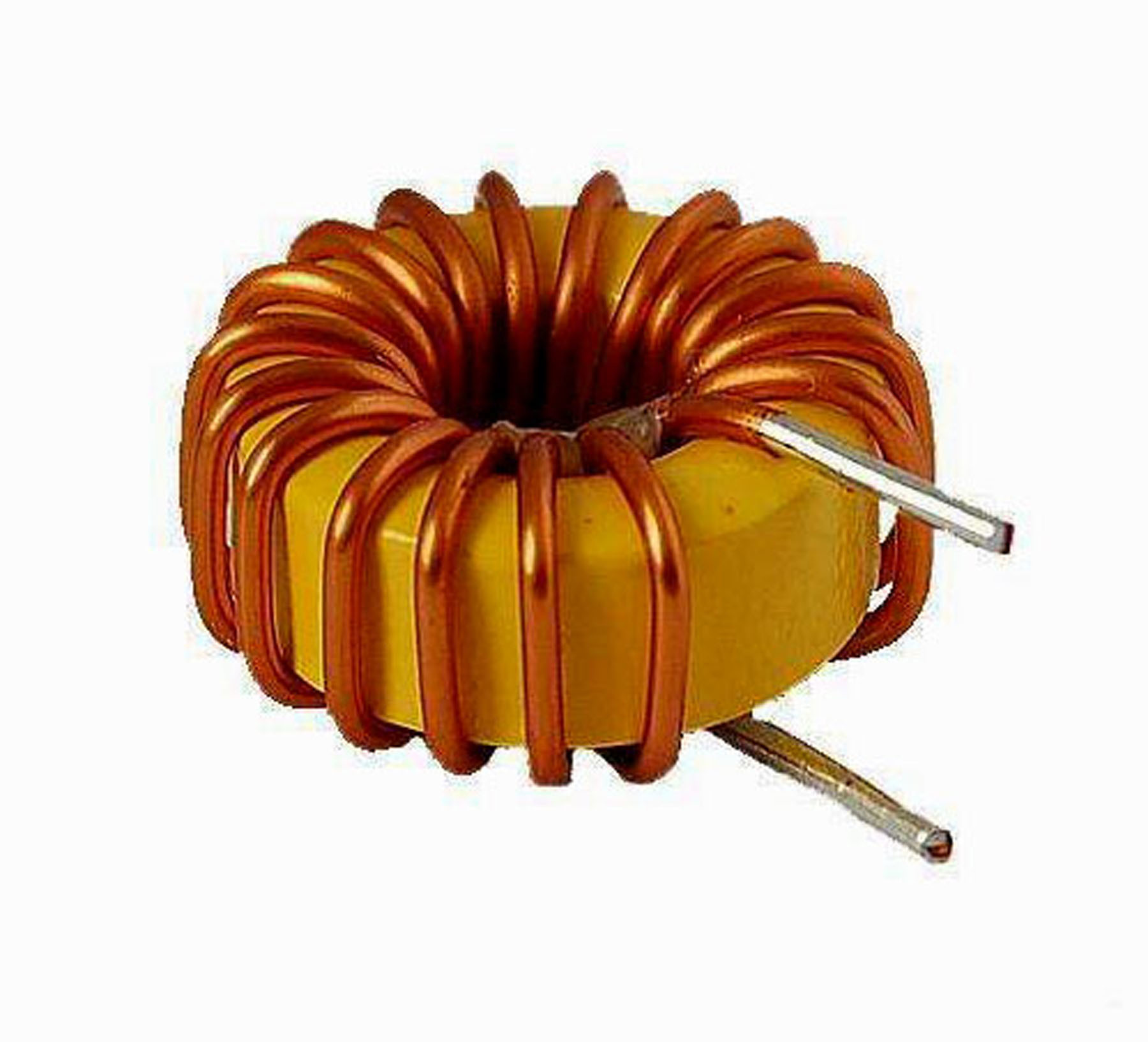

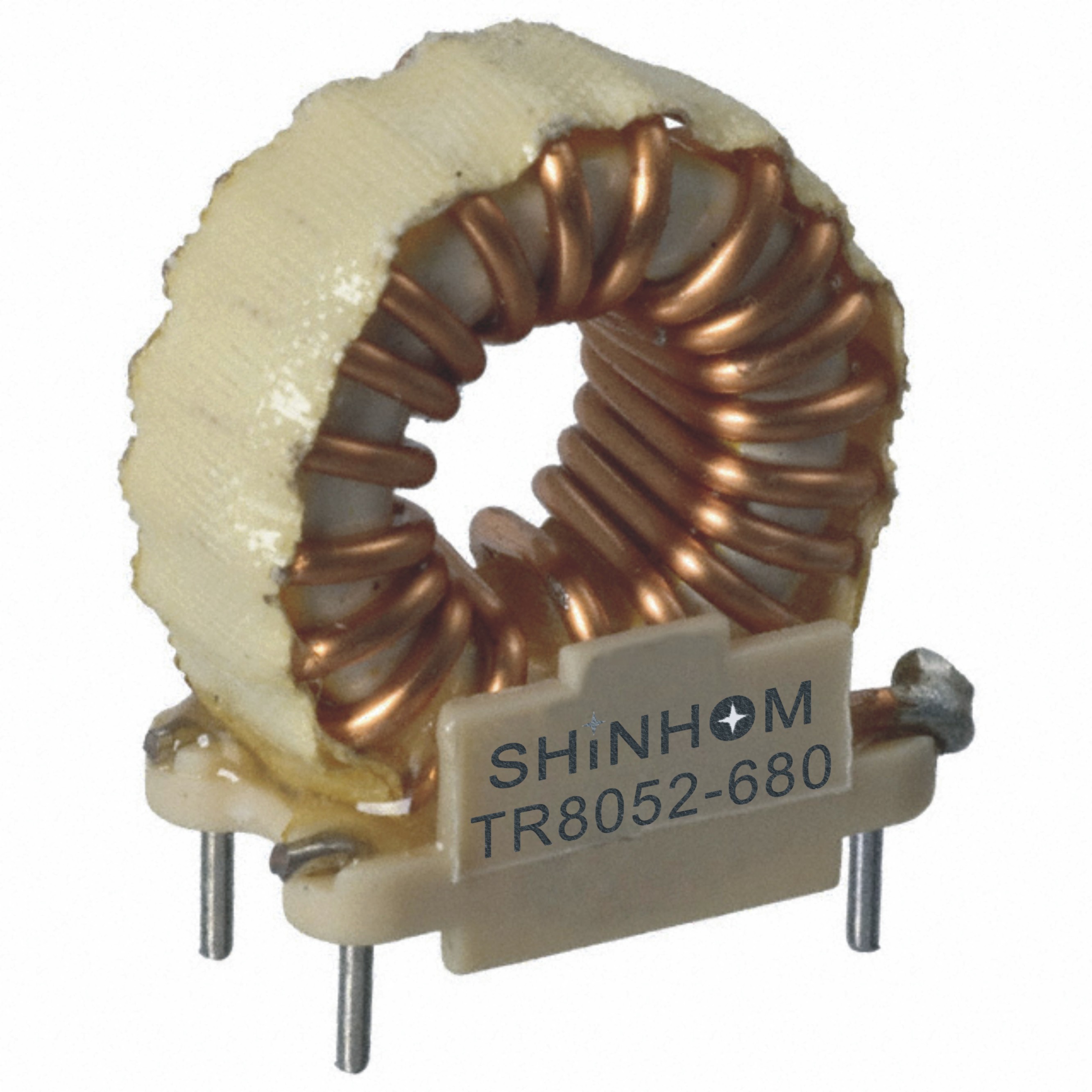

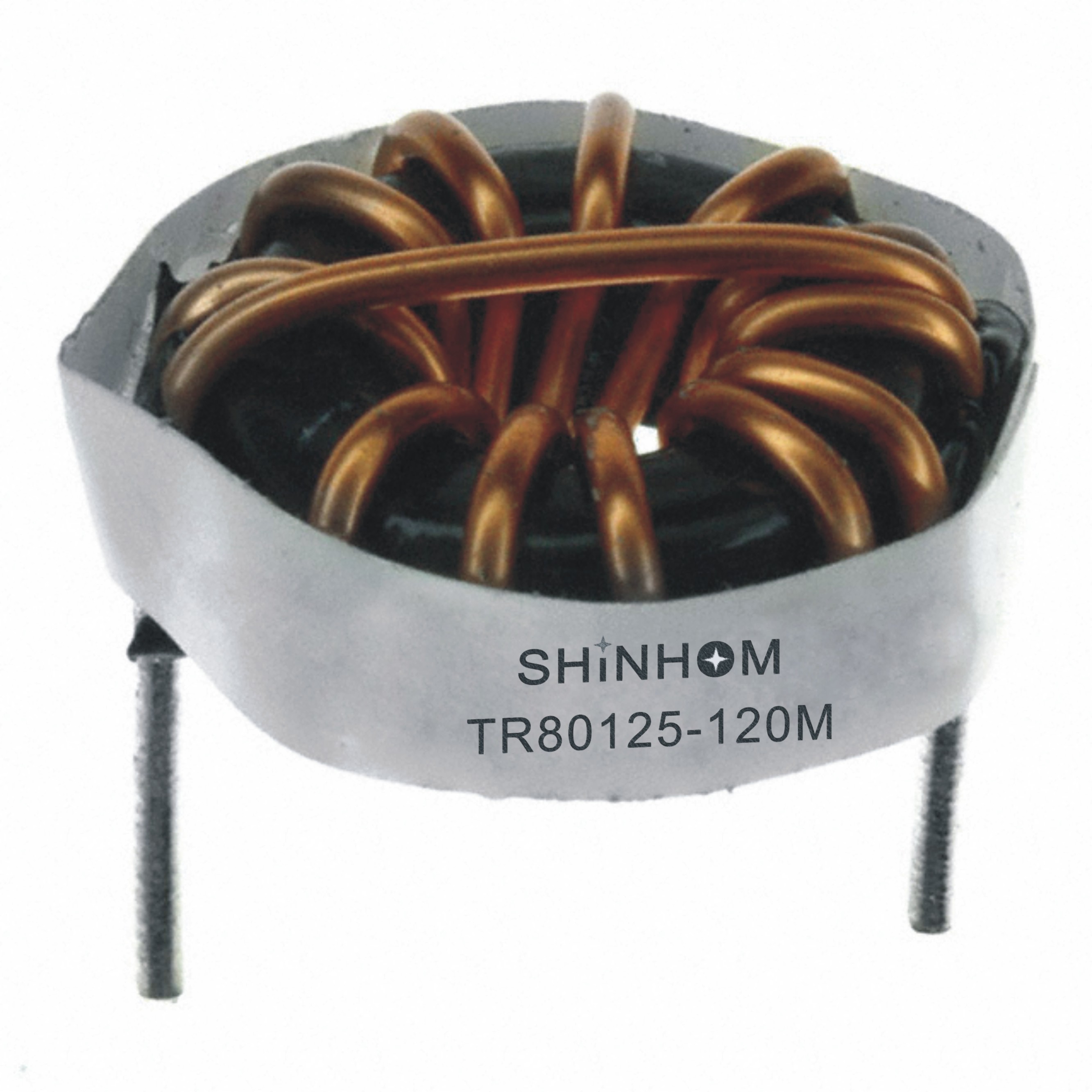

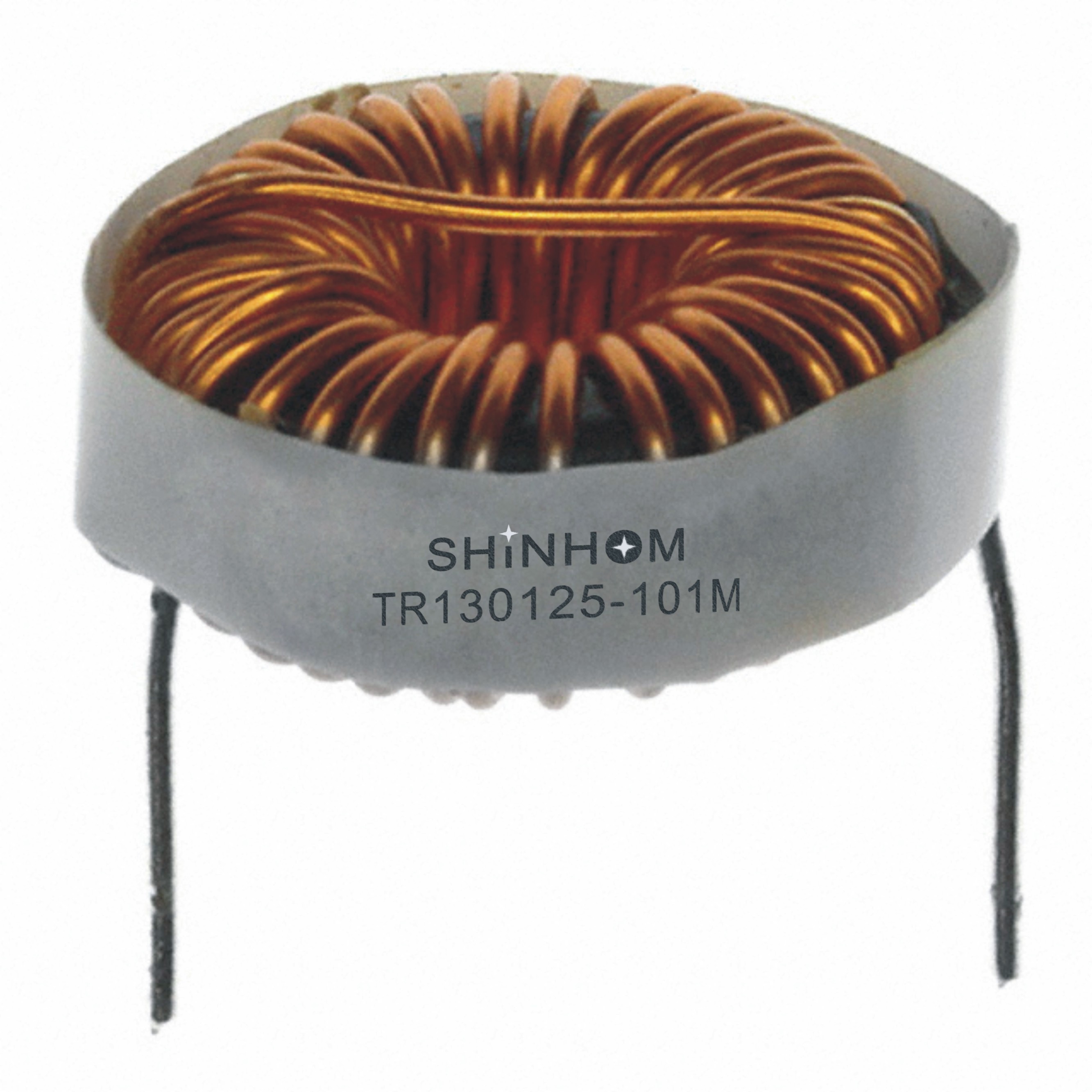

1KHz Frequency Toroidal Choke Coil Low Resistance 18 - 50mm Outer Diameter

China 1KHz Frequency Toroidal Choke Coil Low Resistance 18 - 50mm Outer Diameter supplier
1KHz Frequency Toroidal Choke Coil Low Resistance 18 - 50mm Outer Diameter supplier 1KHz Frequency Toroidal Choke Coil Low Resistance 18 - 50mm Outer Diameter supplier 1KHz Frequency Toroidal Choke Coil Low Resistance 18 - 50mm Outer Diameter supplier 1KHz Frequency Toroidal Choke Coil Low Resistance 18 - 50mm Outer Diameter supplier

Large Image :  1KHz Frequency Toroidal Choke Coil Low Resistance 18 - 50mm Outer Diameter

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TR Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Core: Iron Or Ferrite Test Frequency: 1KHz
Inductance: 4.7uH To 20mH Rated Current: 0.2 To 30A
Outer Diameter: 18 - 50mm Inductor Value: Fixed Inductor



TR Series High Frequency Choke coils, Toroidal Choke Coil Low Resistance,Dip pin power inductor



Specifications:

  • Rated voltage: AC/DC 250V
  • Withstand voltage level: AC 2KV, 1 minute
  • Insulation resistance: DC 500V, 100ohm, min
  • Insulation level: B (130℃)
  • Operating temperature range: -25℃ - 85℃
  • Minimum inductance range: 4.7uH-20mH 1kHz
  • Rated current range: 0.2-30A



Features:

  • High frequency and low loss
  • Toroidal inductor
  • For excellent EMI suppressor
  • Small profile
  • Large current
  • Low resistance
  • MPP, hi-flux, sendust/RF carbonyl, and iron power core
  • SMT and low profile available
  • RoHS compatible (Pb free) versions available
  • Good frequency characteristic



Application:

  • Widely applied in various switching power suppliers and high frequency electronic equipment
  • Power line filtering, EMI/RFI for switch mode power supplies



Product Description:

Toroid core datas
