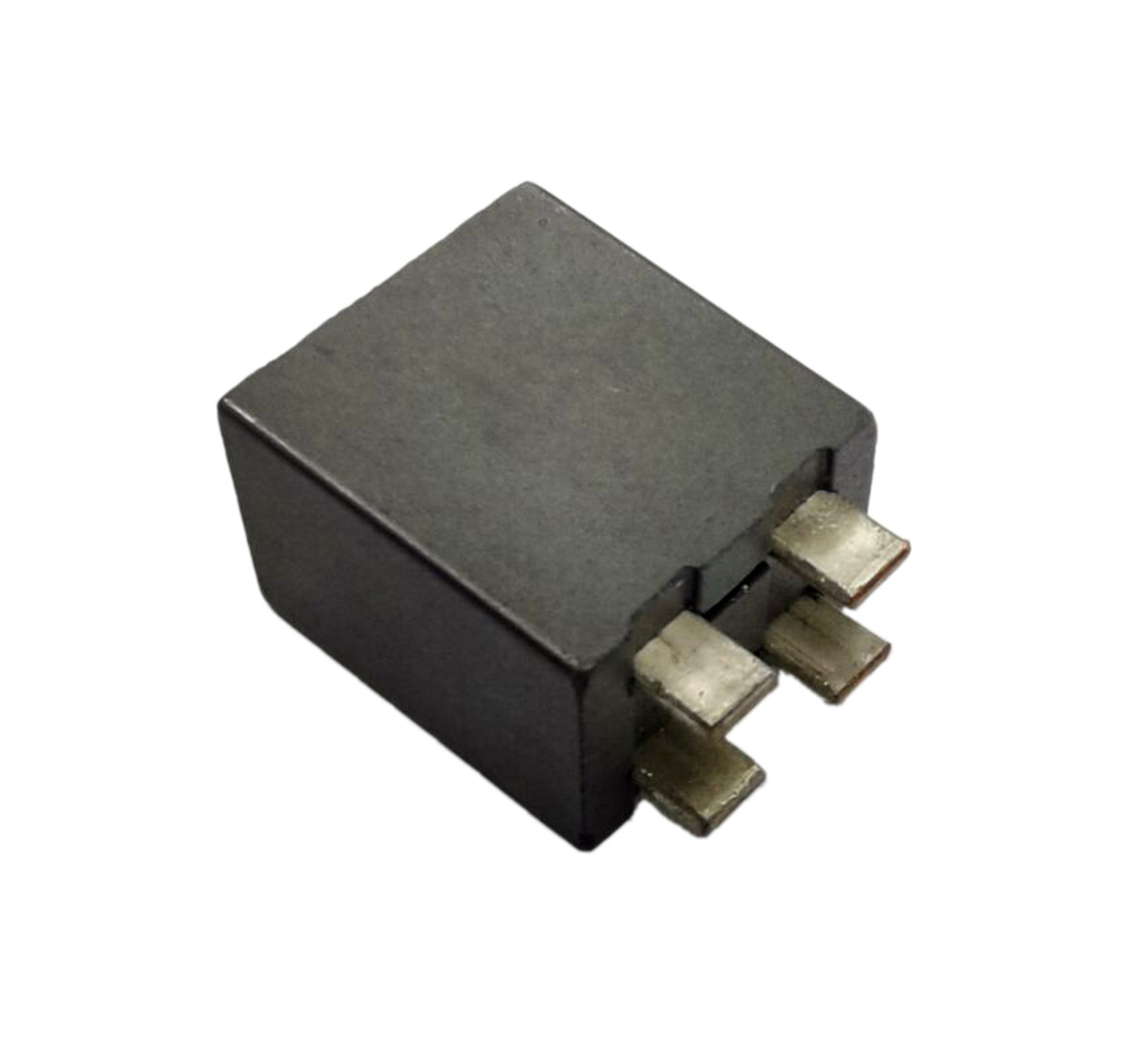

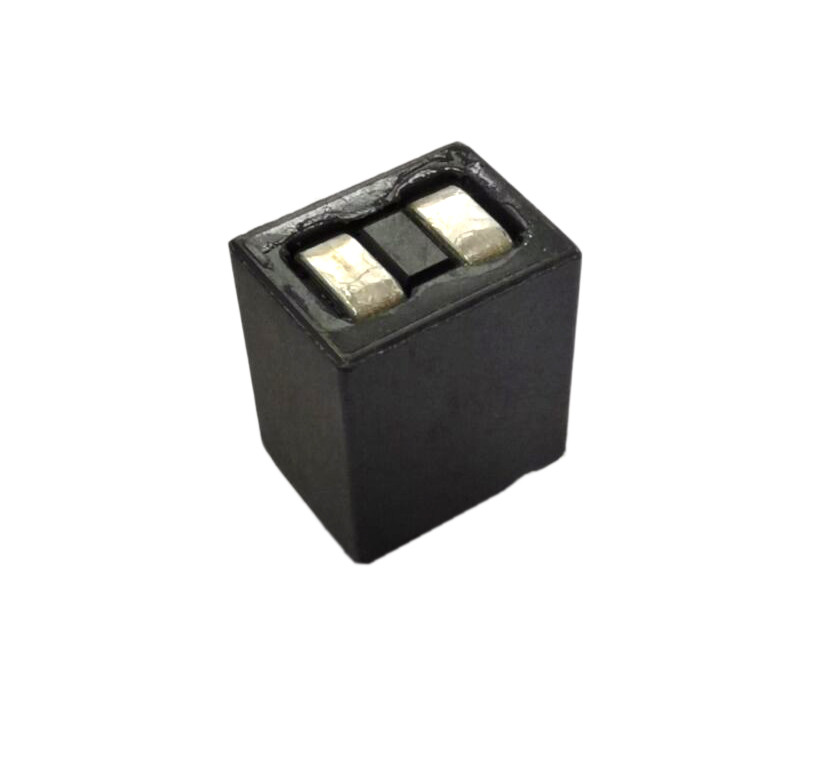

Through Hole Axial EMI Suppression Beads High Current 0.3mΩ Resistance

Through Hole Axial EMI Suppression Beads High Current 0.3mΩ Resistance
Through Hole Axial EMI Suppression Beads High Current 0.3mΩ Resistance Through Hole Axial EMI Suppression Beads High Current 0.3mΩ Resistance

Large Image :  Through Hole Axial EMI Suppression Beads High Current 0.3mΩ Resistance Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: FMB141015
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Size: 13.7*10.4*15.2mm Impedance@100MHz: 120Ω Min
Resistance: 0.3mΩ Rated Current: 75A
Operating Temperature: -25℃ To +85℃ Type: EMI Suppression Ferrite Bead
High Light:

emi suppression beads

,

emi filter bead

Ferrite Bead Inductors, Available in Various Types, for EMI Suppression



Electrical specification:

  • Impedance: 120Ω Min@100MHz
  • DCR: 0.3mΩ Max
  • Max. Current: 75.0A
  • Operating temperature: -25℃ to +85℃



Features:

Wire wound beads with high frequency and EMI suppression
Low DCR and high current
Through-hole axial ferrite beads for EMI suppression
Through-hole ferrite beads in regged construction
Through-hole ferrite beads catering for the measurement of FCC, VDE
Ferrite beads used in:

  • Noise filtering devices
  • Amplifiers
  • Switching regulations
  • Power supplies Triac control circuits
  • SCR control circuits Modems, PDP, LCD, TVs converters
  • Mobile radios, DC/DC converters
  • Cordless telephones and car radios GPS devices
  • Wireless communication equipment
  • Networking system, xDSL filters





For More EMI Suppression Ferrite Core, Please Go To Our Website Or Contact Us.

Through Hole Axial EMI Suppression Beads High Current 0.3mΩ Resistance 0
