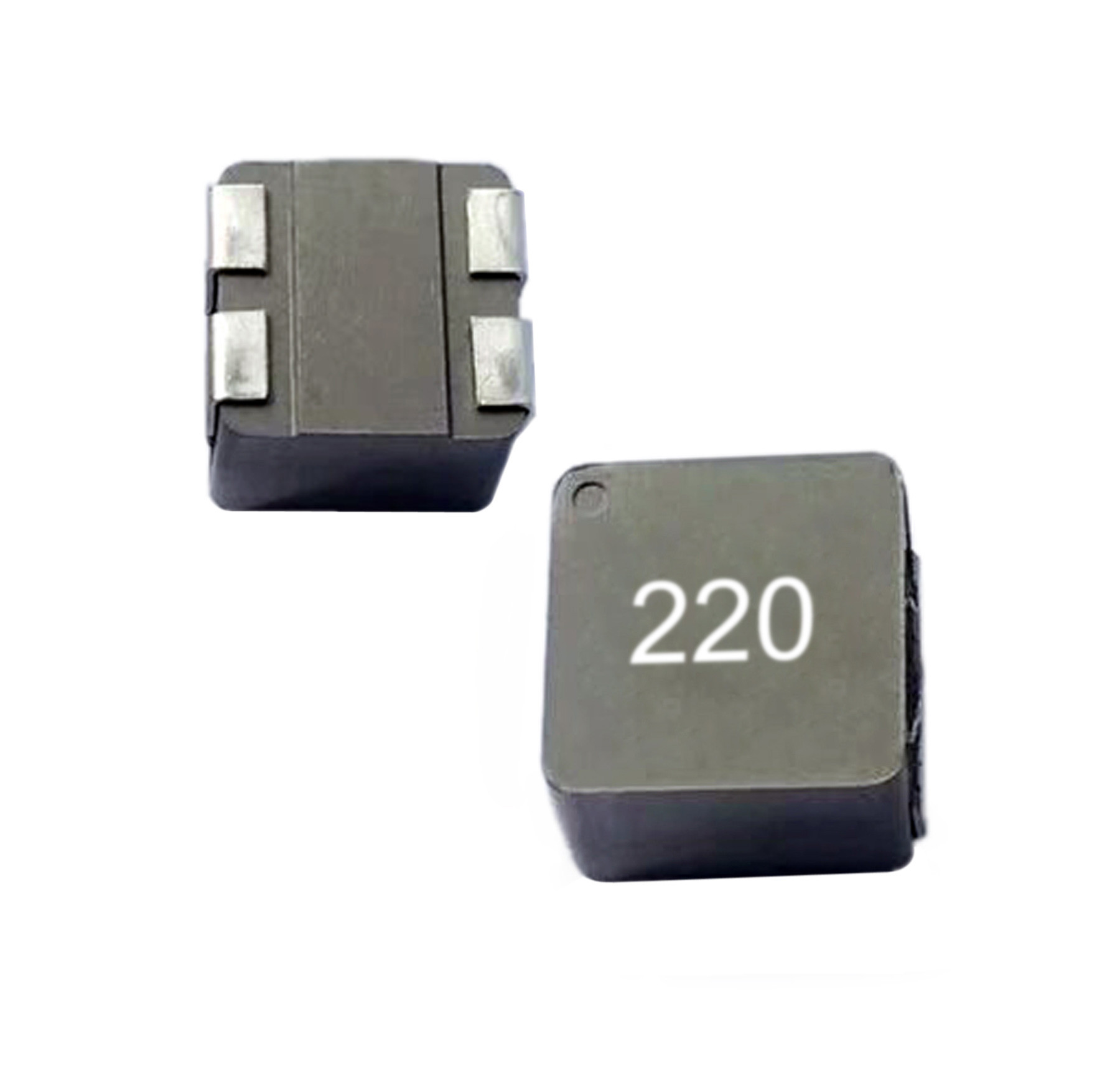

Smd Molded Common Mode Choke High Current Shielding Inductors LPM1008D

Name: Smd Molded Common Mode Choke High Current Shielding Inductors LPM1008D
Brand: Shinhom
SKU: LPM1008D
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (125 reviews)

Large Image : Smd Molded Common Mode Choke High Current Shielding Inductors LPM1008D Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	LPM1008D

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Working Frequency:	High Frequency	Inductance:	10uH~47uH
Turns Ratio:	1:1	Type:	SMD Common Mode Inductor
Specification:	RoHS/SGS/UL/ISO9001	Packaging Form:	Tape & Reel
High Light:	common mode toroidal chokes , common mode power line choke

SMD Molded common mode inductors,High current shielding inductors

ELECTRICAL SPECIFICATION:

Turns ratio: 1:1
L: 10uH~47uH@100KHz,1V
DCR: 37mΩ~130mΩ
Current: 10.6A Max

FEATURES:

Lowest height in this package footprint.
Shielded construction.
Lowest DCR/uH, in this package size.
Handles high transient current spikes without saturation.
Ultra low buzz noise, due to composite construction.

TECHNICAL INFORMATION:

Test Frequency : 100KHz / 1Vdc@25℃.
Heat Rated Current (Irms) will cause the coil temperature rise approximately,△T=40℃ without core loss.
Saturation Current (Isat) will cause L0 to drop approximately 30%
The part temperature (ambient + temp rise) should not exceed 155℃ under worst case operating conditions. Circuit design, component, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.
Operating Temperature & Storage Temperature: -55℃ - +155℃.
