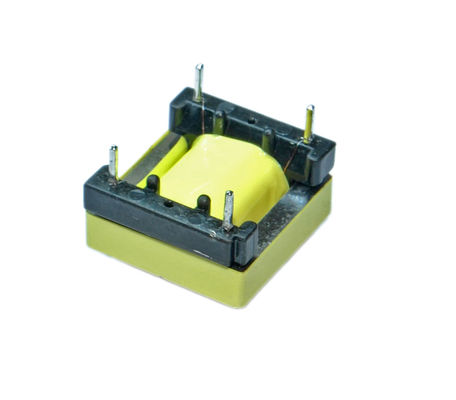

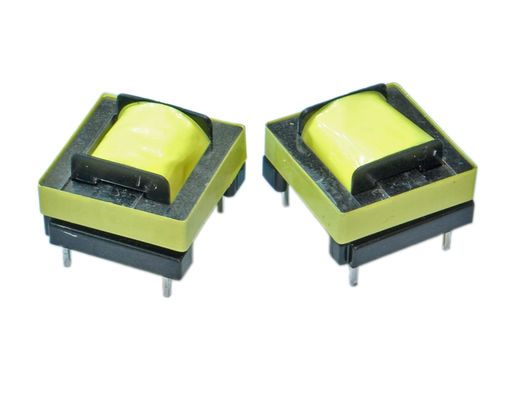

Isolating 100Hz PCB EI16 Core Audio Frequency Transformer

I'm Online Chat Now
Certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

Isolating 100Hz PCB EI16 Core Audio Frequency Transformer

Isolating 100Hz PCB EI16 Core Audio Frequency Transformer
Isolating 100Hz PCB EI16 Core Audio Frequency Transformer Isolating 100Hz PCB EI16 Core Audio Frequency Transformer Isolating 100Hz PCB EI16 Core Audio Frequency Transformer

Large Image :  Isolating 100Hz PCB EI16 Core Audio Frequency Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AT16
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Core Material: Silicon Steel Sheet Type: Audio Frequency Transformer
Operating Temperature: 0℃ To +70℃ Turns Ratio: 1 : 1
Shape Of Core: EI16 Application: Audio Coupling / Isolating
High Light:

EI16 Core Audio Frequency Transformer

,

100Hz PCB Audio Frequency Transformer

,

Telephony Audio Frequency Transformer

Audio Frequency Transformers,PCB Audio Frequency Transformer , Miniature Audio Output Transformer



FEATURES:

  1. Turns ratio: 1:1
  2. Insertion loss: 2.8dB Max@1KHz
  3. Return loss: 20dB Min@200-3500Hz, Reference 600Ω with 301Ω load
  4. Frequency response(100Hz-5000Hz): 0.2dB Max Relative to 1KHz
  5. Total harmonic distortion: -75dB Max@-3dB,150Hz,-90dB Max@0dB,600Hz,-86dB Max@0dB,300Hz
  6. Longitudinal balance: 60dB Min@300Hz-3500Hz
  7. DCR(1-3): 165Ω±15%
  8. DCR(6-4): 170Ω±15%
  9. Hi-Pot: 1000Vrms Pri to Sec
  10. Ambient temperature: -40℃ to +100℃
  11. Operating temperature: -0℃ to +70℃



COMMON APPLICATIONS:

  1. Telephony
  2. Audio coupling / isolating
  3. Alarm system
