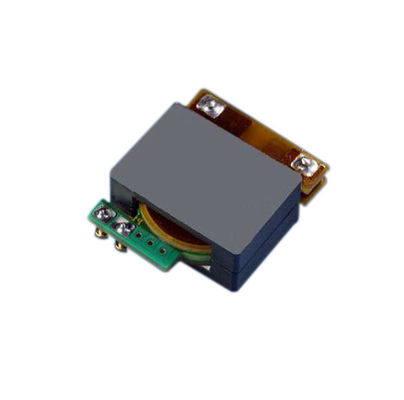

Single Phase 1500Vdc 250W PCB Planar Transformer EE Type

Single Phase 1500Vdc 250W PCB Planar Transformer EE Type
Single Phase 1500Vdc 250W PCB Planar Transformer EE Type Single Phase 1500Vdc 250W PCB Planar Transformer EE Type

Large Image :  Single Phase 1500Vdc 250W PCB Planar Transformer EE Type Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TER25
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Name: Switch Mode Power Transformer Power: 250W
Type: EE Type, ER Type, EI Type, PQ Type Thickness: 10.0mm
Operation Temperature: -40℃ To +125℃ Isolation: 1500Vdc
High Light:

PCB Planar Transformer

,

250W Planar Transformer

,

1500Vdc Planar Transformer

250W PCB Planar Transformer , Single Phase High Frequency Planar Transformer





FEATURES:

  • PCB planar transformer
  • Planar switching power transformer
  • Power Rating Up to 250 Watts
  • High Isolation (operational) 1500 Vdc
  • Operating Temperature -40℃ to +125℃
  • Cost effective and competitive prices.
  • High Creepage and Clearance distances between primary and
  • Applicable to all SMPS topologies.
  • High performance DC/DC converters.
  • High efficiencies up to over 98 percent, high power density of 400 watts per cubic inch DC/DC converters.
  • For forward, full-bridge, half-bridge and push-pull DC/DC converters.
  • Telecommunications, industrial control systems,
  • Automotive and heavy equipment vehicle systems

Single Phase 1500Vdc 250W PCB Planar Transformer EE Type 0

Single Phase 1500Vdc 250W PCB Planar Transformer EE Type 1

Single Phase 1500Vdc 250W PCB Planar Transformer EE Type 2
