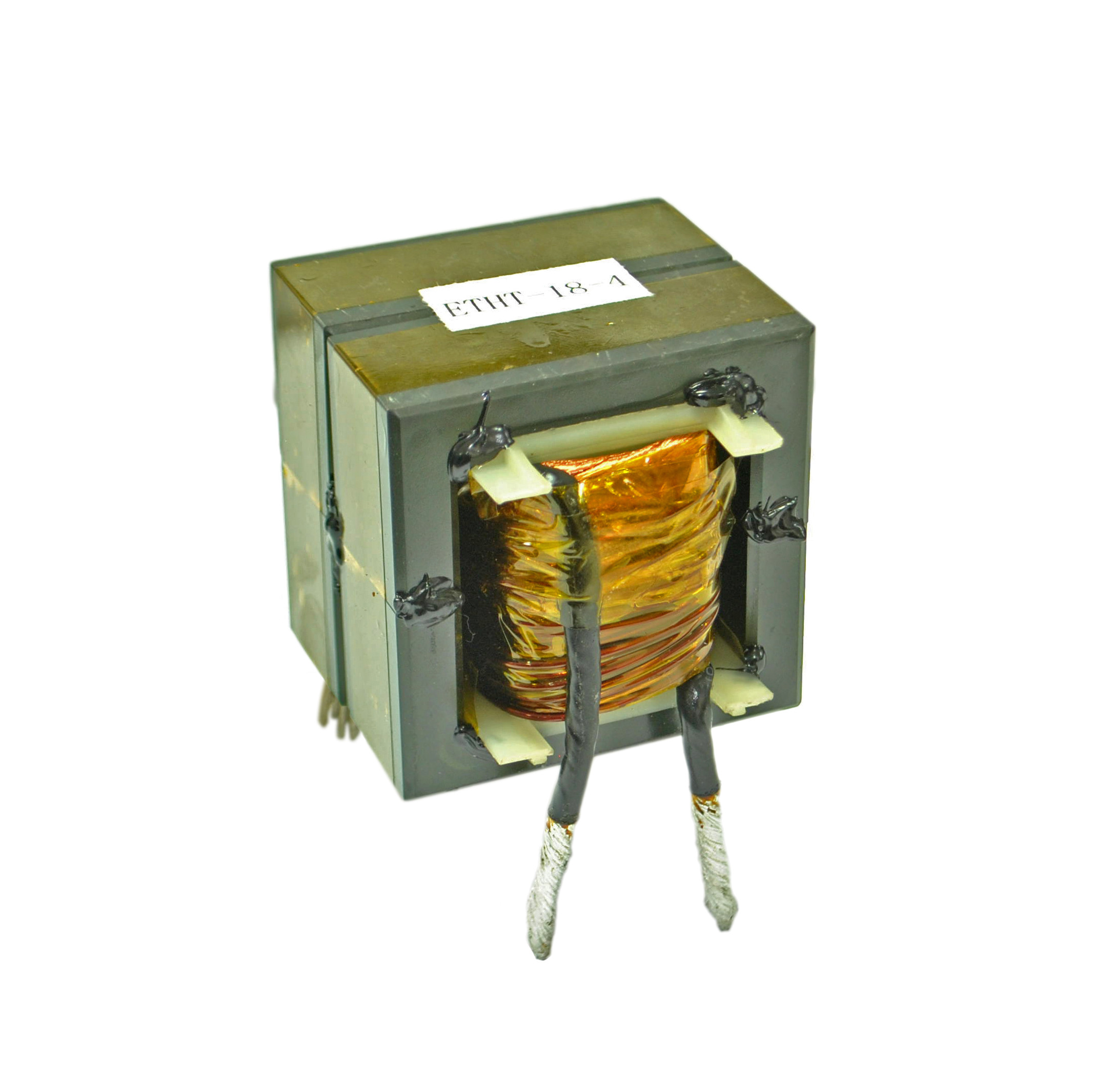

Reactor E65 Welding Machine Transformer Composite Core

E65/32/27 transformer , Composite core transformer , High frequency transformer , Reactor , Welding machine transformer

• Transformers for use in Welding machine
• Ferrite core meterial
• High power transformer

• Flammability: UL94V-0
• Insulation System: Class F 155℃.
• All listed parameters are to be within tolerance from -40℃ to +85℃ unless otherwise noted
• Storage Temperature Range: -55℃ to +125℃
• Electrical and mechanical specifications 100% tested
• RoHS Compliant Component

Electrical specification:

• L(1-2): 1.58mH+30%/-20% @10KHz,1V
• DCR(1-2): 6.6mΩ±15%
• DCR(3-4): 0.25mΩ±15%
• Hi-Pot: 2500Vac,2mA,10S Winding to Winding
• Hi-Pot: 1000Vac,1mA,10S Winding to Core
