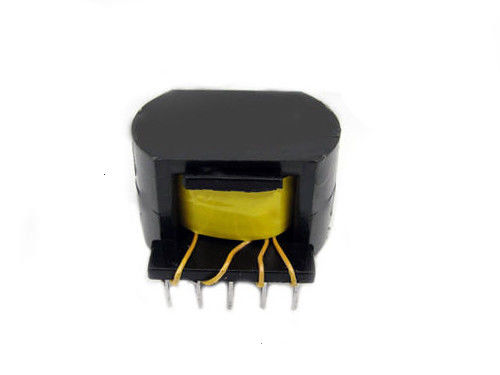

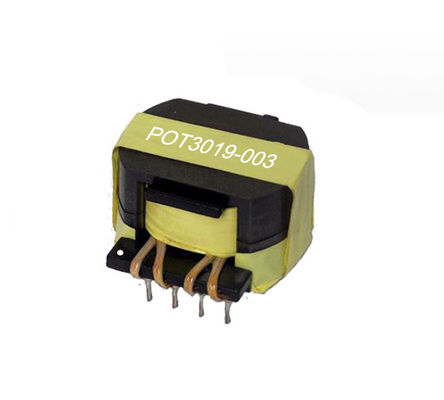

Mn Zn Pot Type SMPS HF High Frequency Transformer

Pot Type High-Quality High Frequency Power Transformers

Electrical parameters:

• Voltage ratio: 1: 18V
• Core shape: POT (PC40, PC44, PC95)
• Frequency characteristic: High frequency (100KHz)
• Output power: 10-80W
• Operating temperature: -40 ºC to +155 ºC
• Storage temperature: -25 ºC to + 85 ºC
• Storage humidity: 30 to 95%
• Complies with UL insulation system requirements: class F, class H

Product Features:

• Low loss and low temperature rise
• High efficiency and low leakage flux
• High overload capacity and low noise
• Simple structure, stable and reliable
• Accept customization

Applications:

• Widely used in audio series, low-voltage lighting systems, medical equipment, instruments, regulators, Induction Cooker, power adapter, and other home appliances.

Notes:

• Inductance measure at Pin 1-2,100KHz 0.1V
• DCR measure at individual winding
• Leakage measure at pin 1-12 with all other windings shorted
• Insulation Resistance: 500 VDC,1KM Ohm min.
• Soldering temperature:260℃ for 4±1 seconds
• Operating temperature:0℃ to 70℃
• Storage Temperature:-25℃ to 85℃
• Different package available per special request
