Toroidal Ferrite Coil SMD Common Mode Line Filter

I'm Online Chat Now
Certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

Toroidal Ferrite Coil SMD Common Mode Line Filter

Toroidal Ferrite Coil SMD Common Mode Line Filter

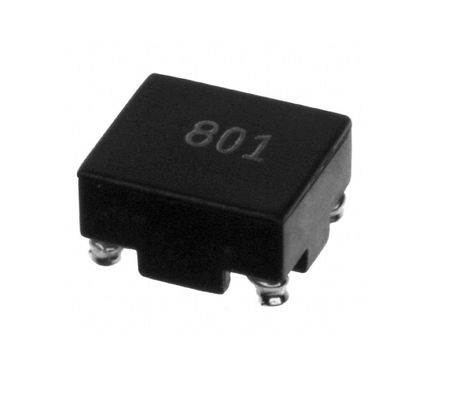

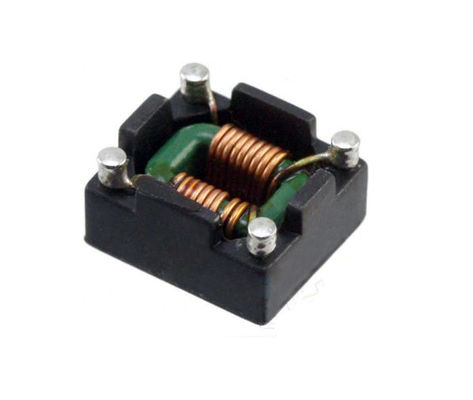

Toroidal Ferrite Coil SMD Common Mode Line Filter Toroidal Ferrite Coil SMD Common Mode Line Filter

Large Image :  Toroidal Ferrite Coil SMD Common Mode Line Filter Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: CM02
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Working Frequency: High Frequency Model: Toroidal
Structure Of Magnetizer: Ferrite Coil Name: Common Mode Filter
Application: Video Cameras , Communication System Core: Rectangular Type
High Light:

SMD Common Mode Line Filter

,

Ferrite Coil Common Mode Line Filter

,

Toroidal Common Mode Line Filter

Customize SMD Common Mode Line Filter , Common Mode Choke Coil





        Common - mode filters usually use ferrite cores.Low differential mode noise signals suppress the interference source and are difficult to deform in high speed signals.Good noise suppression strategy, high common mode noise suppression and low differential mode noise signal suppression

        Common - mode filters are relatively simple to design and include common - mode capacitors, unbalanced transformers or common - mode inductors.The common-mode capacitor bypasses the common-mode current of the two input lines to the ground. The common-mode inductor presents an equilibrium impedance, that is, the impedance in the power line is equal to that in the ground wire. This impedance presents an impedance characteristic to common-mode noise.



TECHNICAL INFORMATION

  • Inductance Testing: 1KHz 1V HP4284A
  •  Z test with HP4191A or HP4395A
  • RDC:QuadTech 1880 Milliohmmeter
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃℃ to +105℃℃
  • Resistance to soldering heat:260℃ for 10 seconds
  • Marking: Part number and date code



Features:

  • Ferrite Core bobbin construction
  • High frequency and Large current
  • Excellent Mechanical Strength
  • Excellent Solderability
  • Excellent Frequency performance
  • Low Profile and Low cost



Application:

  • Video Cameras
  • Communication System
  • Automotive Systems
  • Liquid Crystal Televisions
  • Hard Disk Drives
  • Network Systems
  • Computer Peripheral Equipment
  • Note: Product specifications can be customized.



Toroidal Ferrite Coil SMD Common Mode Line Filter 0

Contact Details
Shaanxi Shinhom Enterprise Co.,Ltd

Contact Person: admin

Tel: +8618991816309

Send your inquiry directly to us
