Radio Communication SMD Audio Frequency Transformer 20kHz

I'm Online Chat Now
Certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

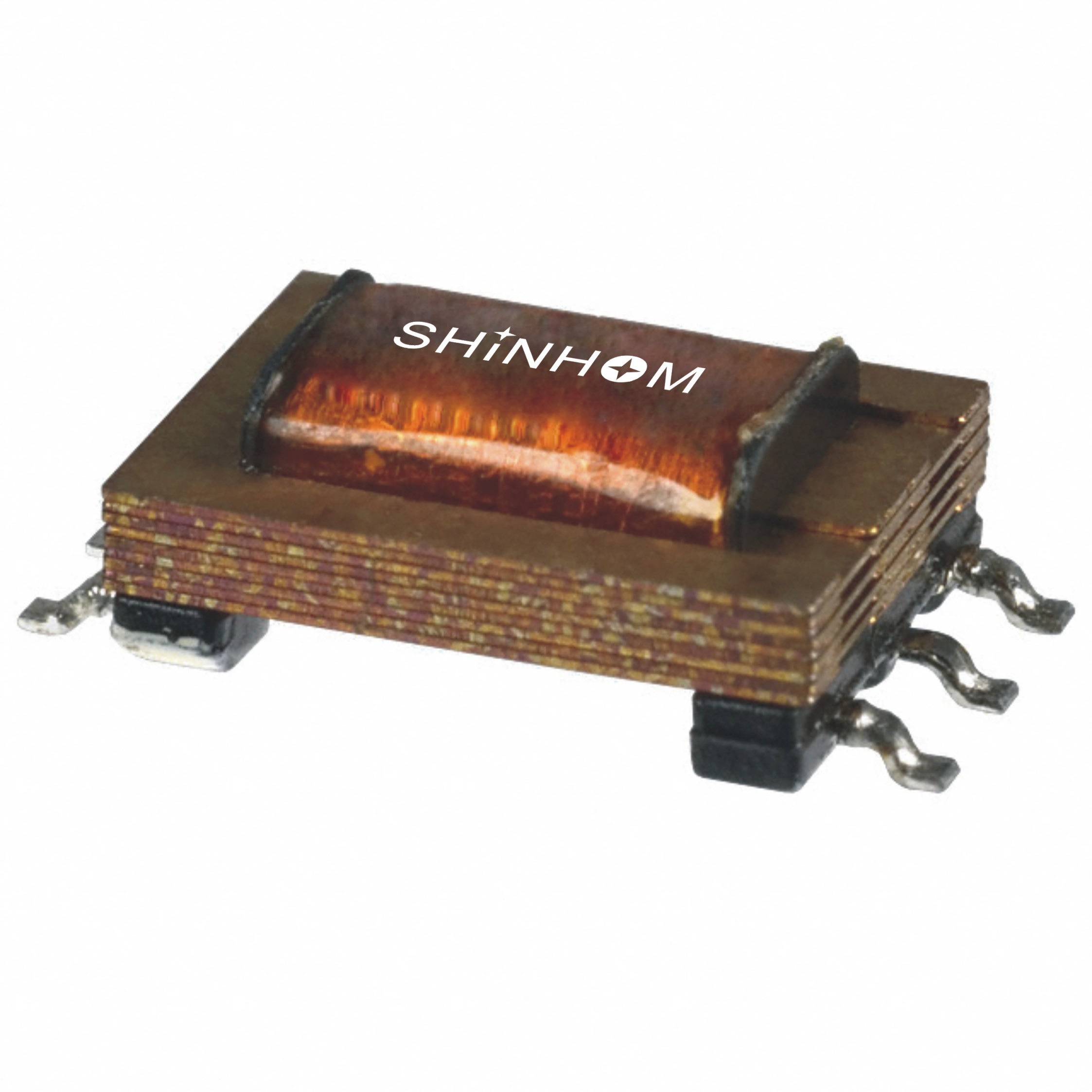

Radio Communication SMD Audio Frequency Transformer 20kHz

Radio Communication SMD Audio Frequency Transformer 20kHz
Radio Communication SMD Audio Frequency Transformer 20kHz

Large Image :  Radio Communication SMD Audio Frequency Transformer 20kHz Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AT
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Product Name: Audio Transformer Coil Structure: Toroidal,plane,square
Core Material: Silicon Steel Sheet Impedance Ratio: 600Ω:600Ω
Storage Temperature: -25℃to+85℃ Operating Temperature: -25℃to+125℃
High Light:

SMD Audio Frequency Transformer

,

Toroidal Audio Frequency Transformer

,

20kHz Audio Frequency Transformer

SMD Audio Transformers With 20Hz To 20kHz Frequency And Maximum Response Of 0.25dB



FEATURES:

      In radio communication, radio and television, automatic control as voltage amplifier, power output circuit components.The frequency response of the audio transformer is uniform in the working frequency band, and its iron core is stacked with high magnetic conductivity materials. The primary and secondary windings are tightly coupled, so that the magnetic flux through the primary winding is almost all in chain with the secondary winding, and the coupling coefficient is close to 1.The lowest frequency of the passband is determined by the original winding inductance and the highest frequency is determined by the transformer leakage inductance.To ensure that the transformer has enough passband, the primary winding inductance should be large, the leakage inductance should be small.The hysteresis loss and magnetic circuit saturation of the core will cause the signal distortion.The influence of hysteresis loss can be reduced by properly configuring the load and increasing the load current.Increasing the core section and leaving an air gap can make the magnetic circuit not saturated, thus reducing the distortion of the signal.



Application:

       Output transformer: used in audio equipment and playback equipment, the role of impedance conversion in the circuit.

Input transformer: the main role is in the input of sound signal occurs, in the circuit plays the role of impedance conversion.

Interstage transformers: Common interstage transformers are used to harmonize the various working units in the amplifier.

Interwire transformers: Interwire transformers are commonly used in wired broadcasting equipment.Because there are many high-power amplifiers on the wired broadcast unit, and the line is long, the transmission of audio over a long distance will make audio distortion
