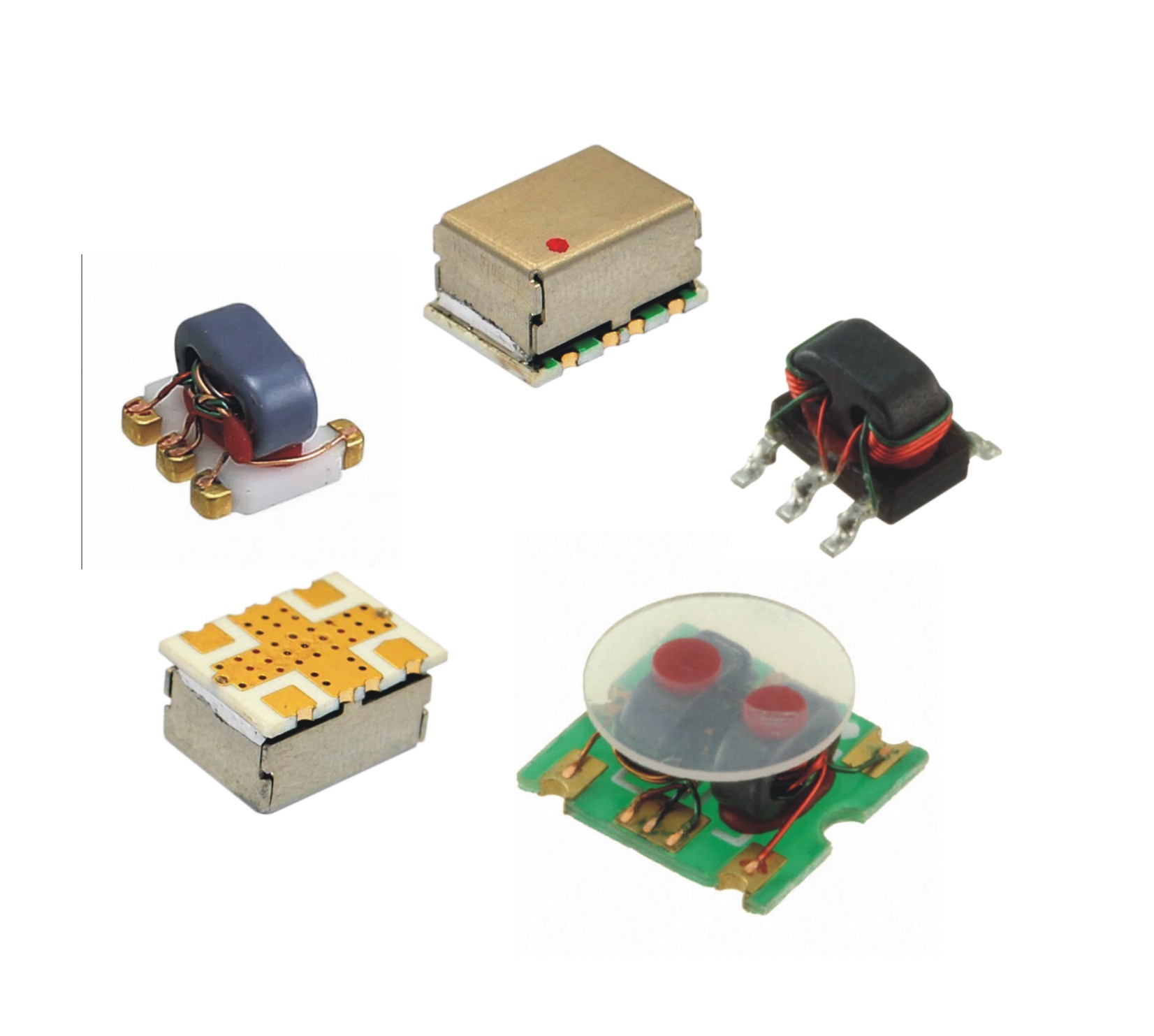

Auto Surface Mount RF Transformer SMD Balun Transformer

Name: Auto Surface Mount RF Transformer SMD Balun Transformer
Brand: Shinhom
SKU: RF3S-2575
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (143 reviews)

Large Image : Auto Surface Mount RF Transformer SMD Balun Transformer Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	RF3S-2575

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Frequency:	4.5-3000MHz	Characteristic Impedance:	75Ω
Operating Temperature:	-40℃ To 85℃	Storage Temperature:	-55℃ To 100℃
Impedance Ratio:	1:1 , 1:2 , 1:4	Structure Of Magnetizer:	Ferrite Core
High Light:	Auto Surface Mount RF Transformer , SMD Balun Transformer , 3000MHz RF Transformer

Auto transformer,RF Balun transformer,SMD customized Balun transformer,75 Ohm,4.5MHz - 3000MHz

To support an even wider range of applications, Mini-Circuits tiny surface-mount transformers and baluns now cover frequencies from 4.5 to 3000MHz. Our latest designs achieve consistent perfomance across very wide frequency bands, and our baluns have demonstrated great utility for use with chipsets.

Custom-made balun cand couplers
Pair wire coil for high stability
Surface mounting
Low profile
Directional couplers / Bi-Directional couplers
RF balun transformers used in: double balanced mixer, couplers, broad-band match impedance transformers

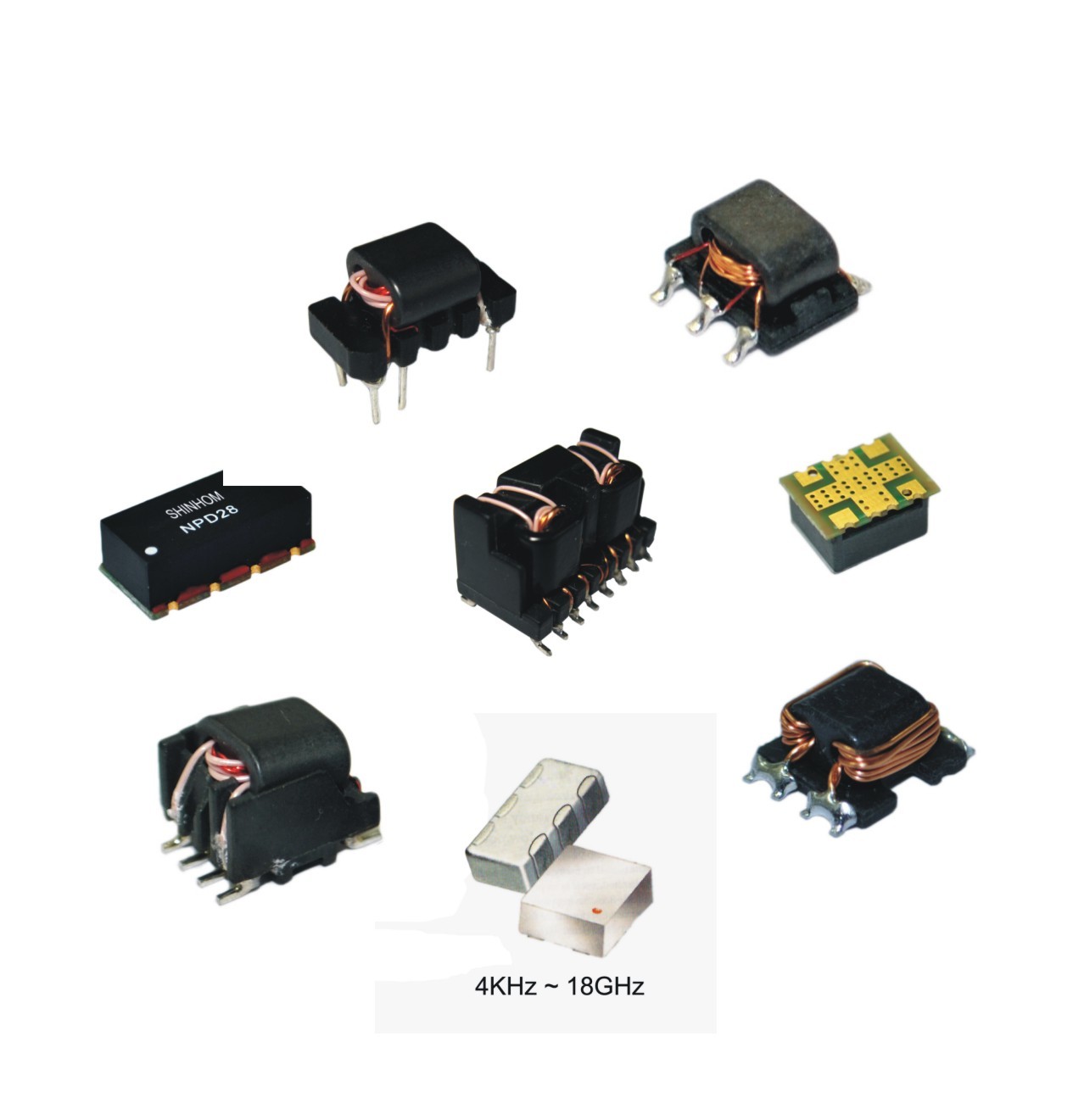

Balun transformers in various types
Matching power combining and splitting
Directional couplers
DOCSIS3.0/3.1 cable modem
